Xerox 8850 Service Manual

03/2003
5-28
8850/ 510DP
PL 9.6
Parts Lists

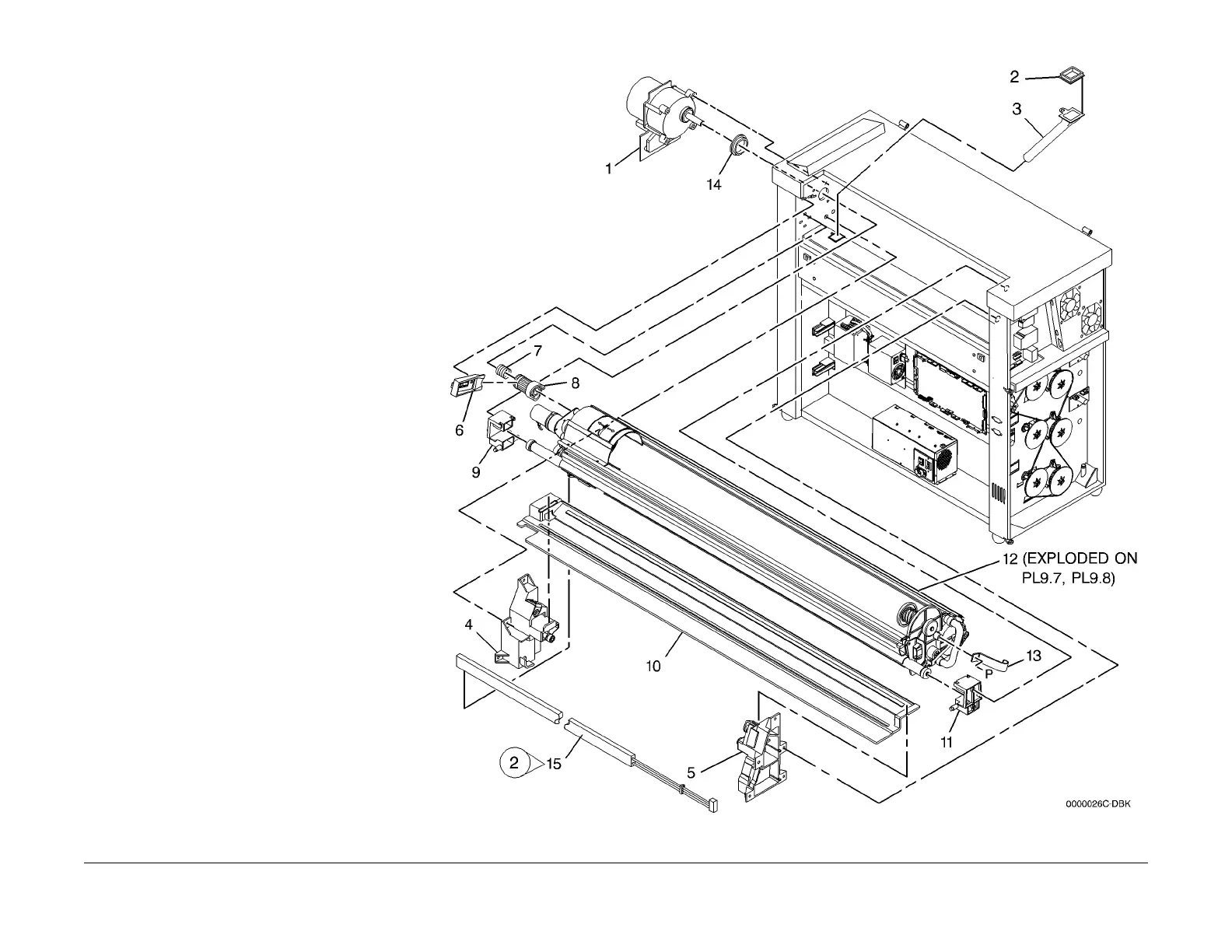

PL 9.6 Developer Module Assembly
Item Part Description
1 127E13620 Drum/Developer Drive Motor
2 035K05900 Gasket
3 – Trickle Waste Collection Tube (Not
Spared)
4 014K04740 Developer Support
5 014K04730 Developer Support
6 028E07771 Drive Gear/Coupling Retainer
7 009E41251 Coupling Spring
8 007E15351 Drive Gear/Coupling
9 030K56160 Developer Support
10 050E20871 Bead Tray
11 030K56150 Developer Support
12 121K25992 Developer Module Assembly (W/
TAG 2 , TAG 3) (REP 9.5, ADJ 9.3
ADJ 9.6)
13 – Clip (Not Spared)
14 016E16620 Bushing
15 126E02380 Heater (TAG 2)
