Xerox 8850 Service Manual

03/2003
4-122
8850/ 510DP
REP 10.4, REP 10.5
Repairs and Adjustments
4. (Figure 4): Remove the Stripper Fingers.

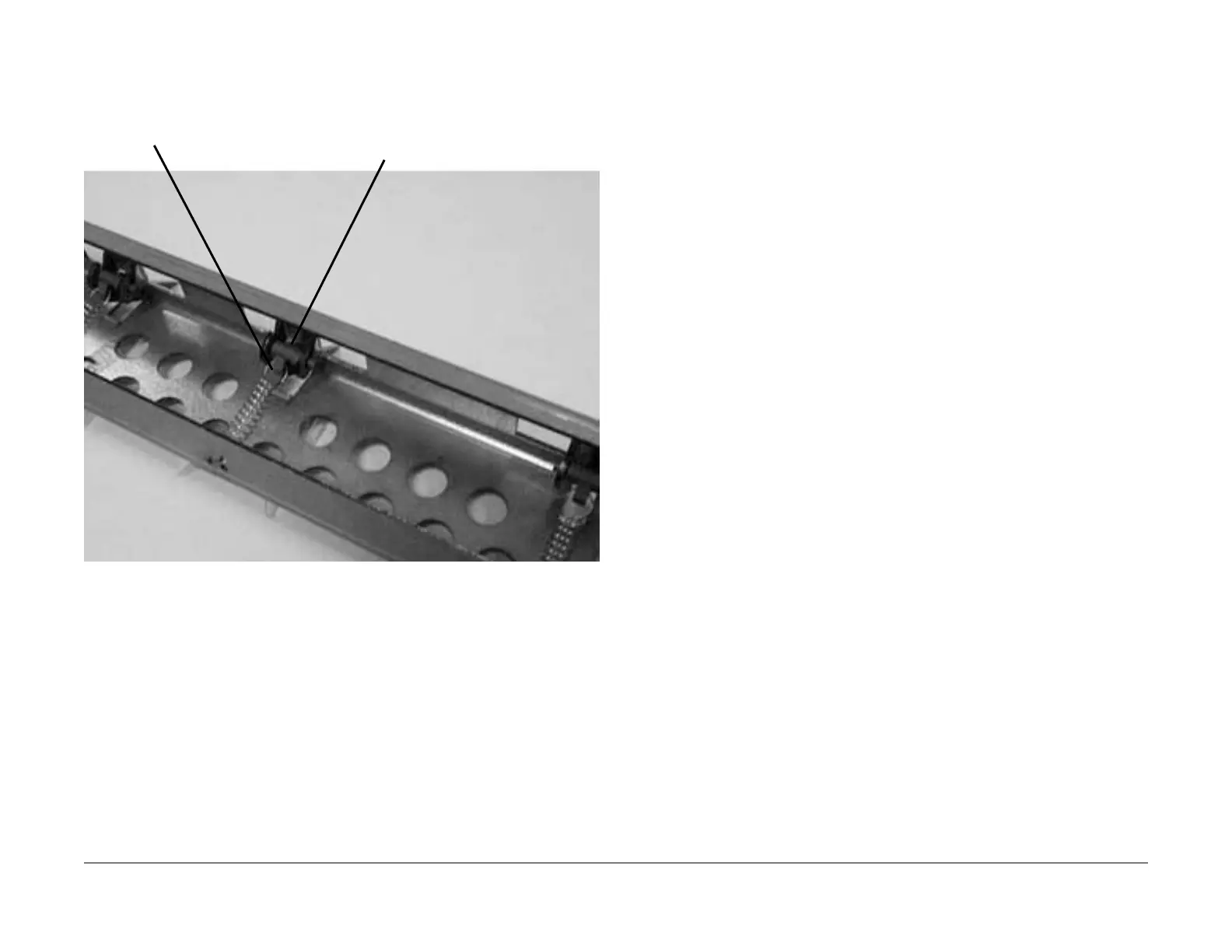

Figure 3 Removing the Stripper Finger
Replacement
CAUTION
Be careful not to damage the point of the fingers as they are being installed.
NOTE: The Stripper Fingers are spared as a kit that contains enough fingers to replace all of
them. Replace all of the fingers.
1. Replace ALL the Stripper Fingers on the Stripper Finger Assembly.
2. Reinstall the Stripper Finger Assembly on the Printer.
3. Reinstall the Web Oiler Assembly on the Printer.
4. Close the Fuser Drawer Cover, and slide the Fuser Assembly back into the Printer.
5. Return the Printer to normal operation.
REP 10.5 Web Oiler
Parts List on PL 10.5
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
WARNING
Wear protective gloves when handling parts with silicone oil on them. Do not allow sili-
cone oil to contact your eyes. Silicone oil can cause severe eye irritation. Wash your
hands immediately after handling any component covered with silicone oil.
Removal
NOTE: The Web Oiler Assembly can be secured upside-down on top of the Fuser Assembly to
work on it.
1. Remove the Web Oiler Assembly (REP 10.3) and place it upside-down on a flat surface.
2. (Figure 1): Remove the left side (non-drive side) grip ring.
2
Lift the Stripper Finger out of the
slots and remove
1
Remove the spring from the
Stripper Finger
