03/2003
4-111
8850/ 510DP
REP 10.1
Repairs and Adjustments
REP 10.1 Heat Rods, Edge (HR 1) and Center (HR 2)
Parts List on PL 10.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord. Allow the Fuser Assem-
bly to cool before the procedure is performed.
Removal

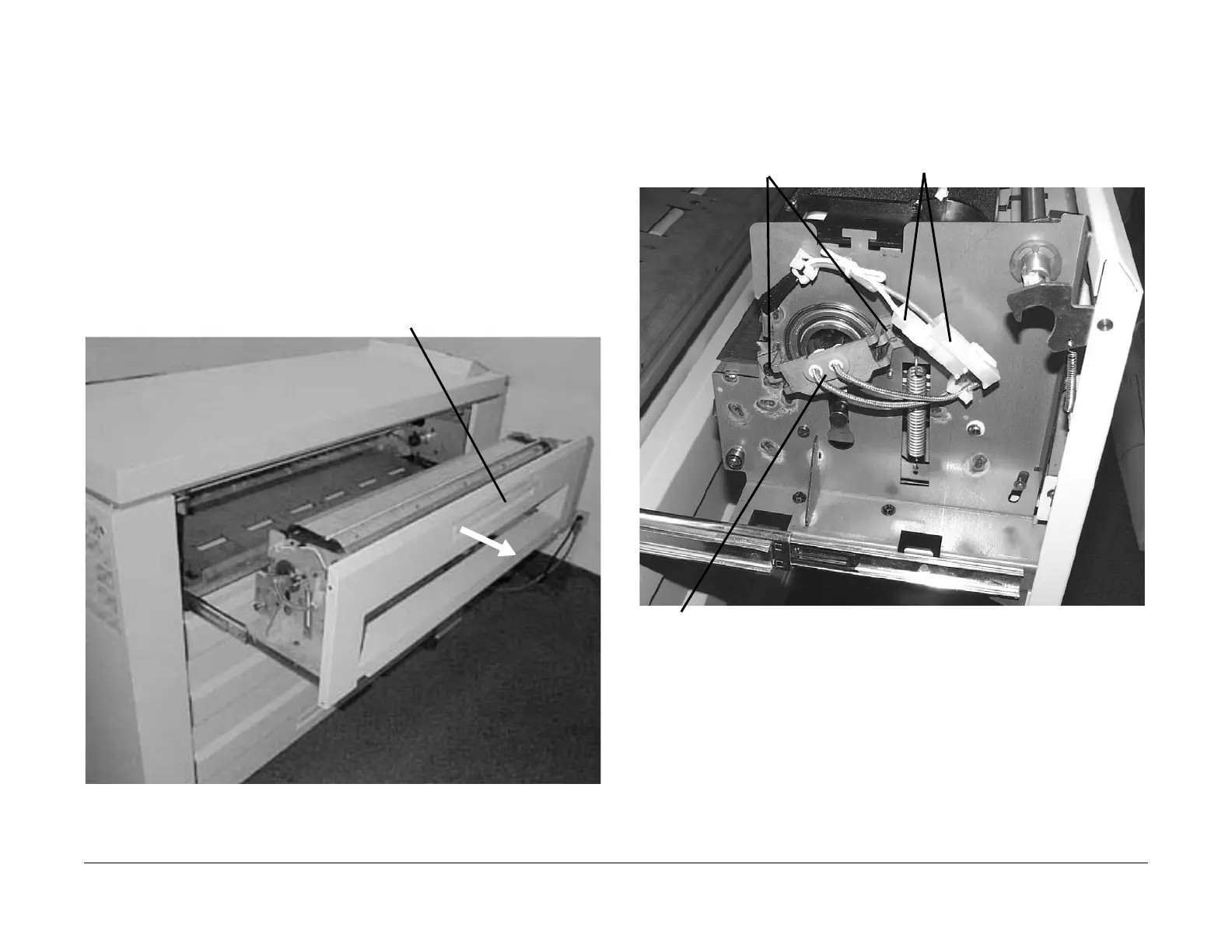

1. (Figure 1): Access the Fuser Module.
Figure 1 Accessing the Fuser Module
NOTE: In the following steps, the terms “Left” and “Right” describe machine locations as
observed from the Roll Media Supply Drawer side of the Printer.
2. (Figure 2): Disconnect the Heat Rod and remove the bracket (Left side).
Figure 2 Removing the Bracket (Left side)
1
Pull up on the handle and pull open
the Fuser Module Drawer
1
Disconnect the two Heat Rod
Connectors
2
Remove the Heat Rod Sup-
port Bracket (2 screws)
4
Carefully remove the two Heat Rods
from the rubber grommet
3
Remove the rubber grommet from
the Heat Rod Support Bracket
To Next Page
