REP 7.12 Encoder Disk
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. Remove the Rewind Clutch (REP 7.6).
3. (Figure 1): Remove the Encoder Disk.

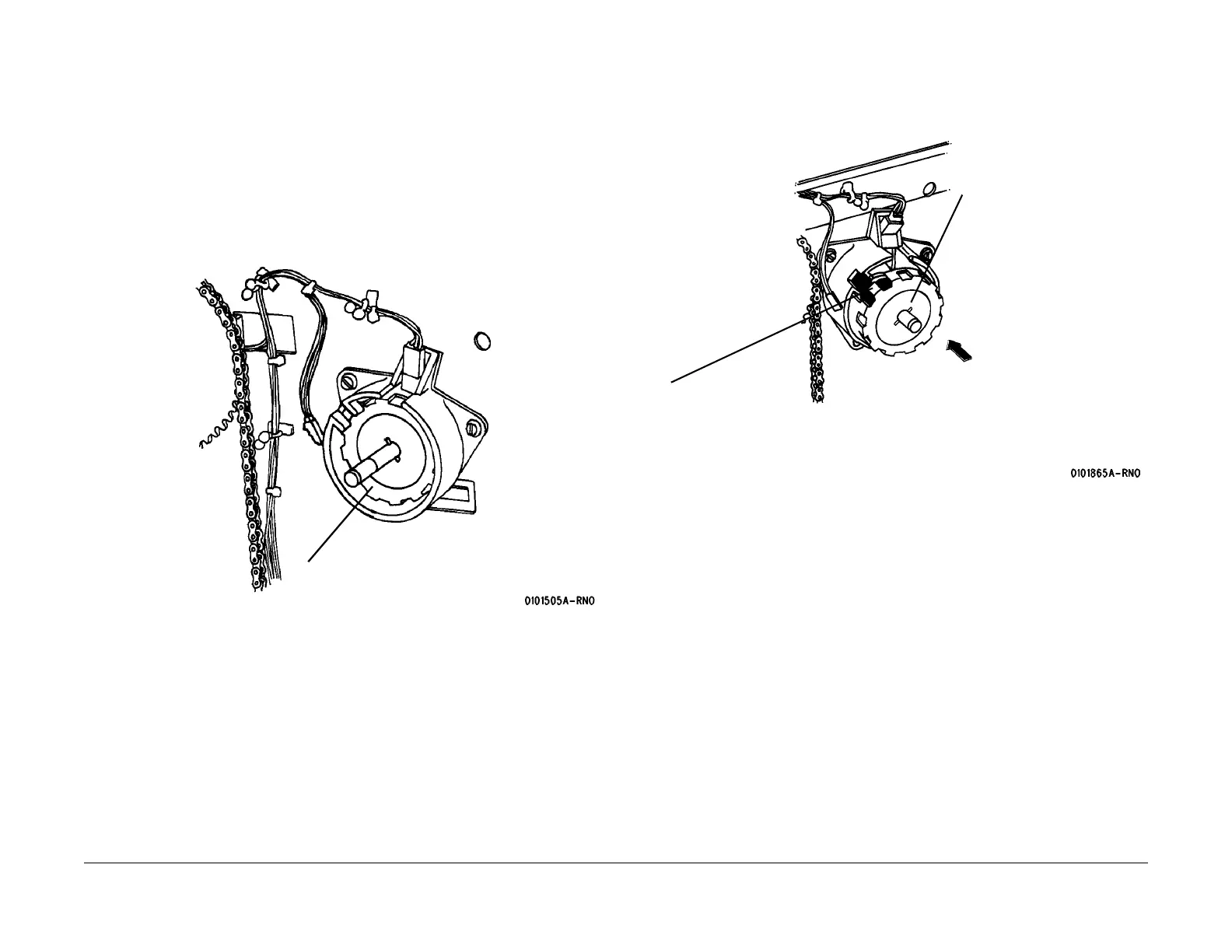

Figure 1 Removing the Encoder Disk
Replacement
1. Reinstall the Motion Sensor and the Rewind Housing.
2. (Figure 2): Reinstall the Encoder Disk.
Figure 2 Reinstalling the Encoder Disk
1
Remove the Encoder
1
Align the open slot in the
Encoder Disk with the
opening in the housing
2
Reinstall the
Encoder Disk
3
Ensure that the slot in the
Encoder Disk aligns with
the pin in the shaft
To Next Page
