03/2003
4-37
8850/ 510DP
REP 8.7
Repairs and Adjustments
REP 8.7 Sheet Feed Drive Roll
Parts List on PL 10.7
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
NOTE: In the following steps, the terms “Left” and “Right” describe machine locations as
observed when facing the Printer from the Roll Media Supply Drawer side of the Printer.
1. Remove the Lower Sheet Feed Assembly. Perform REP 8.1 Lower Sheet Feed Assem-
bly.
2. (Figure 1): Remove the Vacuum Baffles from the Lower Sheet Feed Assembly.

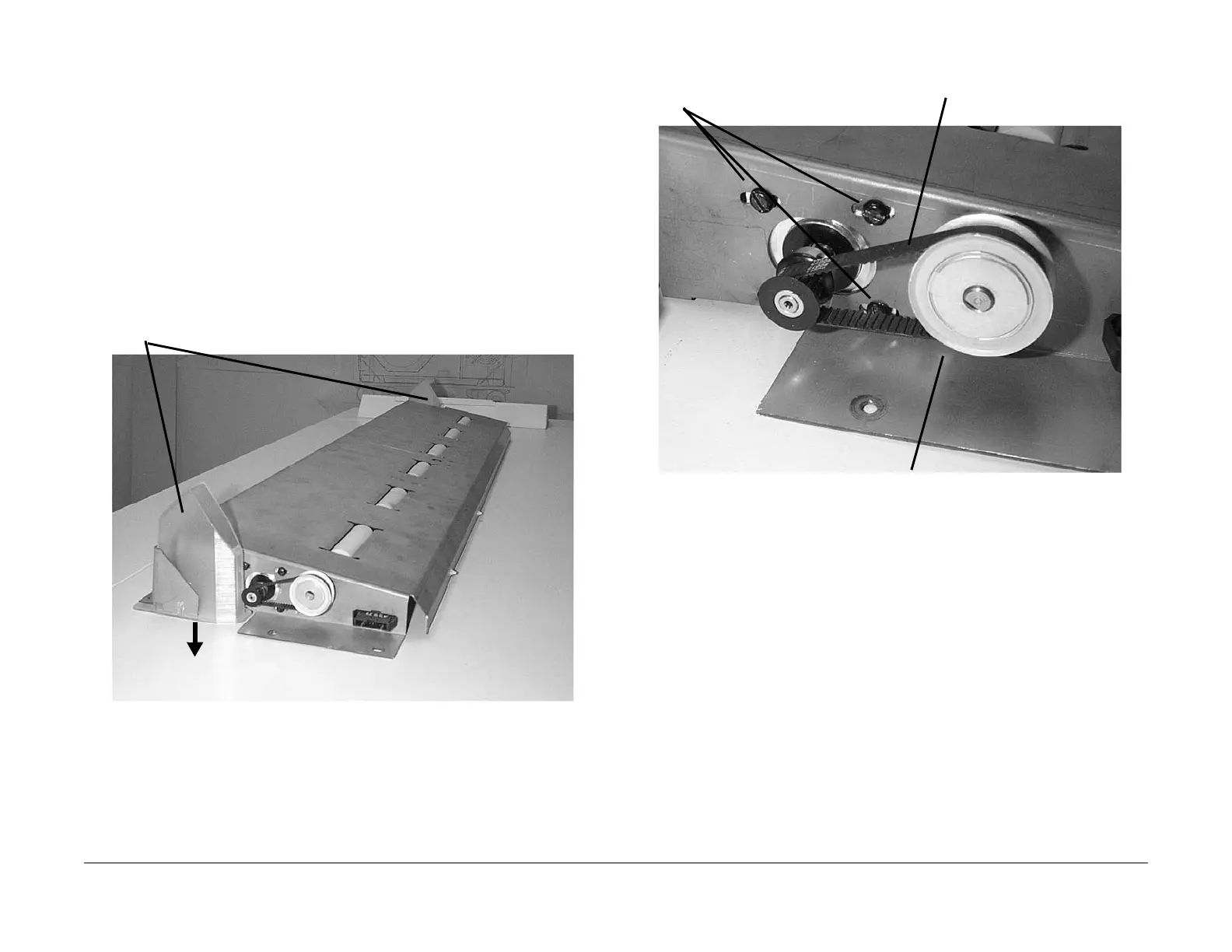

Figure 1 Removing the Vacuum Baffles
3. (Figure 2): Remove the Sheet Feed Drive Roll Gear.
Figure 2 Removing the Sheet Drive Roll Gear
1
Slide the baffles downward and out of the
Lower Sheet Feed Assembly
3
Loosen the two set screws on the side
of the Sheet Feed Drive Roll Gear
4
Slide the gear off the shaft
1
Loosen the four motor mount screws
2
Remove the drive belt
To Next Page
