REP 7.5
Repairs and Adjustments
REP 7.5 Feed Clutch
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. (Figure 1): Remove the Feed Clutch.

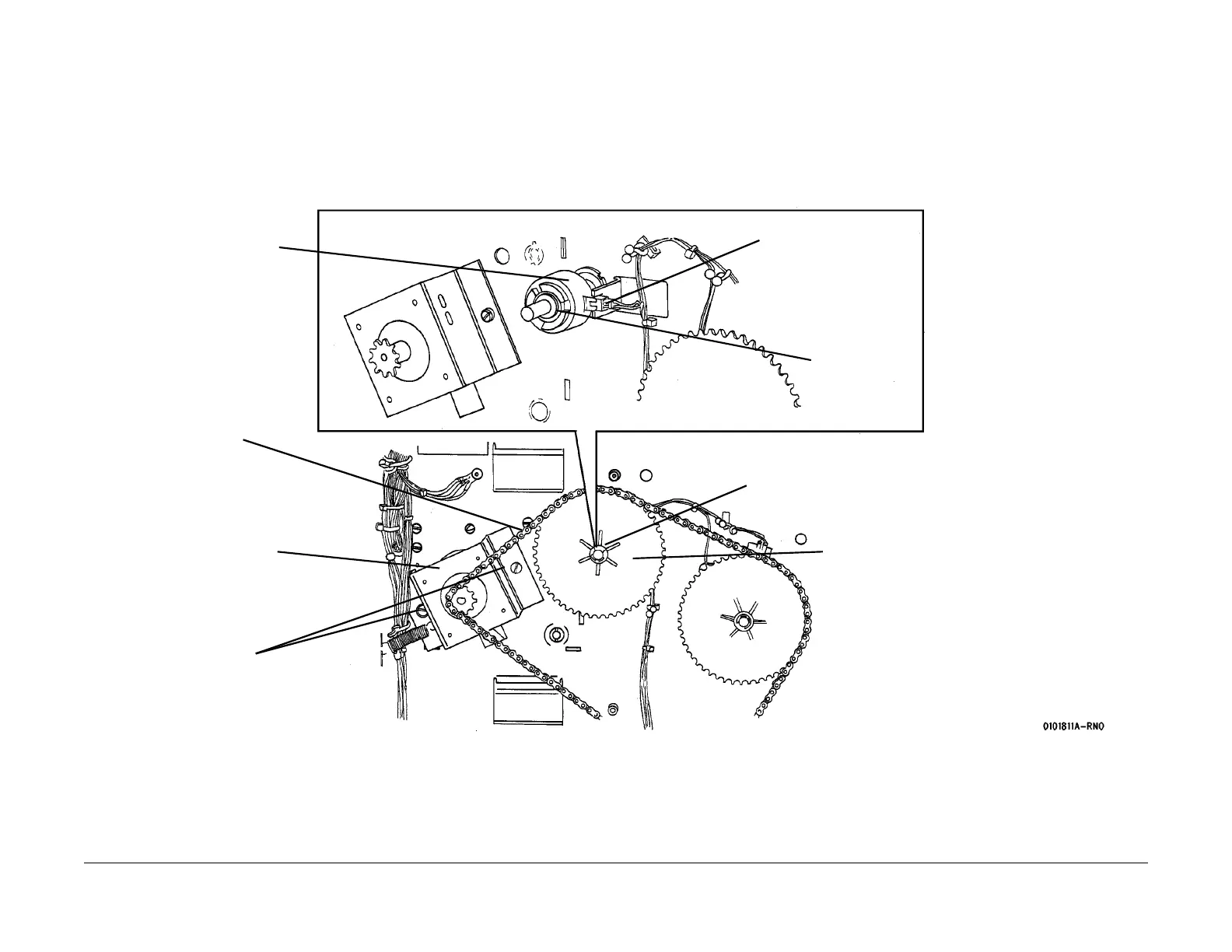

Figure 1 Removing the Feed Clutch
4
Remove the E-Ring
1
Loosen the screws (2)
2
Move the Motor Bracket to
relieve the tension on the
chain
3
Remove the chain
5
Remove the sprocket
6
Disconnect the connector
7
Remove the
E-Ring
8
Remove the Feed Clutch
