REP 10.2
Repairs and Adjustments
REP 10.2 Fuser Heat Roll
Parts List on PL 10.2
Removal
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord. Allow the Fuser Assem-
bly to cool before the procedure is performed.

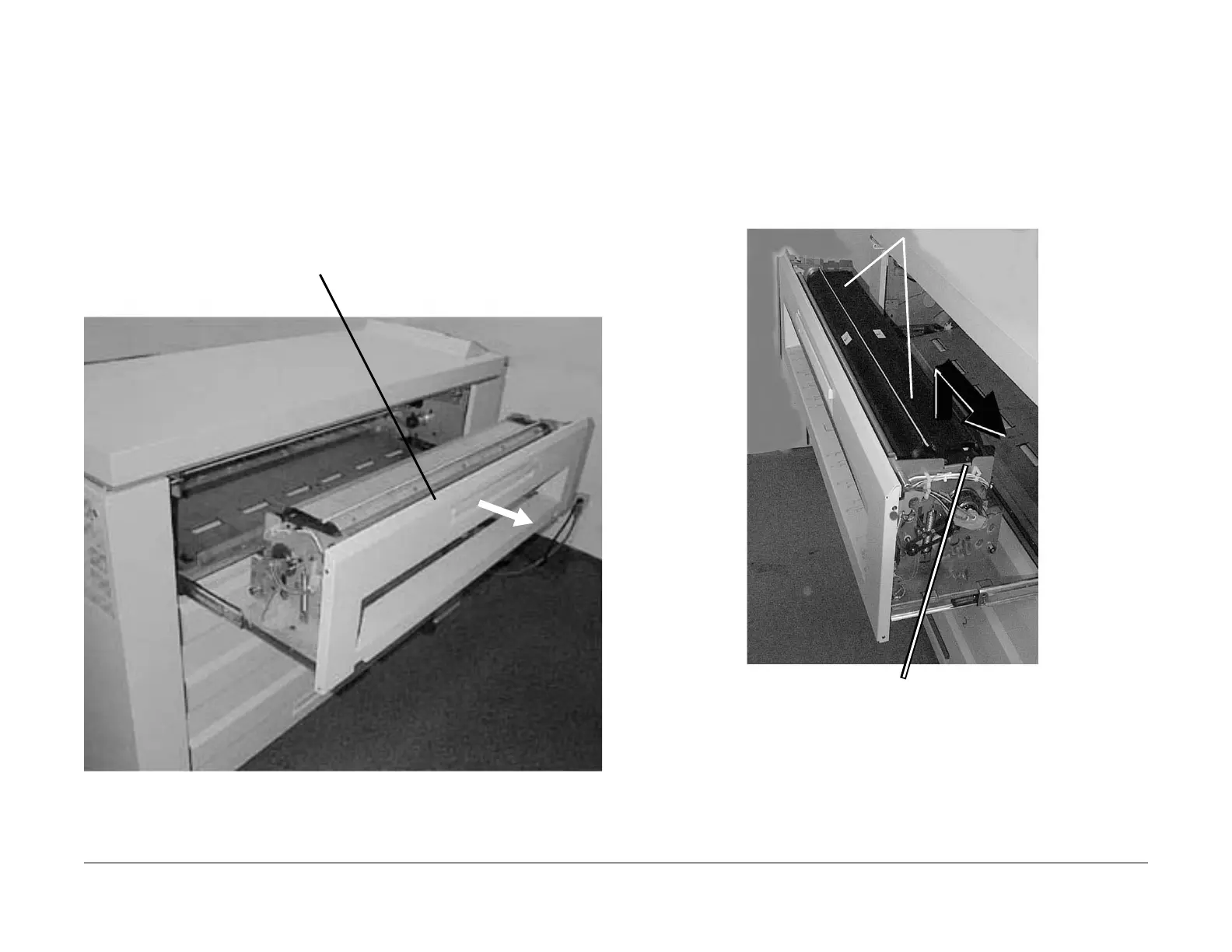

1. (Figure 1): Access the Fuser Module.
Figure 1 Accessing the Fuser Module
2. Remove the Heat Rods (REP 10.1).
WARNING
Wear protective gloves when handling parts with silicone oil on them. Do not allow sili-
cone oil to contact your eyes. Silicone oil can cause severe eye irritation. Wash your
hands immediately after handling any component covered with silicone oil.
3. (Figure 2): Remove the Web Oiler Assembly.
Figure 2 Removing the Web Oiler Assembly
1
Pull up on the handle and pull open the
Fuser Module Drawer
1
Remove the two right side screws
2
Slightly lift the Oil Assembly and move to
the right to clear the left side tabs
