03/2003
5-9
8850/ 510DP
PL 1.3
Parts Lists

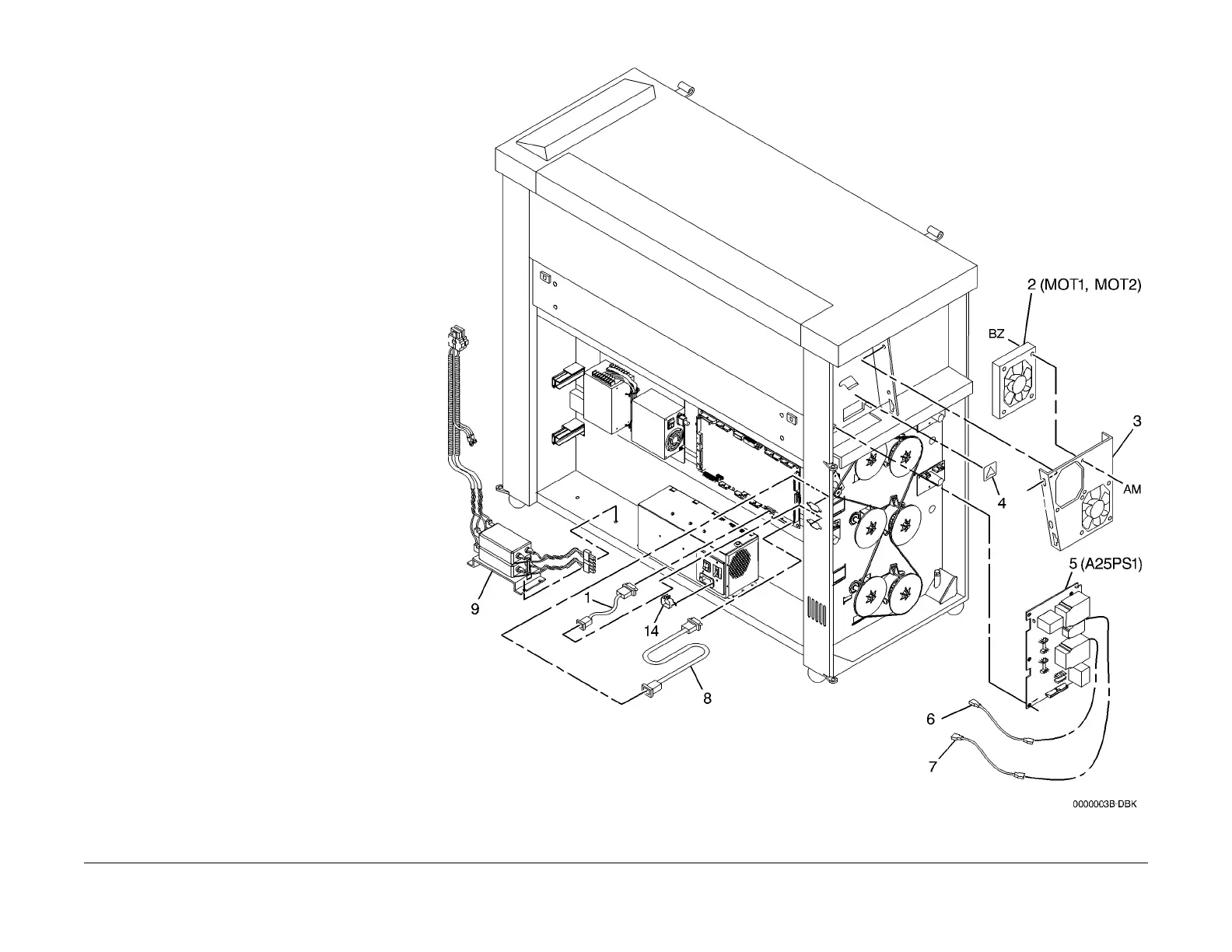

PL 1.3 DC Electrical Components
Item Part Description
1 – Harness (Not Spared)
2 127E11240 Cooling Fan Motor (MOT1, MOT2)
3 054K12300 Fan Duct
4 – Charge Corotron Label (Red Arrow)
(Not Spared)
5 105E15364 High Voltage Power Supply
(A25PS1) (W/TAG 6) (REP 3.2,
ADJ 9.2)
6 117K39571 Detack Corotron Harness
7 117K39582 Transfer Corotron Harness
8 – Folder Enablement Harness (Not
Spared)
9 101K44430 Filter Assembly
14 019E52800 Clamp
