Xerox 8850 Service Manual

03/2003
5-33
8850/ 510DP
PL 10.1
Parts Lists

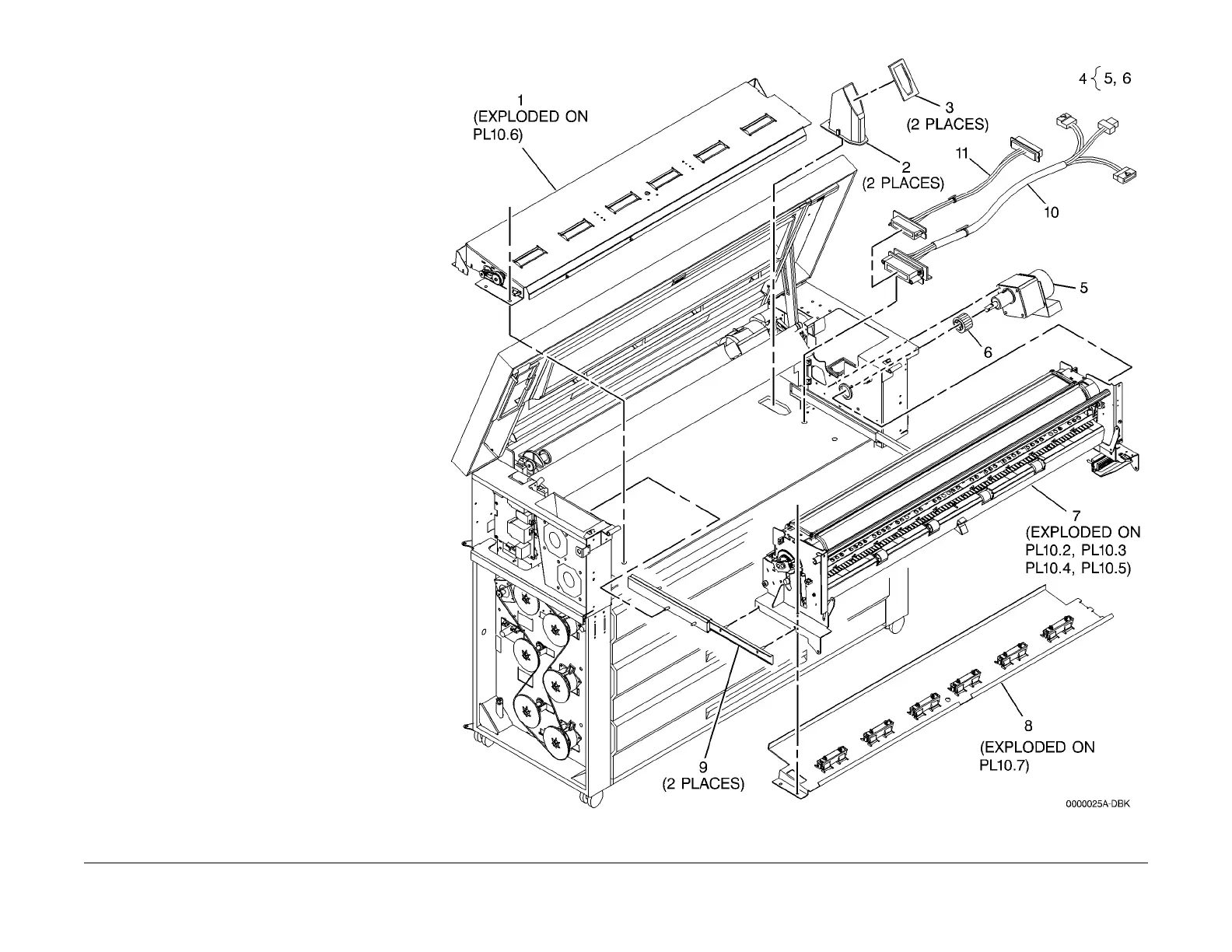

PL 10.1 Two Roll Fuser Assembly
Item Part Description
1 059K35070 Upper Sheet Feed Drive Assembly
(510dp)
– 055K32730 Upper Sheet Feed Drive Assembly
(8850)
2 054E21440 Vacuum Duct
3 035E64770 Gasket
4 127K41541 Fuser Motor Assembly (ADJ 10.3)
5 – Fuser Motor (P/O PL 10.1 Item 4)
6 – Fuser Drive Gear (P/O PL 10.1
Item 4)
7 – Two Roll Fuser Assembly (Not
Spared)
8 059K27880 Lower Sheet Feed Assembly (8850)
(REP 8.1)
– 055K34360 Lower Sheet Feed Assembly
(510dp) (REP 8.1)
9 010K03380 Fuser Slide
10 962K00640 Fuser Main Frame Harness
11 962K02830 Fuser Service Harness (NOTE:
Service Diagnostic Tool)
