Xerox 8850 Service Manual

03/2003
4-129
8850/ 510DP
REP 10.7, REP 10.8
Repairs and Adjustments
4. (Figure 3): Remove the Edge (RT 2) or (RT 3) Thermistor.

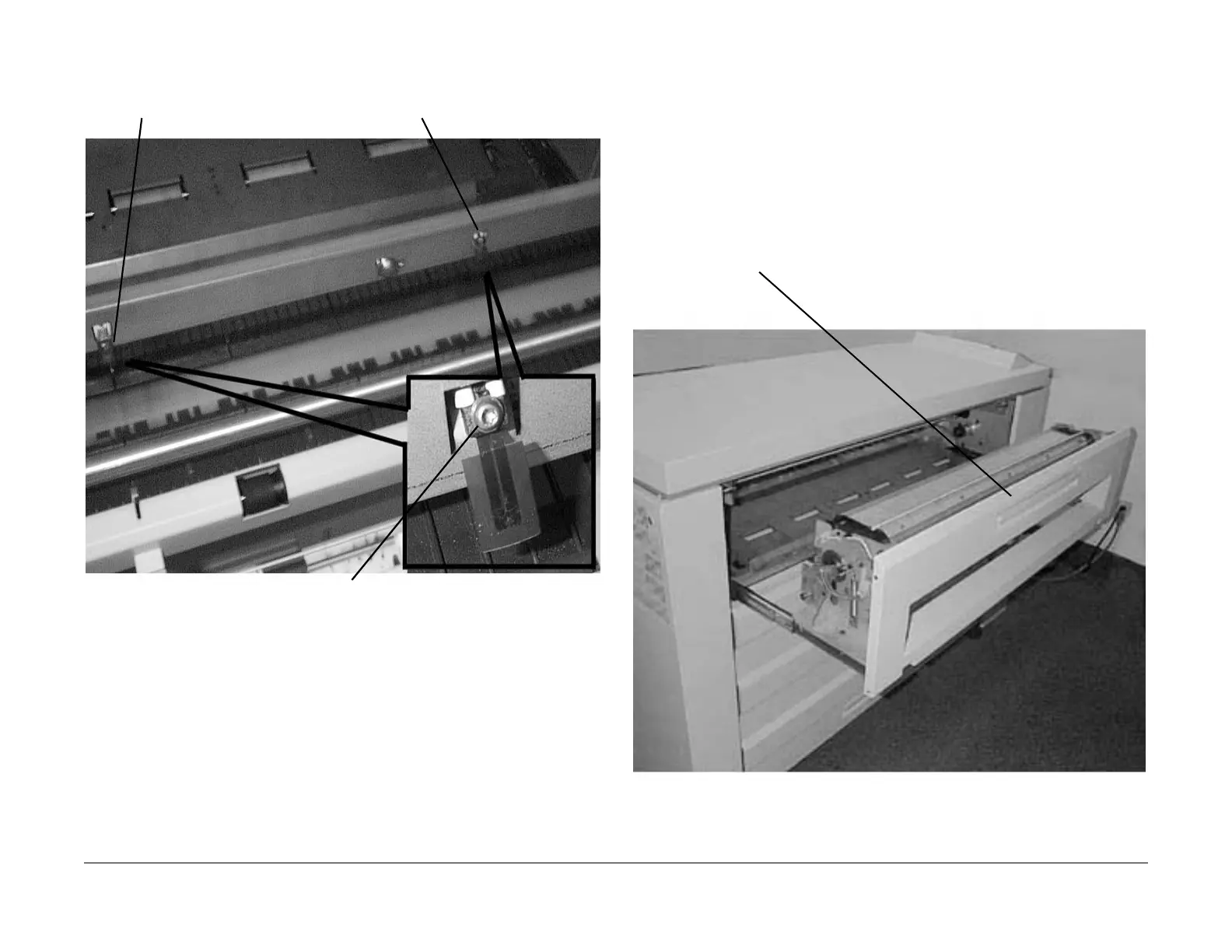

Figure 3 Removing the Edge or Center Thermistor
REP 10.8 Pressure Roll
Parts List on PL 10.4
Removal
NOTE: In following procedure the terms “left” and “right” describe machine locations as
observed from the Roll Media Supply Drawer side of the Printer.
1. (Figure 1): Access the Fuser.
Figure 1 Accessing the Fuser
1
Remove the screw, disconnect the con-
nector and remove the Thermistor
C
en
t
er
Th
erm
i
s
t
or
(RT 3)
Edge Thermistor
(RT 2)
1
Pull up on the handle and pull open the
Fuser Module Drawer.
