03/2003
4-10
8850/ 510DP
REP 7.1, REP 7.2
Repairs and Adjustments

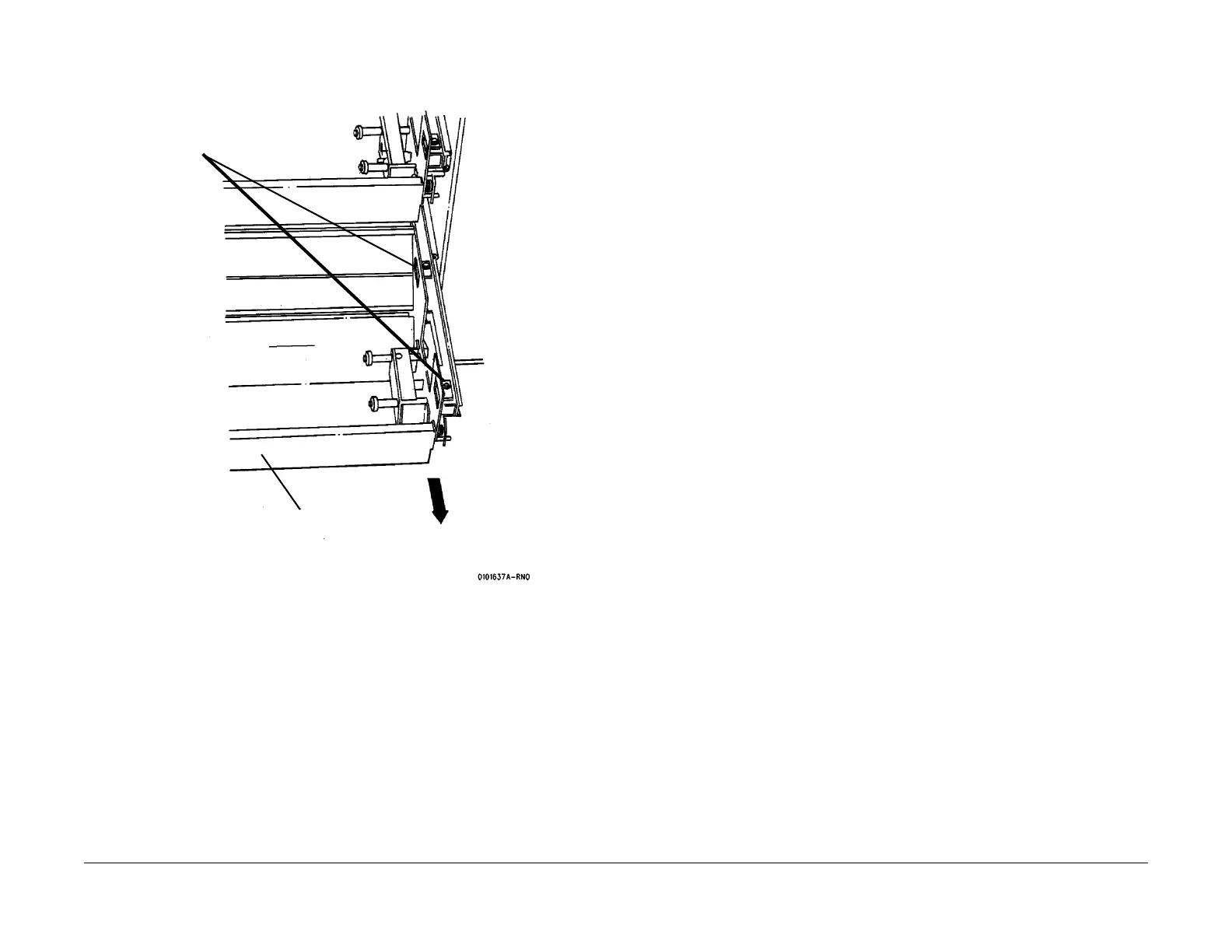

Figure 2 Removing the Roll Media Supply Drawer
REP 7.2 Rewind Gear and Rewind Internal Gear
Parts List on PL 7.3
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: All three Rewind Gears and Rewind Internal Gear Assemblies are removed the same
way.
Removal
1. Pull out the Roll Media Supply Drawer.
2. Remove the roll of media.
3. (Figure 1): Remove the Rewind Gear and the Rewind Internal Gear.
1
Remove the screws (two at
each end)
2
Remove the Roll Media
Supply Drawer
To Next Page
