03/2003

5-24

8850/ 510DP

PL 9.2

Parts Lists

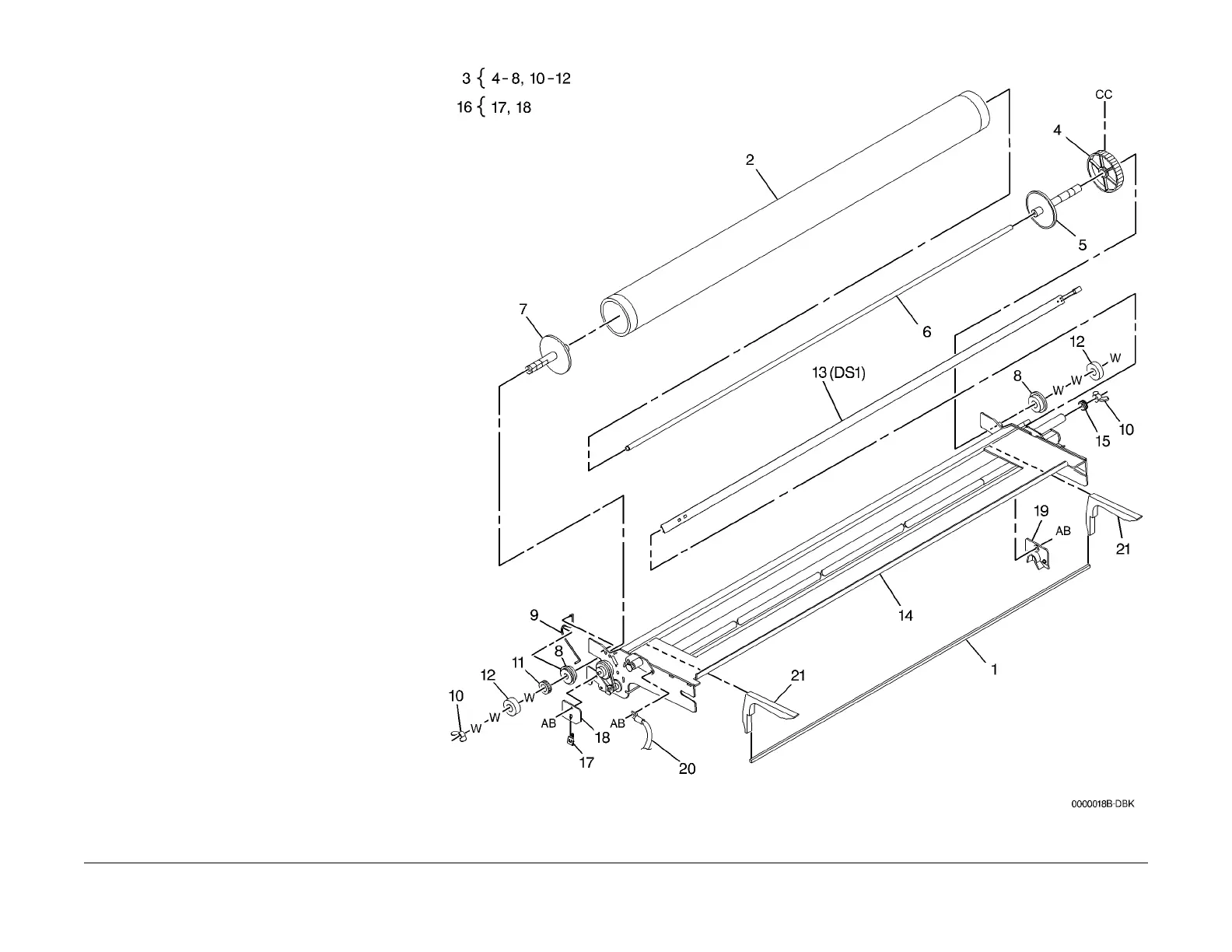

PL 9.2 Photoreceptor

Item Part Description

1 055E48470 NOHAD Air Seal

2 001R00535 Photoreceptor Drum (REP 9.2 REP

9.3)

3 006K26690 Shaft Assembly

4 – BTR Gear (P/O PL 9.2 Item 3)

5 – Right Hub (P/O PL 9.2 Item 3)

6 – Shaft (P/O PL 9.2 Item 3)

7 – Left Hub (P/O PL 9.2 Item 3)

8 – Bearing (P/O PL 9.2 Item 3)

9 – Bearing Retainer (P/O PL 9.1 Item

10 – Wing Nut (P/O PL 9.2 Item 3)

11 007E01340 Toner Auger Drive Gear

12 – Bearing (P/O PL 9.2 Item 3)

13 101K43880 Erase Bar (DS1)

14 – Xerographic Frame (P/O PL 9.1

Item 6)

15 004E10130 Damper

16 013K03791 Non-Drive Bearing Assembly

17 115E11571 Contact

18 – Non-Drive Bearing (P/O PL 9.2

Item 16)

19 013E21510 Drive Bearing

20 117K40130 Ground Strap

21 035E64440 NOHAD Air Seal

Xerox 8850 Service Manual
