03/2003
5-44
8850/ 510DP
PL 14.5
Parts Lists

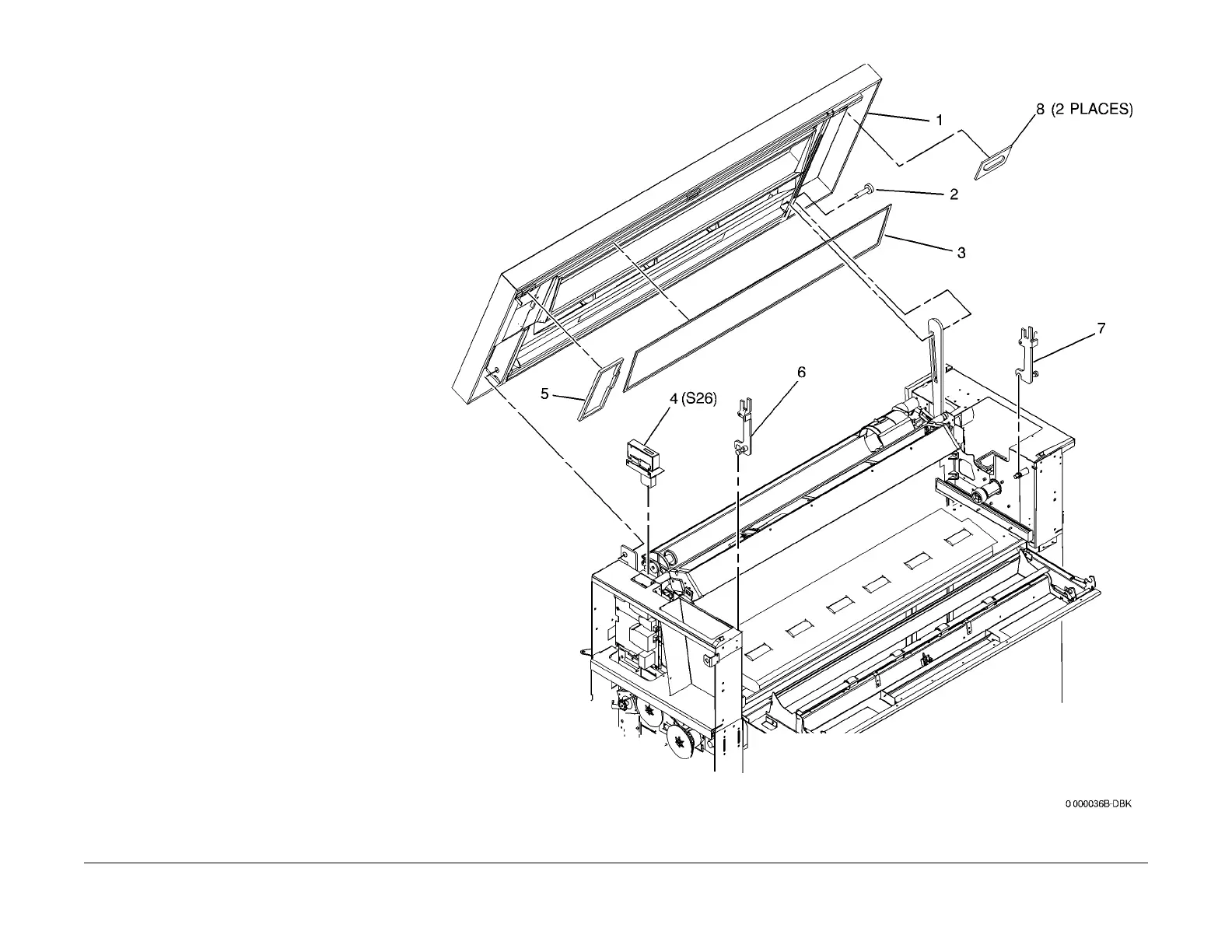

PL 14.5 Top Cover and Catch Tray
Brackets
Item Part Description
1 802K40200 Top Cover (REP 14.1)
2 029E23670 Pin
3 035E37240 Gasket (8850)
– 035E64660 Gasket (510dp)
4 110K08970 Top Cover Interlock Switch (S26)
5 035E41150 Gasket
6 030K79860 Right Service Bracket (510p)
– 030K57191 Right Service Bracket (8850)
7 030K57181 Left Service Bracket
8 055E38100 Shielding Pad
