Xerox 8850 Service Manual

03/2003
4-40
8850/ 510DP
REP 8.8, REP 8.12
Repairs and Adjustments
REP 8.8 Media Registration Sensor
Parts List on PL 8.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove the Media Transport Module. Perform REP 8.2 Media Transport Module.
2. (Figure 1): Remove the Media Registration Sensor from the rear of the Media Transport
Module.

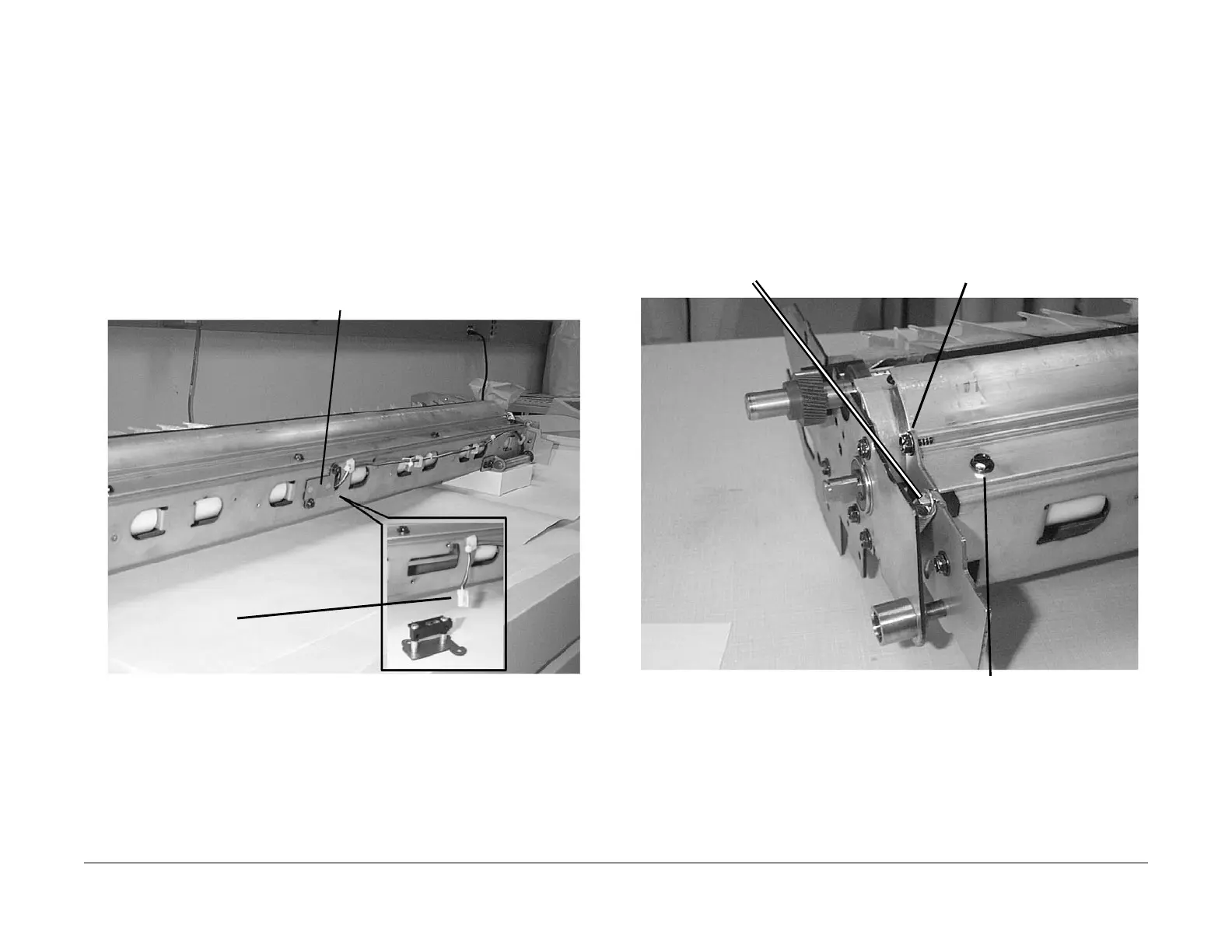

Figure 1 Removing the Media Registration Sensor
REP 8.12 Registration Pinch Rolls
Parts List on PL 8.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove the Media Transport Module. Perform REP 8.2 Media Transport Module.
2. (Figure 1): Standing at the rear of the Media Transport Module, remove the Baffle.
Figure 1 Removing the Baffle
1
Remove the two screws and lift the
mounting bracket from the Media
Transport Module
2
Disconnect the
connector
1
Remove the two springs
(one at each end)
2
Remove the two screws
(one at each end)
3
Remove the five screws
on Baffle
4
Lift the Baffle off the Media Transport
Module
