Xerox 8850 Service Manual

03/2003
5-19
8850/ 510DP
PL 7.8
Parts Lists

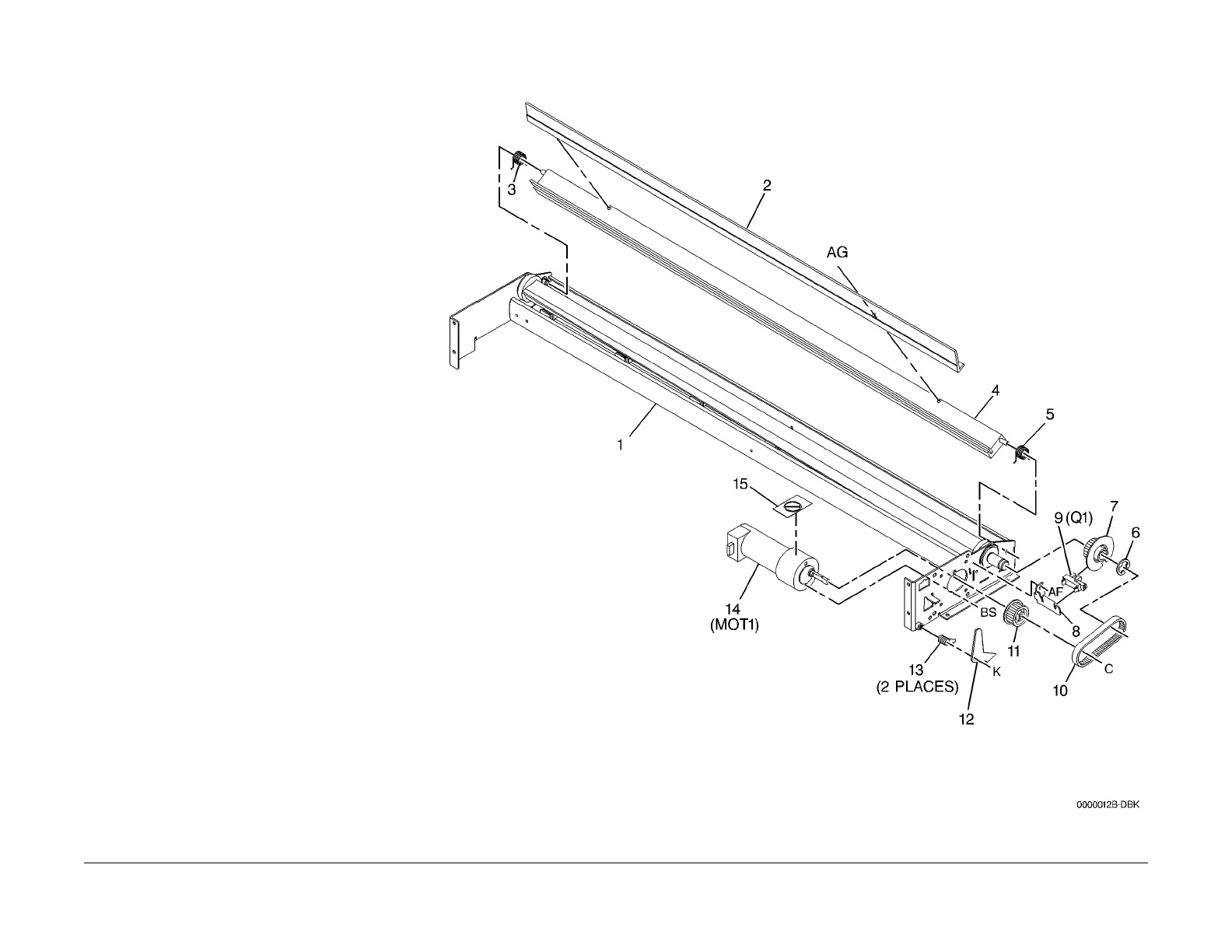

PL 7.8 Media Cutter Components
Item Part Description
1 – Media Cutter Frame (P/O PL 7.7
Item 1)
2 – Media Exit Guide (P/O PL 7.7 Item
1)
3 009E30860 LH Blade Spring
4 – Cutter Stationary Bar (P/O PL 7.7
Item 1)
5 009E30870 RH Blade Spring
6 028E07430 Retaining Ring
7 020E18830 Cutter Drive Pulley (34T)
8 – Sensor Bracket (P/O PL 7.7 Item 1)
9 130K66730 Cutter Home Sensor (Q1) (REP
8.14)
10 423W57550 Drive Belt
11 – Drive Pulley (34T) (P/O PL 7.7 Item
1)
12 003E16521 Cutter Latch
13 009E27340 Latch Spring
14 127K26580 Cutter Drive Motor (MOT1) (ADJ
8.3)
15 – Label (Hand Cut Caution) (Not
Spared)
