03/2003
4-151
8850/ 510DP
ADJ 9.5
Repairs and Adjustments
ADJ 9.5 Toner Cartridge Home Sensor
Purpose
The purpose is to set the Toner Cartridge Home Sensor to the correct distance from the mag-
net on the Toner Cartridge.
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Check
1. Remove the Developer Module (REP 9.5).
2. Remove the Cartridge Drive Plate (REP 9.14).
3. (Figure 1): Ensure that the tip of the Toner Cartridge Home Sensor is 2.5 (+/- 0.5) mm
from the plate.

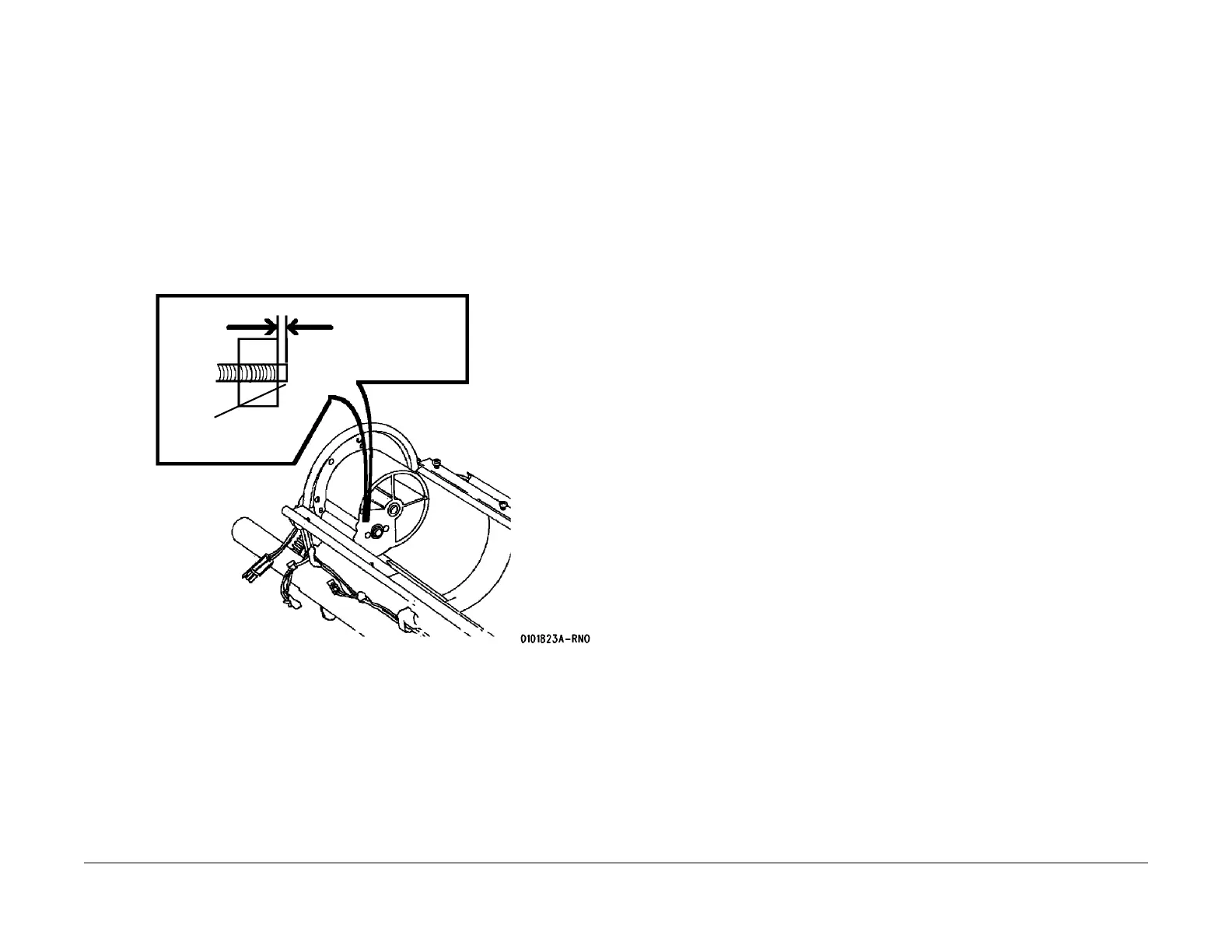

Figure 1 Checking the Position of the Toner Cartridge Home Sensor
2.5 +/- 0.5 mm
Toner Cartridge
Home Sensor
To Next Page
