03/2003
5-38
8850/ 510DP
PL 10.6
Parts Lists

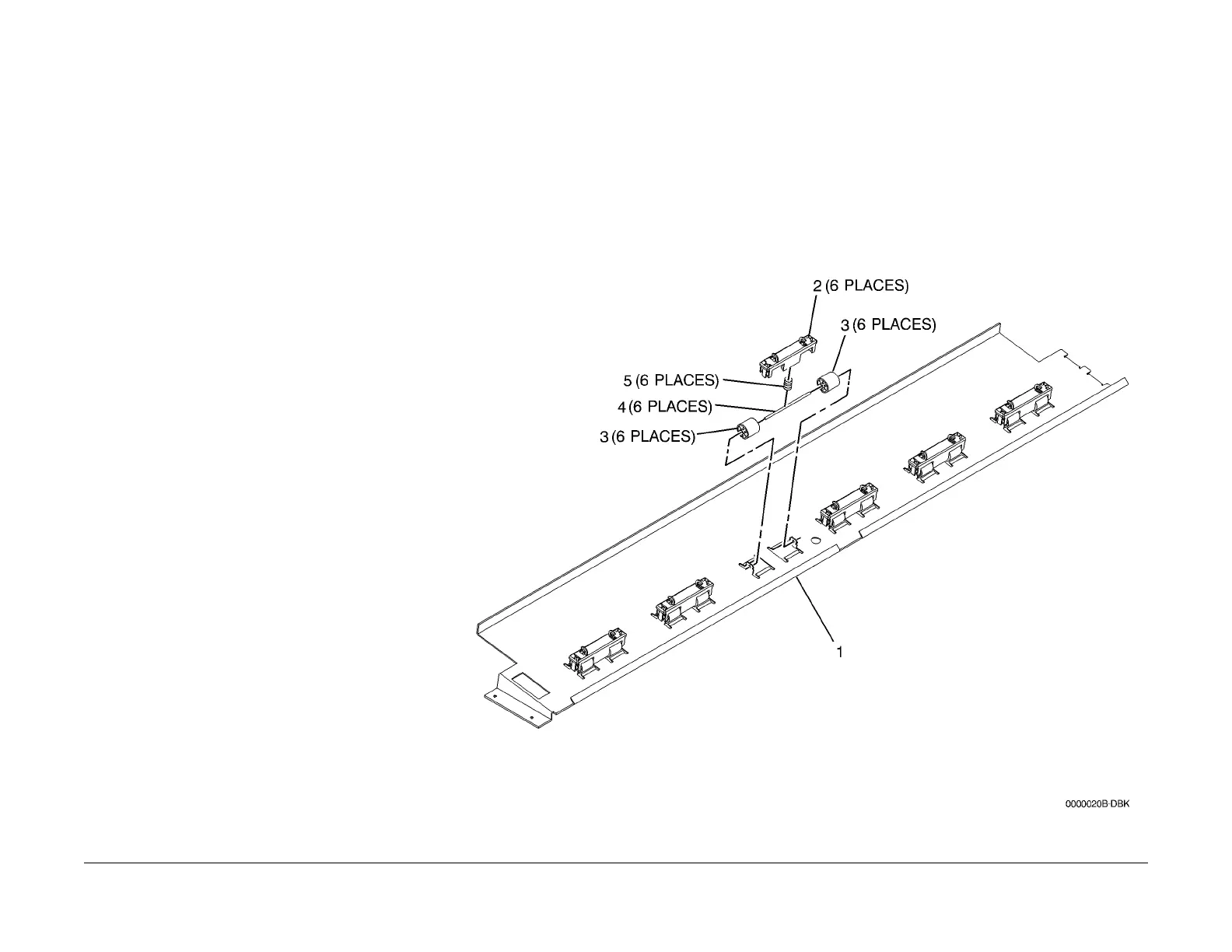

PL 10.6 Upper Sheet Feed
Components
Item Part Description
1 – Upper Sheet Feed Housing (P/O
PL 10.1 Item 1)
2 – Retainer Housing (P/O PL 10.1
Item 1)
3 – Sheet Feed Pinch Roll (P/O PL
10.1 Item 1) (REP 7.14)
4 – Shaft (P/O PL 10.1 Item 1)
5 – Spring (P/O PL 10.1 Item 1)
