03/2003
5-11
8850/ 510DP
PL 1.5
Parts Lists

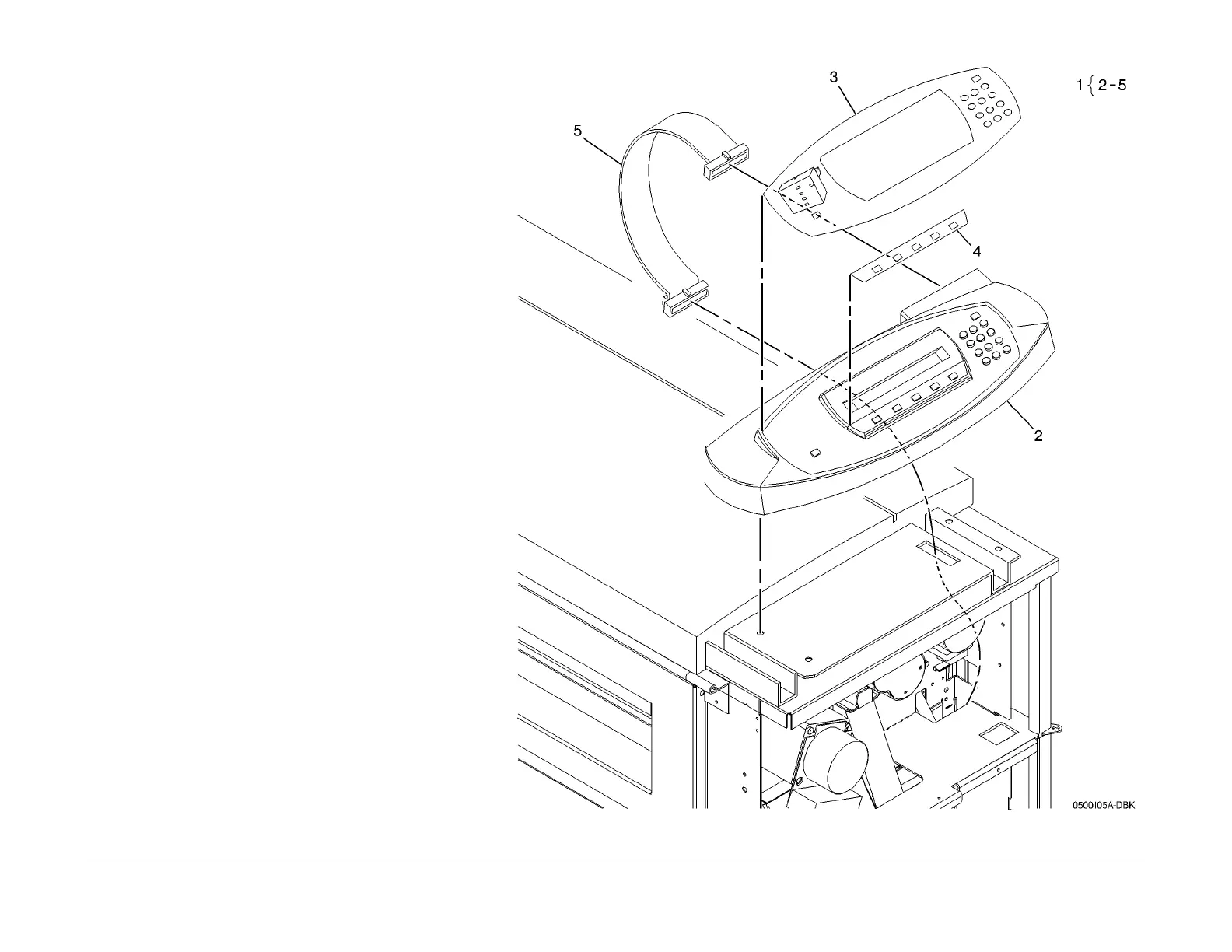

PL 1.5 Control Panel (510dp)
Item Part Description
1 101K48841 Control Panel Assembly (REP 3.3)
2 – Control Panel (P/O PL 1.5 Item 1)
3 892E94680 UI Label
4 892E94690 UI Button Label
5 162K23421 Control Console to Main PWB (A3)
