03/2003
4-105
8850/ 510DP
REP 9.23
Repairs and Adjustments
REP 9.23 Drum Encoder Assembly
Parts List on PL 9.1
WARNING
Switch off the Controller and the Printer Main Power Switches. Disconnect the Printer
Power Cord.
Removal
1. Open the Printer Top Cover. Perform REP 14.1 Top Cover.

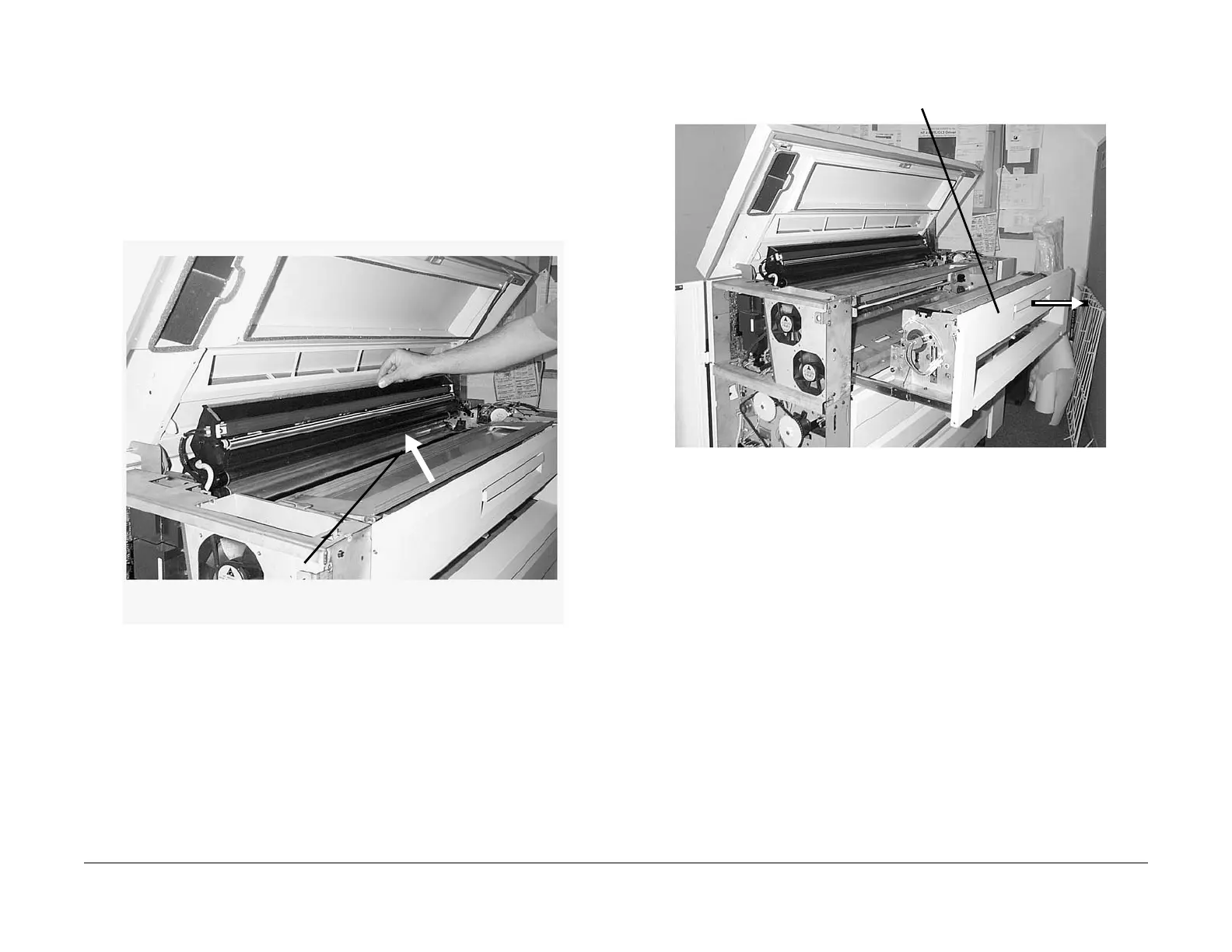

2. (Figure 1): Lift the Printer Image Module.
Figure 1 Lifting the Image Module
3. (Figure 2): Pull open the Fuser Drawer.
Figure 2 Partially Extending the Fuser Drawer
4. (Figure 3): Release the spring tension on the brackets located at either end of the Xero-
graphic Module.
1
Lift Image Module to fully opened
position
1
Lift the latch and pull out the Fuser Drawer
about 12 inches (30 cm)
To Next Page
