Xerox 8850 Service Manual

03/2003
4-48
8850/ 510DP
REP 8.16
Repairs and Adjustments
REP 8.16 Media Exit Drive Roll
Parts List on PL 10.4
WARNING
Switch off the Main Power Switch. Disconnect the power cord.
NOTE: In the following steps, the terms “Left” and “Right” describe machine locations as
observed when facing the Printer from the Roll Media Supply Drawer side.
1. Open the Fuser Drawer (located above media drawers).
2. (Figure 1): Release the latches at the top of the Fuser Module.

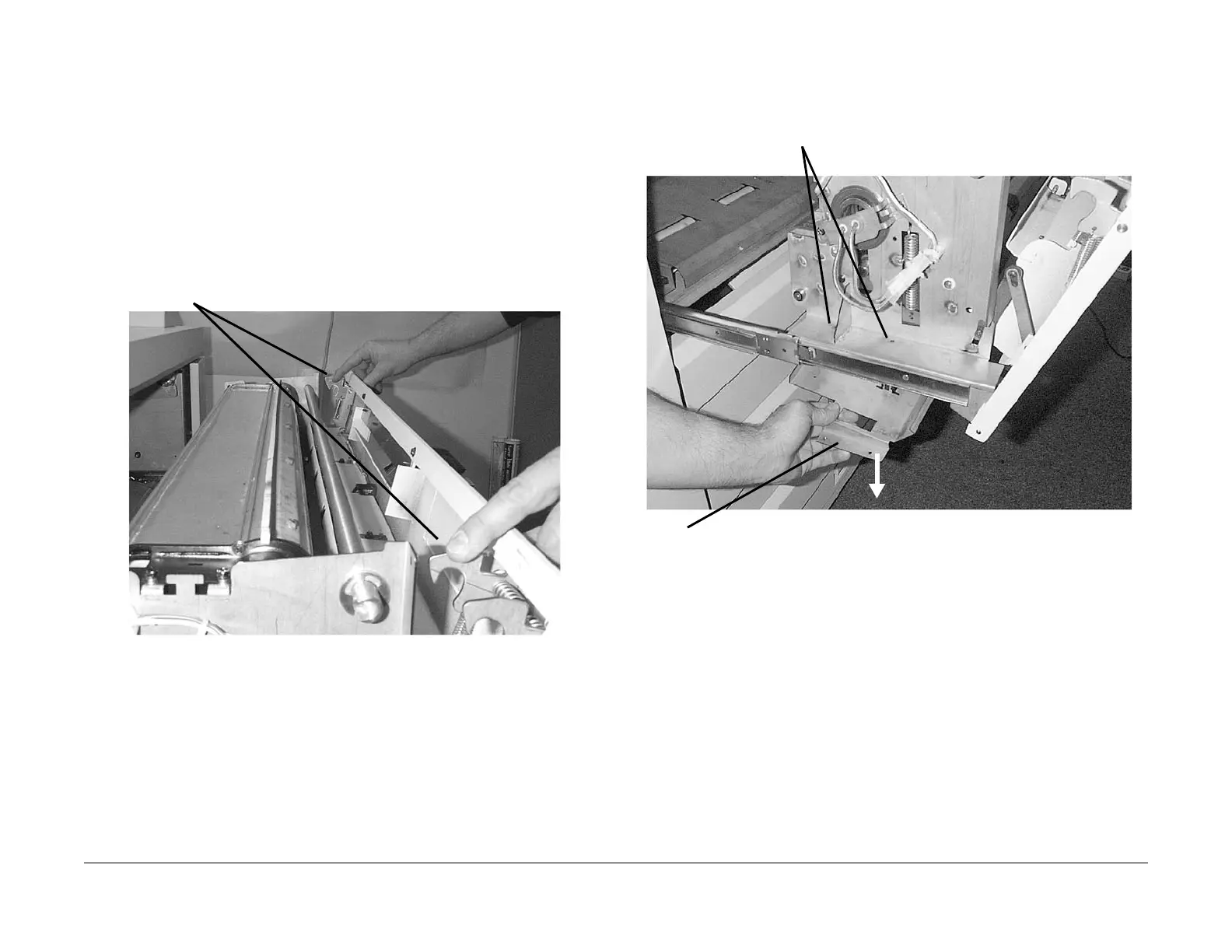

Figure 1 Releasing the Fuser Drawer Latches
3. (Figure 2): Remove the Upper Sheet Feed Housing.
NOTE: The Upper Sheet Feed Housing is held in position by three retaining prongs on
the bottom of the right side of the housing, and two hex head screws on the left side.
Figure 2 Removing the Upper Sheet Feed Housing
1
Compress spring tabs
2
Allow Fuser Module Cover to
drop downward
1
While supporting the left side of the Upper Sheet Feed Housing, remove the
two screws
2
Lower the left side of the Upper Sheet Feed Housing and remove it from the
Printer
