REP 8.15
Repairs and Adjustments
REP 8.15 Media Exit Pinch Roll
Parts List on PL 14.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
1. Open the Fuser Drawer (located above media drawers).
2. (Figure 1): Release the latches at the top of the Fuser Module.

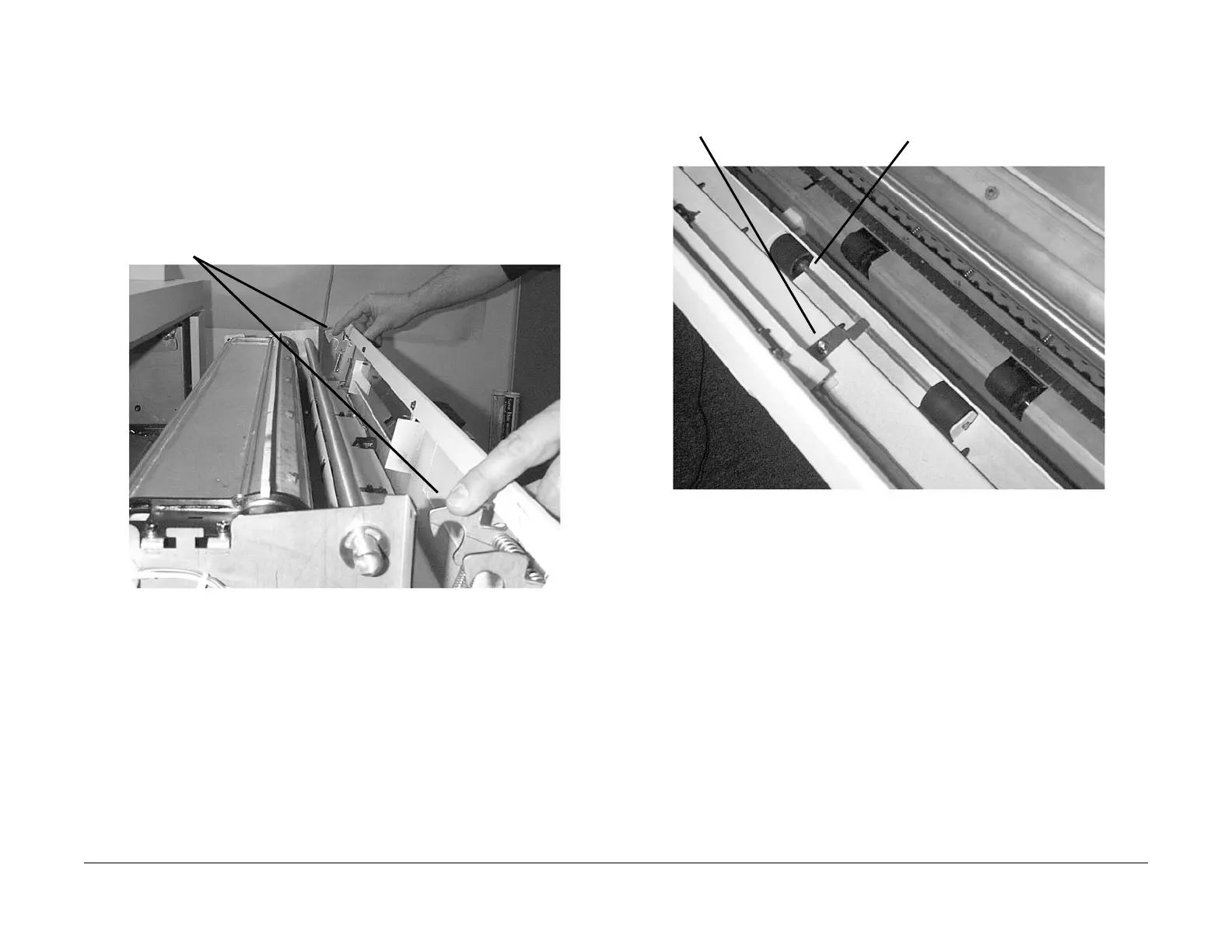

Figure 1 Releasing the Fuser Drawer Latches
3. (Figure 2): Prepare to remove the Media Exit Pinch Roll.
NOTE: There are two Media Exit Pinch Rolls on the 8850/510dp Printer. The removal pro-
cedure is the same for both.
Figure 2 Preparing to Remove the Media Exit Pinch Roll
1
Compress spring tabs
2
Allow Fuser Module Cover to
drop downward
1
Remove the retaining spring
2
Remove the E-ring
