03/2003
5-34
8850/ 510DP
PL 10.2
Parts Lists

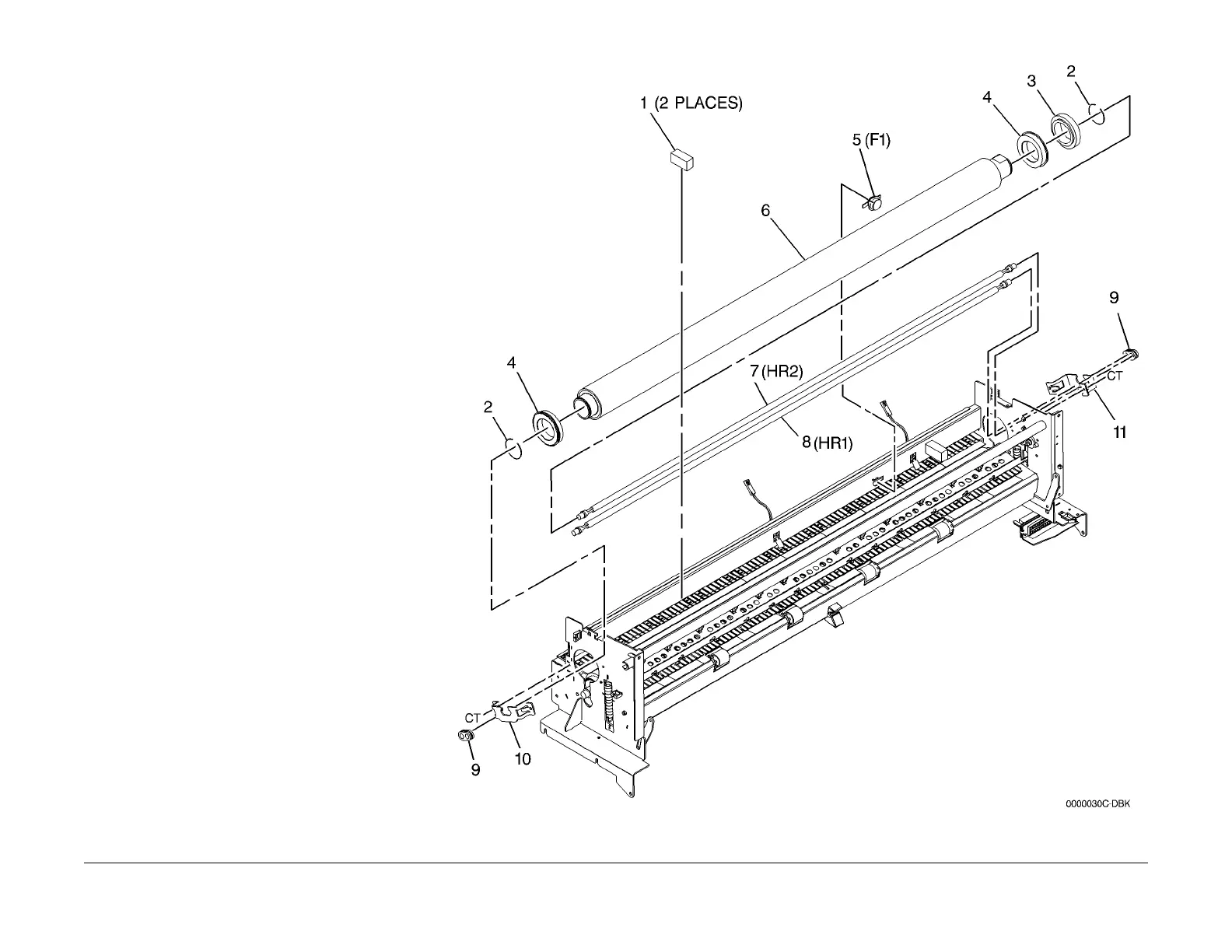

PL 10.2 Fuser Components (Part 1 of
4)
Item Part Description
1 014E49090 Foam Block
2 028E14590 Retainer Clip
3 007E69370 Heat Roll Drive Gear (60T)
4 013E20970 Bearing
5 130K66680 Thermal Fuse (A27F1) (REP 10.6)
6 022K79111 Fuser Heat Roll (REP 10.2)
7 122K02020 Center Heat Rod (HR2) (REP
10.1,ADJ 10.1)
8 122K02030 Edge Heat Rod (HR1) (REP
10.1,ADJ 10.1)
9 016E16200 Lamp Grommet
10 830E72250 Lamp Bracket (Non-Drive Side)
11 830E72260 Lamp Bracket (Drive Side)
To Next Page
