03/2003
5-29
8850/ 510DP
PL 9.7
Parts Lists

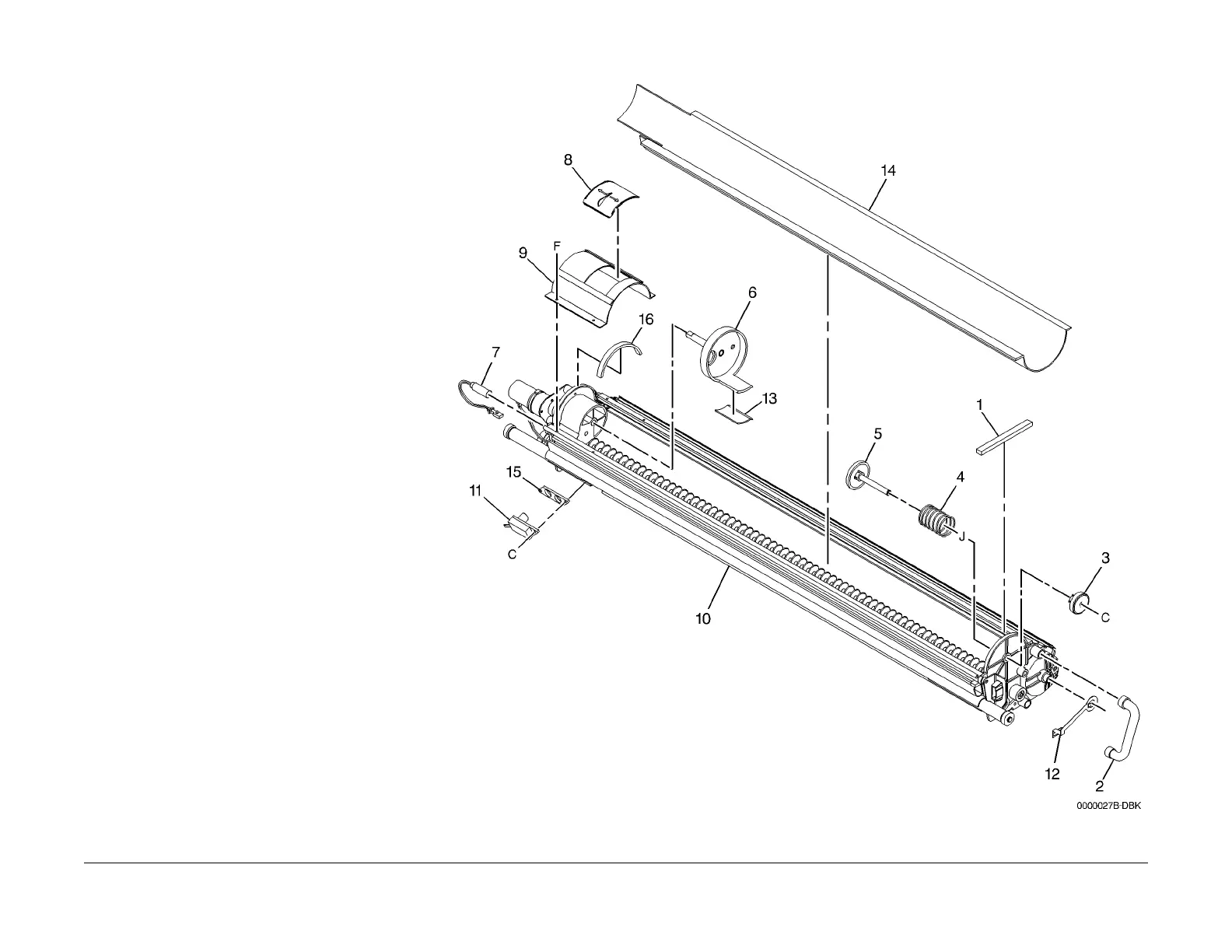

PL 9.7 Developer Module
Components (Part 1 of 2)
Item Part Description
1 – Sump Gasket (P/O PL 9.6 Item 12)
2 054E03181 Pressure Equalizer Tube (REP
9.18)
3 003E19330 Cartridge Knob
4 – Spring (P/O PL 9.6 Item 12)
5 005K01351 Cartridge Hub
6 006K26210 Cartridge Drive Plate (REP 9.14)
7 130K30381 Toner Cartridge Home Sensor
(REP 9.12, ADJ 9.5)
8 002E40470 Top Shield Door
9 055K13840 Top Shield
10 – Developer Frame (P/O PL 9.6 Item
12)
11 130K65900 Toner Sensor (REP 9.11, ADJ 9.3)
12 019E15551 Bias Clip
13 001E23080 Toner Strip
14 055K13830 Sump Shield (REP 9.13)
15 014E46450 Sensor Spacer
16 035E12210 Seal
To Next Page
