03/2003
6-21
8850/ 510DP
Installation Procedure
General Procedures
Installation Procedure
NOTE: Except where specified, the install procedure is common to both the 8850 and the
510dp Printers. Photographs and illustration are mainly of the 8850.
Power Requirements for the Printer
CAUTION
Before installing the Printer, check for the correct voltage, polarity, and the grounding of the AC
outlet that is provided by the customer. Use the Digital Multimeter. Incorrect voltage applied to
the Printer could result in poor performance or damage to the Printer.
NOTE: The power line outlet must be a dedicated line (wired directly to the circuit breaker
panel), with the correct current rating (ampheres) as indicated in (ADJ 3.2) Line Current, with
no shared neutral, and a different phase from the lighting circuits.
CAUTION
If the supply AC voltage specifications are not met, the AC outlet may be wired or grounded
incorrectly. Inform the customer and request that a licensed electrician correct the problem.
DO NOT attempt to make the correction yourself.
NOTE: The Power Cord is the disconnect device for this equipment. Ensure that the installa-
tion is near the outlet and is easily accessible.
•(Figure 1): Check for 220 AC input voltage at the wall outlet:
– Check for 208 - 240 VAC between the AC Hot (ACH) terminals.
Check for 110 - 120 VAC between each AC Hot (ACH) terminal and Ground.
NOTE: 110 VAC input voltage can only be used when the customer’s copy speed require-
ments are 5 or 7 D(A1)-size per minute. If 10 D (A1)-size per minute is required, 220 VAC
must be used.
Check for 110 VAC input voltage at the wall outlet:
– Check for 105-125 VAC between AC Hot and AC neutral.
Check for 105-125 between AC Hot and AC ground
Check for less than 2 VAC between AC neutral and ground.

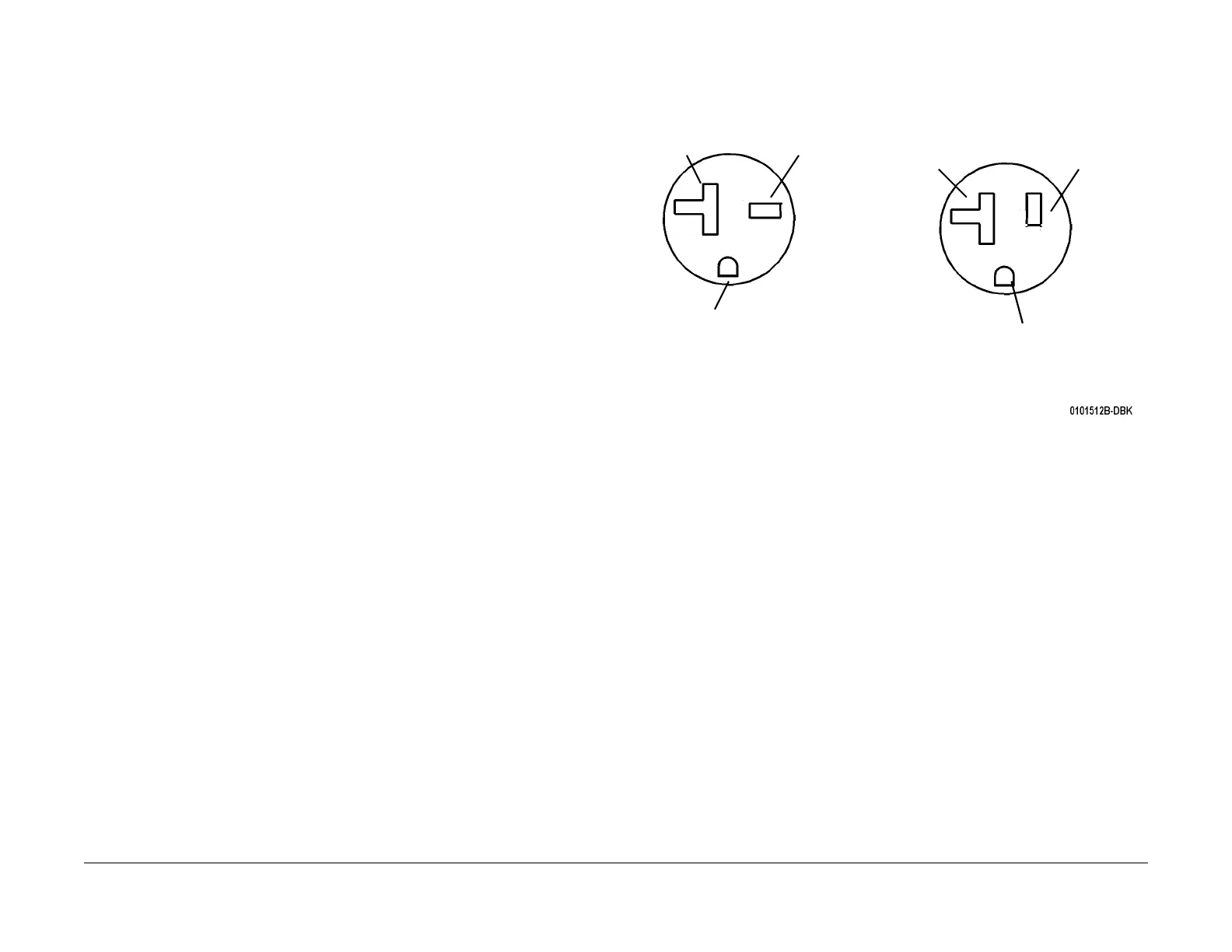

Figure 1 Checking the Ground and AC voltages
Floor Space Requirements
WARNING
This product will produce ozone during operation. The ozone that is produced is depen-
dent on the print volume and is heavier than air. Providing the correct environmental
parameters as specified in Xerox installation procedures will ensure that concentration
levels meet safe limits
• The minimum space requirement is 116.75 inches (292 cm) x 85 inches (212.5 cm).
USO Only: If additional information concerning ozone is needed, request the Xerox publica-
tion 600P83222, Ozone by calling 1-800-828-6571.
Hot (ACH)
Red or
Black Wire
Ground
Green Wire
220 VAC 20 AMP
10 D (A1)-D size prints
per minute
NEMA =5 - 20R
Hot (ACH)
Red or
Black Wire
Ground
Green Wire
NEMA = 6 - 20R
Hot (ACH)
Black WireNeutral (ACN)
White Wire
20 AMP
115 VAC 20AMP
(5 or 7 D (A1)-size prints
per minute only)
To Next Page
