Xerox 8850 Service Manual

03/2003
4-90
8850/ 510DP
REP 9.14
Repairs and Adjustments
REP 9.14 Cartridge Drive Plate
Parts List on PL 9.7
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove the Developer Module. Perform REP 9.5 Developer Module.
2. (Figure 1): Remove the Cartridge Drive Plate.

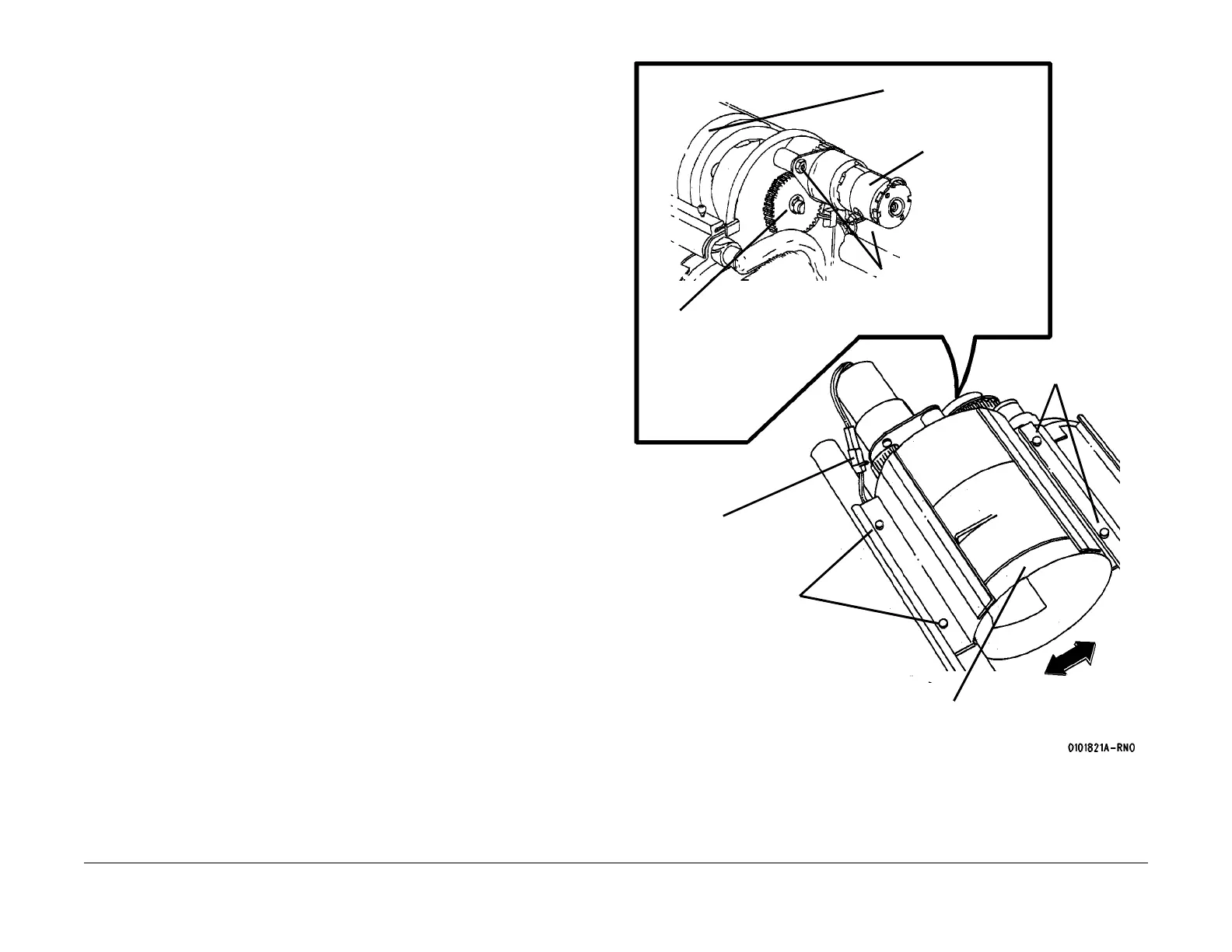

Figure 1 Removing the Cartridge Drive Plate
5
Remove the two motor
mount screws
2
Loosen the screws (2)
3
Remove the Top Shield
7
Remove the E-ring
and gear
6
Remove the motor
8
Remove the Drive Plate
1
Remove the
screws (2)
4
Disconnect
P1
