Xerox 8850 Service Manual

03/2003
5-36
8850/ 510DP
PL 10.4
Parts Lists

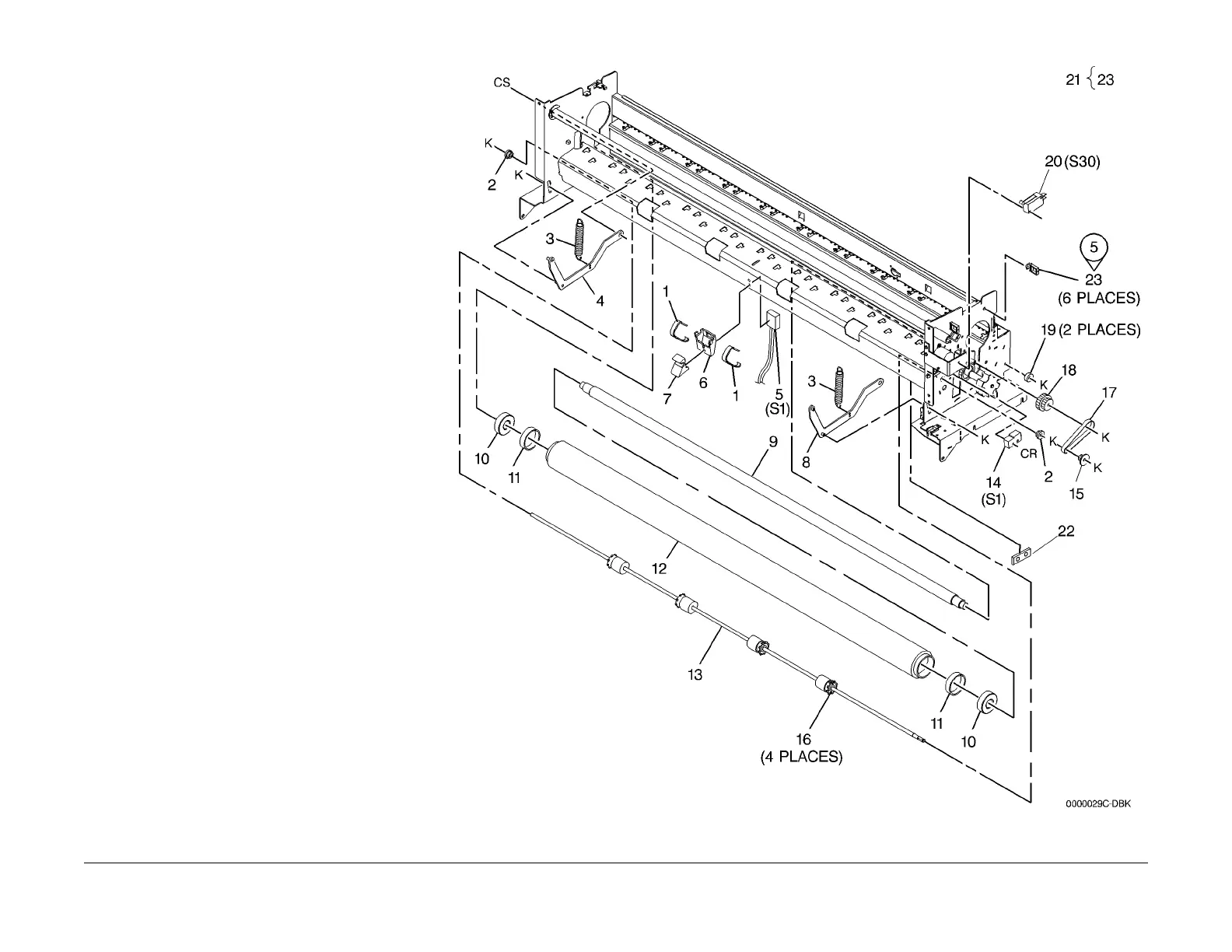

PL 10.4 Fuser Components (Part 3 of
4)
Item Part Description
1 019E11700 Spring Clip
2 016E06020 Bushing
3 809E43281 Pressure Roll Spring
4 031K06990 Left Pressure Control Arm
5 110K03340 Media Exit Switch (S1) (REP 10.9)
6 830E96350 Exit Shaft Support
7 – Catch Tray Block (P/O PL 10.1 Item
7)
8 031K07000 Right Pressure Control Arm
9 – Pressure Roll Arm (P/O PL 10.1
Item 7)
10 013E20980 Pressure Roll Bearing
11 028E14600 TOL Ring
12 022K78981 Pressure Roll (REP 10.8)
13 006K26281 Media Exit Drive Roll (REP 8.16)
14 110E05500 Stripper Finger Jam Switch (S1)
15 020E39601 Media Exit Drive Pulley
16 022E22890 Kicker
17 023E24190 Exit Drive Belt
18 020E26340 Gear Pulley (30T)
19 – Bearing (P/O PL 10.1 Item 7)
20 – Fuser Drive Interlock Switch (S30)
(P/O PL 10.1 Item 7)
21 604K12880 Wire Saddle Kit (6/Kit) (TAG 5)
22 815E16870 Switch Plate
23 120P60583 Wire Saddle
