Xerox 8850 Service Manual

03/2003
4-71
8850/ 510DP
REP 9.7
Repairs and Adjustments
REP 9.7 Developer Material
Parts List on (Refer to General Tools and Supplies (NACO), General
Tools and Supplies (EO) Machine Consumables, Section 6.)
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove the Developer Module (REP 9.5).
CAUTION
Do not rotate the Developer Module in the vertical position. This may cause Developer Material
to get into the Toner Cartridge Clutch (located at the end of the Developer Module).
2. Place the Developer Module on a drop cloth on the floor.

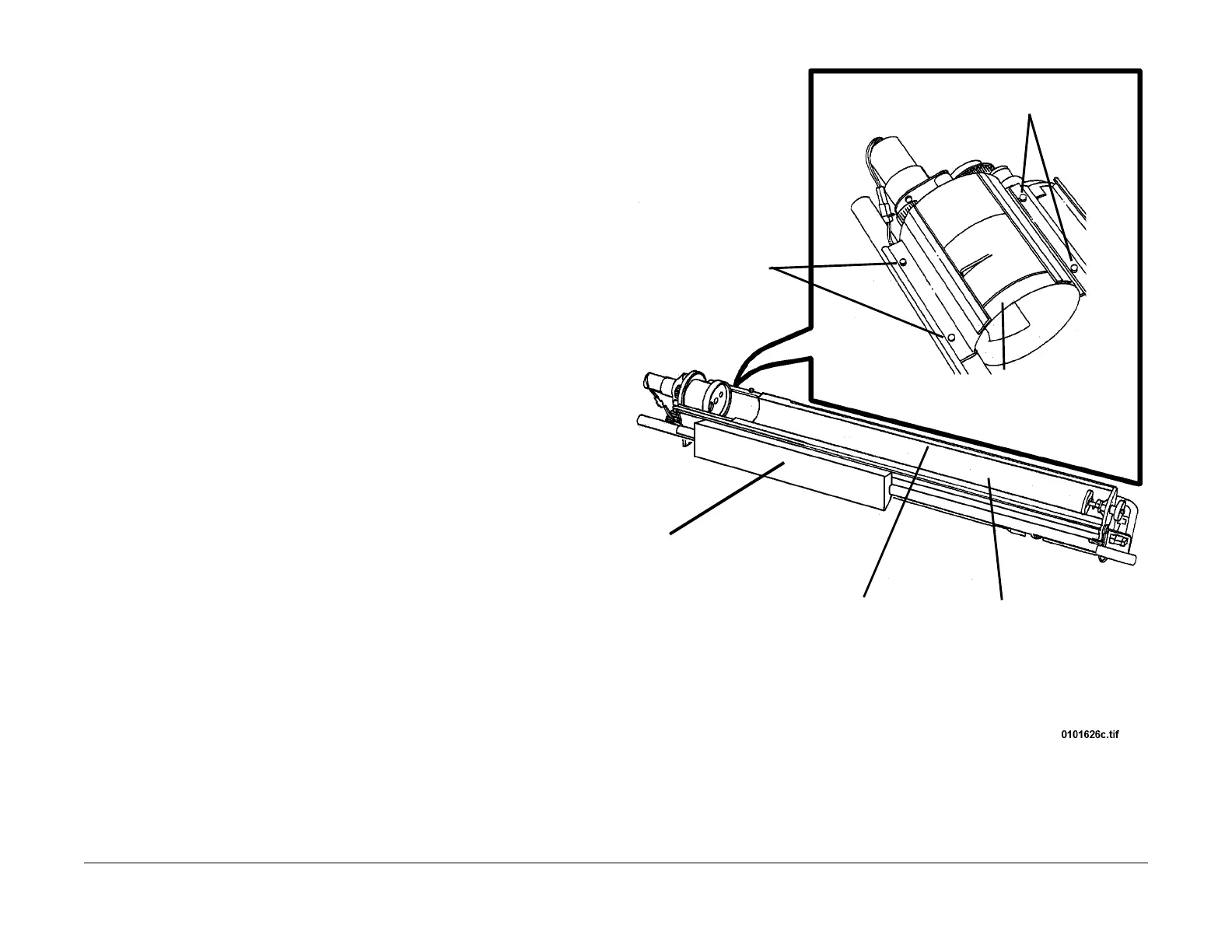

3. (Figure 1): Remove the Sump Shield from the Developer Module.
Figure 1 Removing the Sump Shield from the Developer Module
NOTE: In the following step rotate the Developer Module away from the Magnetic Roll.
1
Remove the toner dust
trap)
2
Loosen the screws (2)
3
Remove the Top
Shield
4
Remove the Sump
Shield from under
the edge (full
length)
5
Remove the Sump
Shield
1
Remove the screws (2)
