03/2003
5-13
8850/ 510DP
PL 7.2
Parts Lists

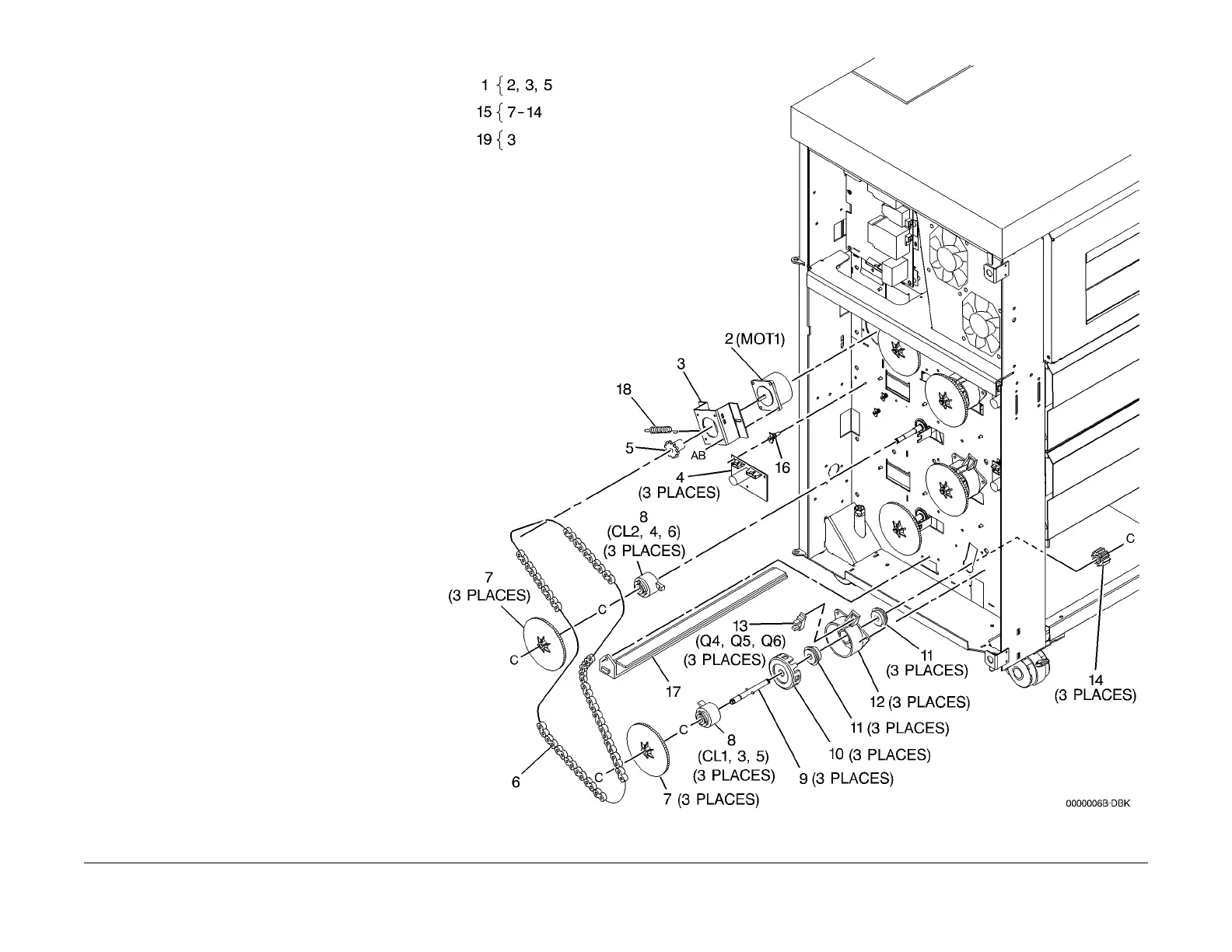

PL 7.2 Roll Supply Drives
Item Part Description
1 007K12591 Roll Drive Motor Assembly
2 – Roll Drive Motor (MOT1) (P/O PL
7.2 Item 1) (REP 7.9)
3 – Bracket (P/O PL 7.2 Item 1)
4 – Drive Motor PWB (Not Spared)
5 007E70470 Main Drive Sprocket (15T)
6 – Chain (Not Spared)
7 007E19071 Sprocket (50T)
8 121E07510 Clutch (CL1-6) (REP 7.5 REP 7.6)
9 – Rewind Shaft (Not Spared)
10 005E06810 Encoder Disk (REP 7.12)
11 413W30854 Bearing
12 – Rewind Housing (Not Spared)
13 130E03250 Motion Sensor (Q4, Q5, Q6) (REP
7.7)
14 007E14610 Rewind Drive Gear (12T)
15 007K05760 Rewind Drive Assembly
16 – Standoff (Not Spared)
17 126K07340 Lower Media Roll Heater (Roll 3)
(REP 7.10)
18 809E46680 Motor Spring
19 604K16990 Motor Bracket Repair Kit (Tag 11)
To Next Page
