03/2003
4-103
8850/ 510DP
REP 9.22
Repairs and Adjustments
REP 9.22 Bias Transfer Roll (BTR)
Parts List on PL 8.3
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Elevate the Xerographic Module to the service position, per REP 9.2.
NOTE: The following procedure can be accomplished as shown, or it can be made easier
by first removing the Xerographic Module (REP 9.1).
2. (Figure 1): Remove the two Media Shields from the Printer.

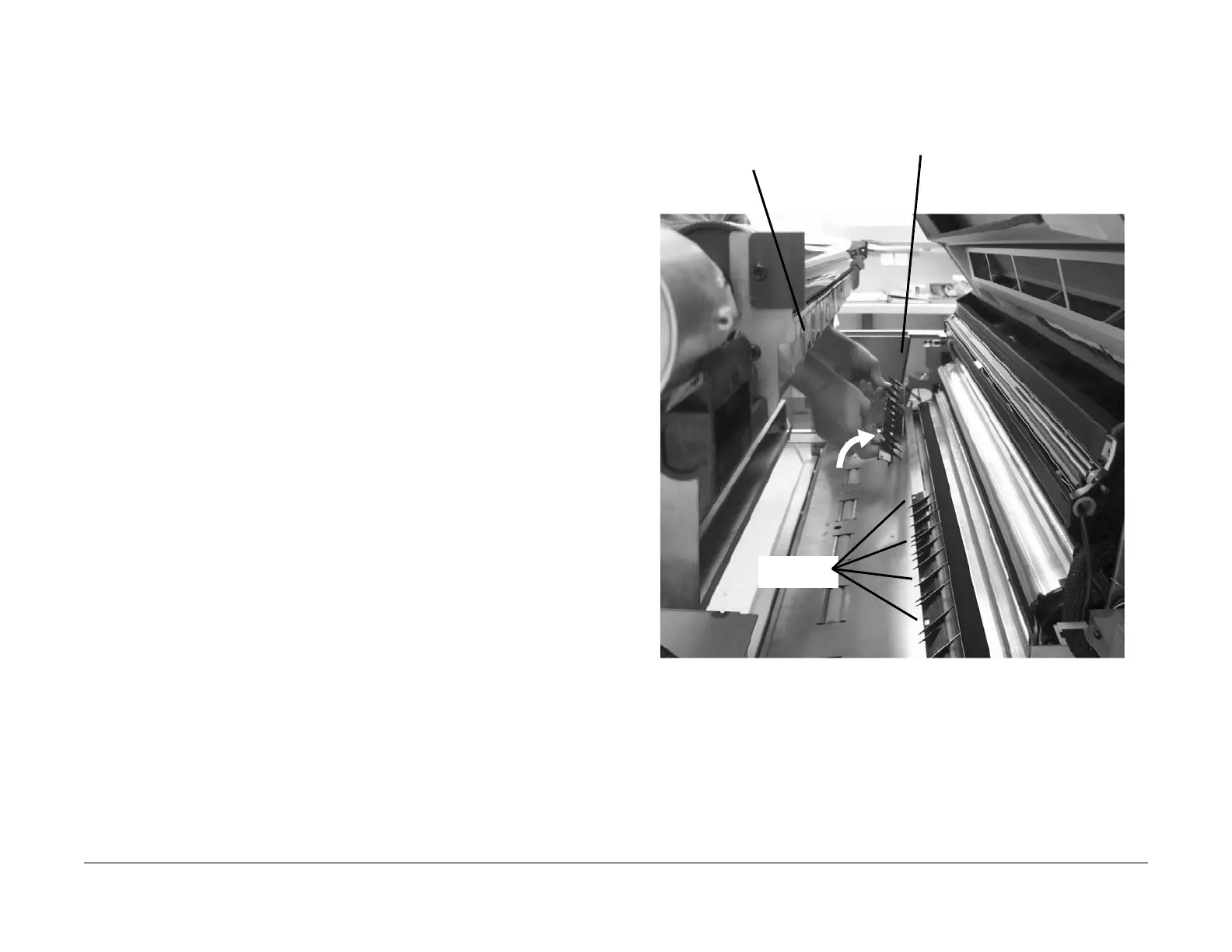

Figure 1 Removing the two Media Shields
1
Standing on the Roll Media Supply
Drawer side of the Printer, reach
under the raised Xerographic Assem-
bly to access the Media Shields (2)
2
Pry up the five plastic tabs on the
near edge of each Media Shield,
then raise the shield and remove
Plastic tabs
