Xerox 8850 Service Manual

03/2003
4-18
8850/ 510DP
REP 7.10
Repairs and Adjustments
REP 7.10 Lower Media Roll Heater
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. (Figure 1): Remove the Lower Media Roll Heater.

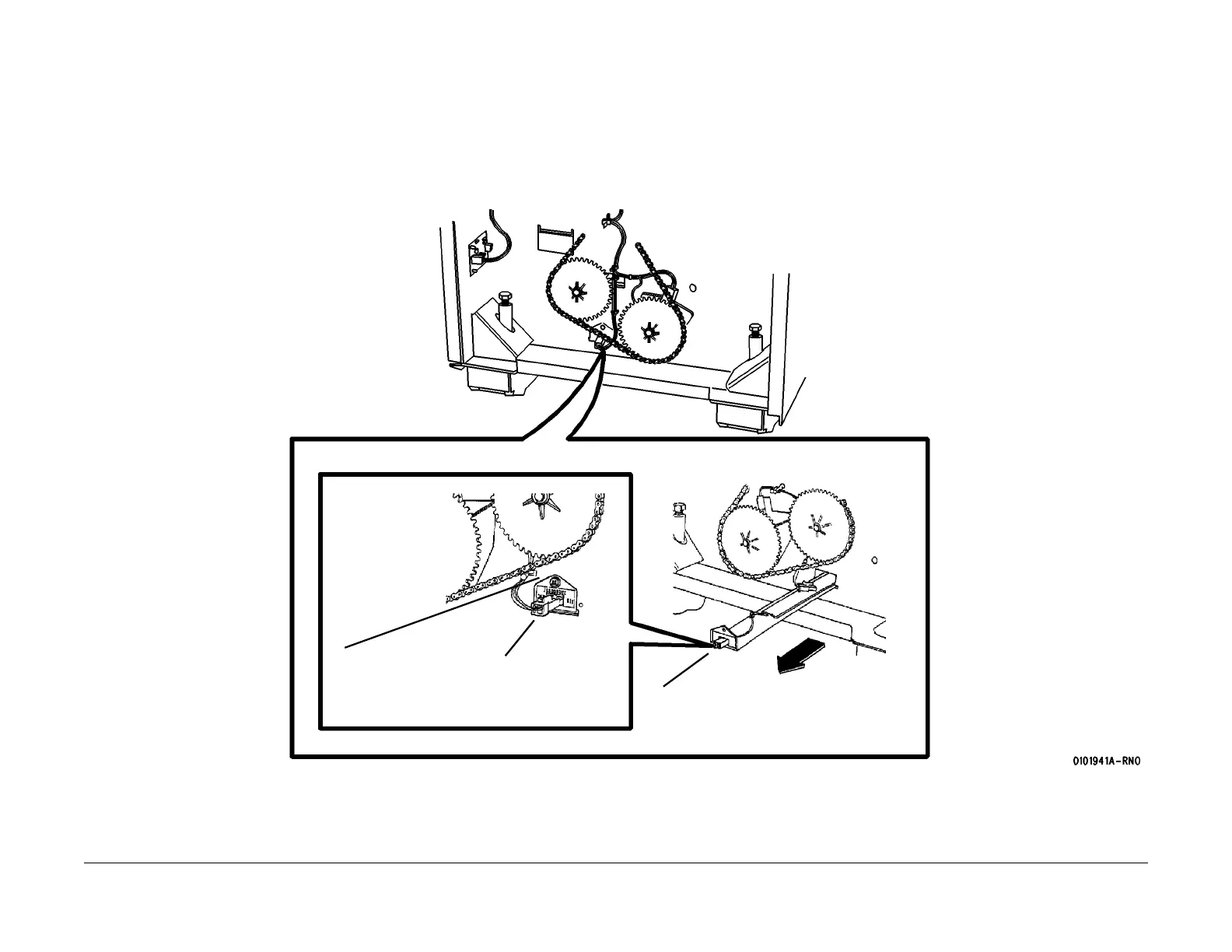

Figure 1 Removing the Lower Media Roll Heater
2
Remove the screw
1
Disconnect
the connector
3
Remove the Lower
Media Roll Heater
