Xerox 8850 Service Manual

03/2003
5-21
8850/ 510DP
PL 8.2
Parts Lists

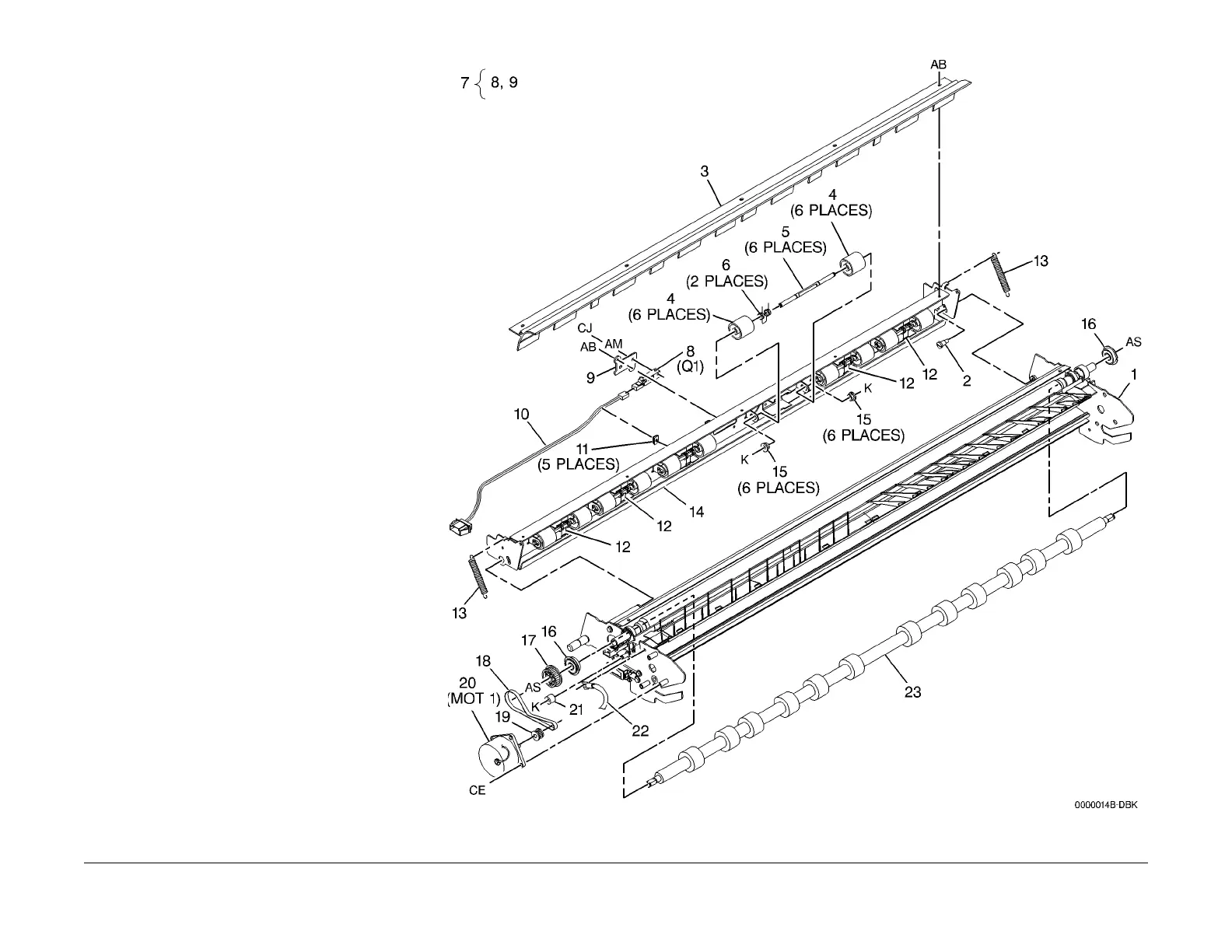

PL 8.2 Media Registration
Components (Part 1 of 2)
Item Part Description
1 – Media Transport Frame (P/O PL 8.1
Item 1)
2 026E11970 Shoulder Screw
3 – Turnaround Baffle (P/O PL 8.1 Item
1)
4 022E10531 Registration Pinch Roll (REP 8.12)
5 – Pinch Roll Shaft (P/O PL 8.1 Item
1)
6 009E32500 Pinch Roll Spring
7 015K57430 Media Registration Sensor
Assembly
8 130E10090 Media Registration Sensor (Q1)
(REP 8.8)
9 – Plate (P/O PL 8.1 Item 1)
10 – Paper Transport Harness (P/O PL
8.1 Item 1)
11 019E07100 Cable Clip (P/O PL 8.2 Item 2)
12 009E32490 Pinch Roll Spring
13 009E32480 Registration Support Spring
14 – Registration Support (P/O PL 8.1
Item 1)
15 016E06020 Bushing
16 413W31054 Bearing
17 020E38730 Pulley (48T)
18 023E23580 Registration Drive Belt (REP 8.13)
19 020E13603 Drive Motor Pulley (18T)
20 127K04293 Media Transport Drive Motor
(MOT1) (REP 8.13, ADJ 8.1, ADJ
8.2)
21 022E11441 Idler
22 117K40140 Ground Strap
23 006K26701 Registration Drive Roll (REP 8.17)
