Xerox 8850 Service Manual

03/2003
5-10
8850/ 510DP
PL 1.4
Parts Lists

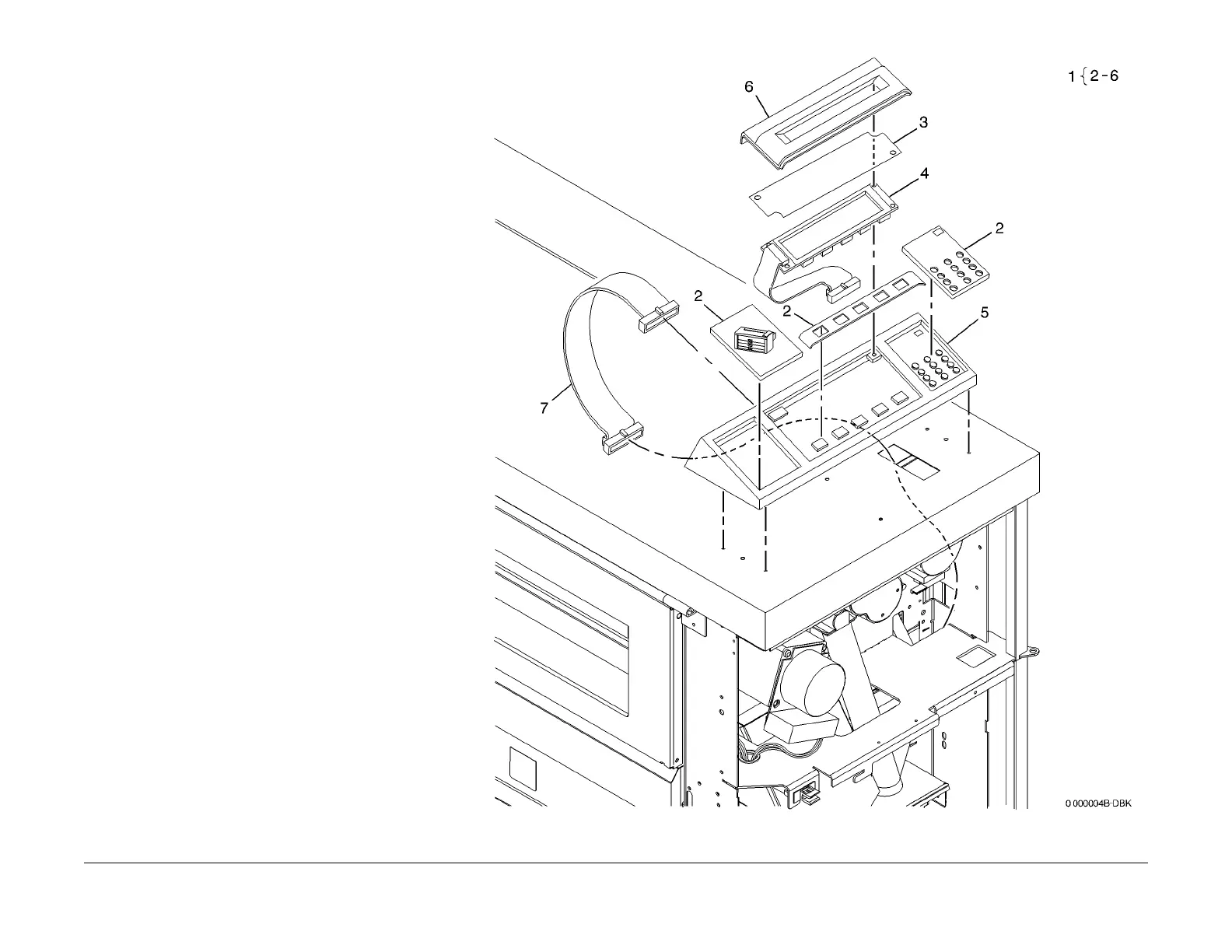

PL 1.4 Control Panel (8850)
Item Part Description
1 101K26083 Control Panel
2 096E78252 Control Panel Label
3 – ESD Insulator (P/O PL 1.4 Item 1)
4 – Display (P/O PL 1.4 Item 1)
5 – Control Console Housing (P/O PL
1.4 Item 1)
6 – Display Housing (P/O PL 1.4 Item
1)
7 162K23421 Control Console to Main PWB (A3)
