03/2003
5-32
8850/ 510DP
PL 9.10
Parts Lists

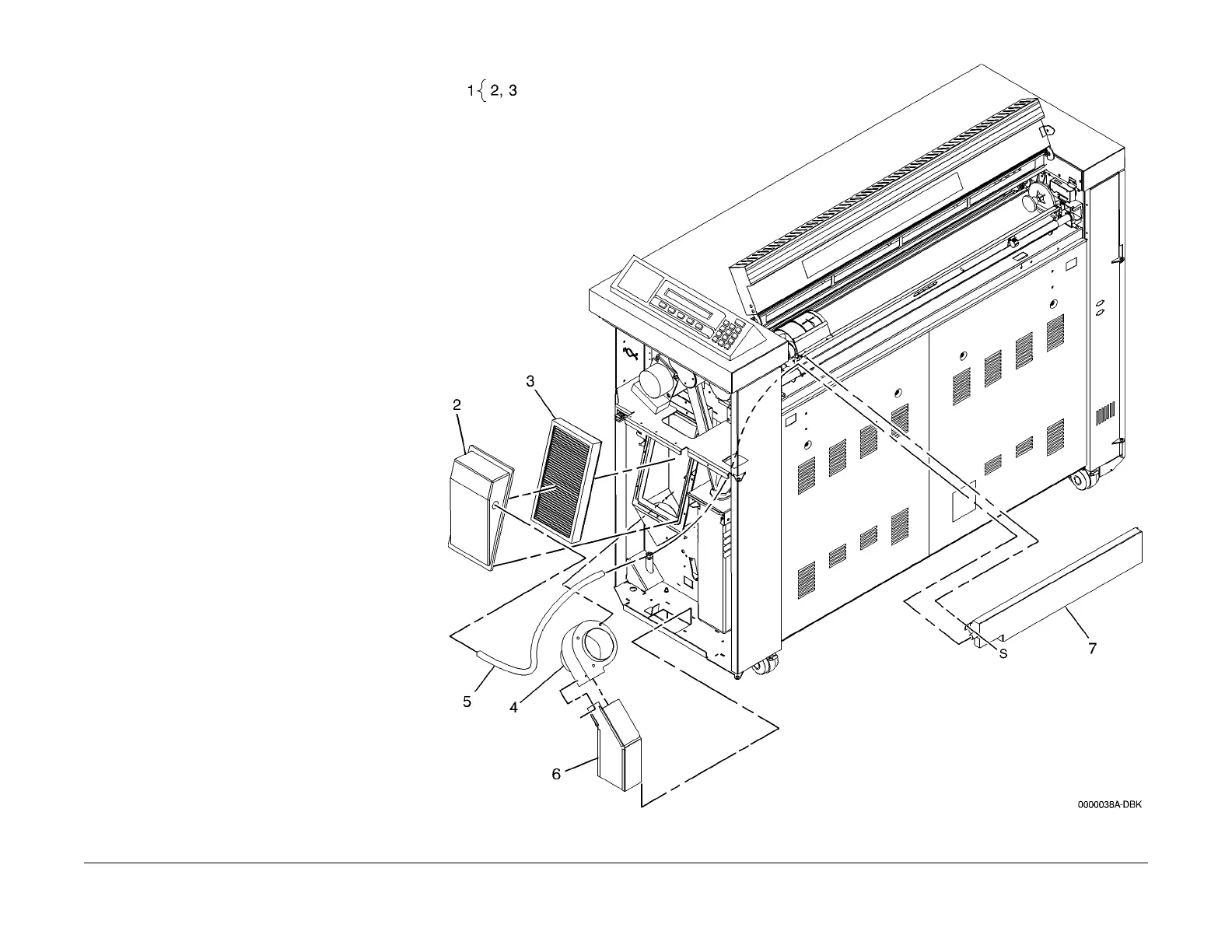

PL 9.10 Toner Dust Control
Item Part Description
1 053K04180 Toner Filter Assembly
2 – Filter Cover (P/O PL 9.10 Item 1)
3 – Filter (P/O PL 9.10 Item 1)
4 127E13650 Vacuum Fan
5 052E24241 Vacuum Tube
6 054K25000 Exhaust Duct
7 – Toner Dust Trap (Not Spared)
