Xerox 8850 Service Manual

03/2003
5-16
8850/ 510DP
PL 7.5
Parts Lists

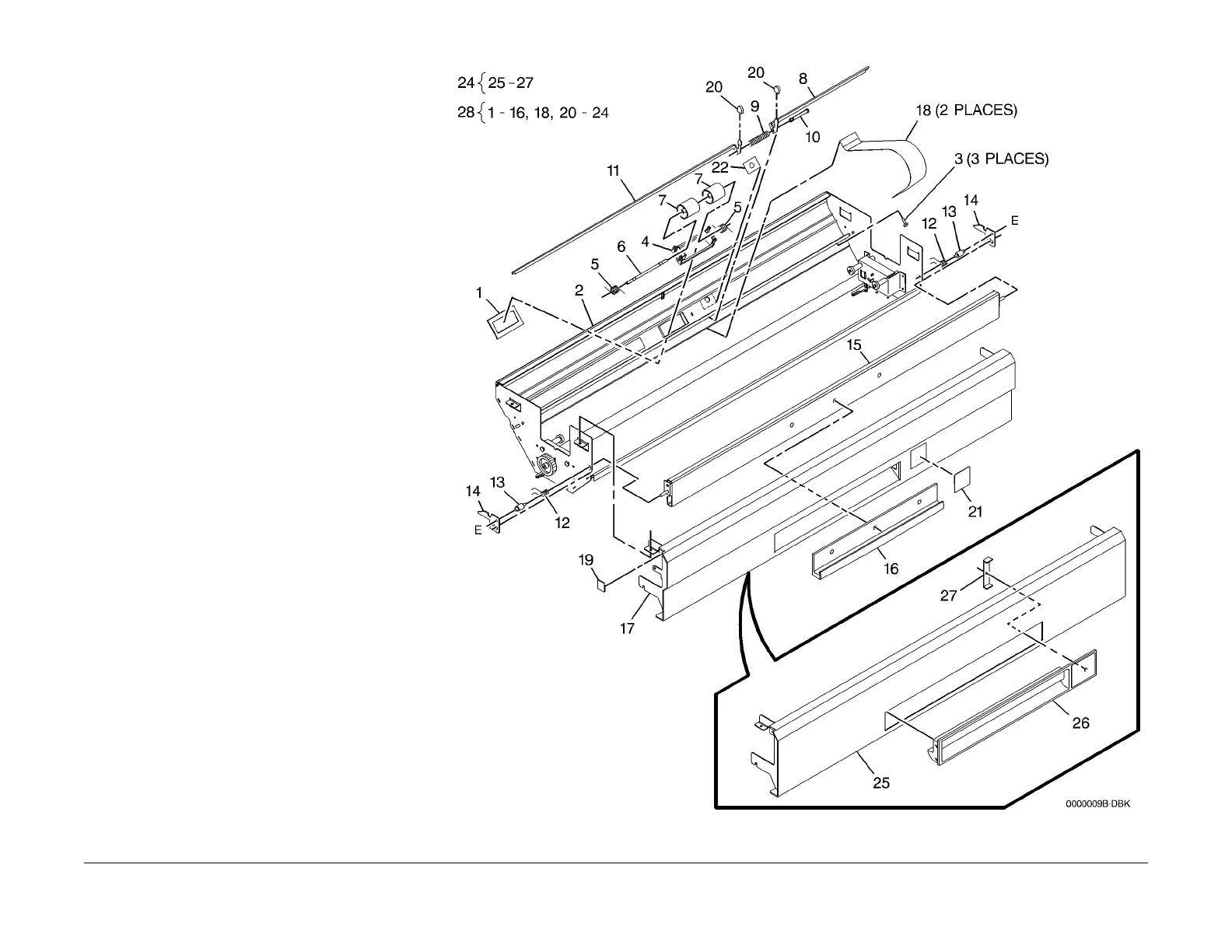

PL 7.5 Roll Supply Drawer
Components (Part 3 of 4)
Item Part Description
1 035E61780 Gasket
2 – Drawer Frame (P/O PL 7.1 Item 11)
3 – Baffle Stop (P/O PL 7.1 Item 11)
4 830E63720 Bracket
5 809E45230 Pinch Roll Spring
6 – Pinch Roll Shaft (P/O PL 7.1 Item
11)
7 022E10060 Roll Feed Pinch Roll (REP 7.3)
8 – RH Pinch Shaft (P/O PL 7.1 Item
11)
9 009E32790 Lock Spring
10 029E14460 Retainer
11 – LH Pinch Shaft (P/O PL 7.1 Item
11)
12 009E27330 Drawer Latch Spring
13 029E13701 Latch Pin
14 – Supply Drawer Latch (P/O PL 7.1
Item 11)
15 030K74790 Bracket
16 003K07581 Handle (8850)
– 003E69900 Handle (510dp)
17 802K39390 Drawer Cover (8850)
– 802K62260 Drawer Cover (510dp)
18 038K09190 Paper Guide
19 121E07680 Magnet
20 – Handle (P/O PL 7.1 Item 11)
21 – Drawer Label (Not Spared)
22 – Label (Lead Edge) (Not Spared)
24 050K54630 Drawer Cover Assembly (510dp)
25 – Drawer (P/O PL 7.5 Item 24)
26 050E21750 Bezel Drawer
27 019E62030 Clip
28 497K01750 Unsealed Drawer Kit
