03/2003
5-31
8850/ 510DP
PL 9.9
Parts Lists

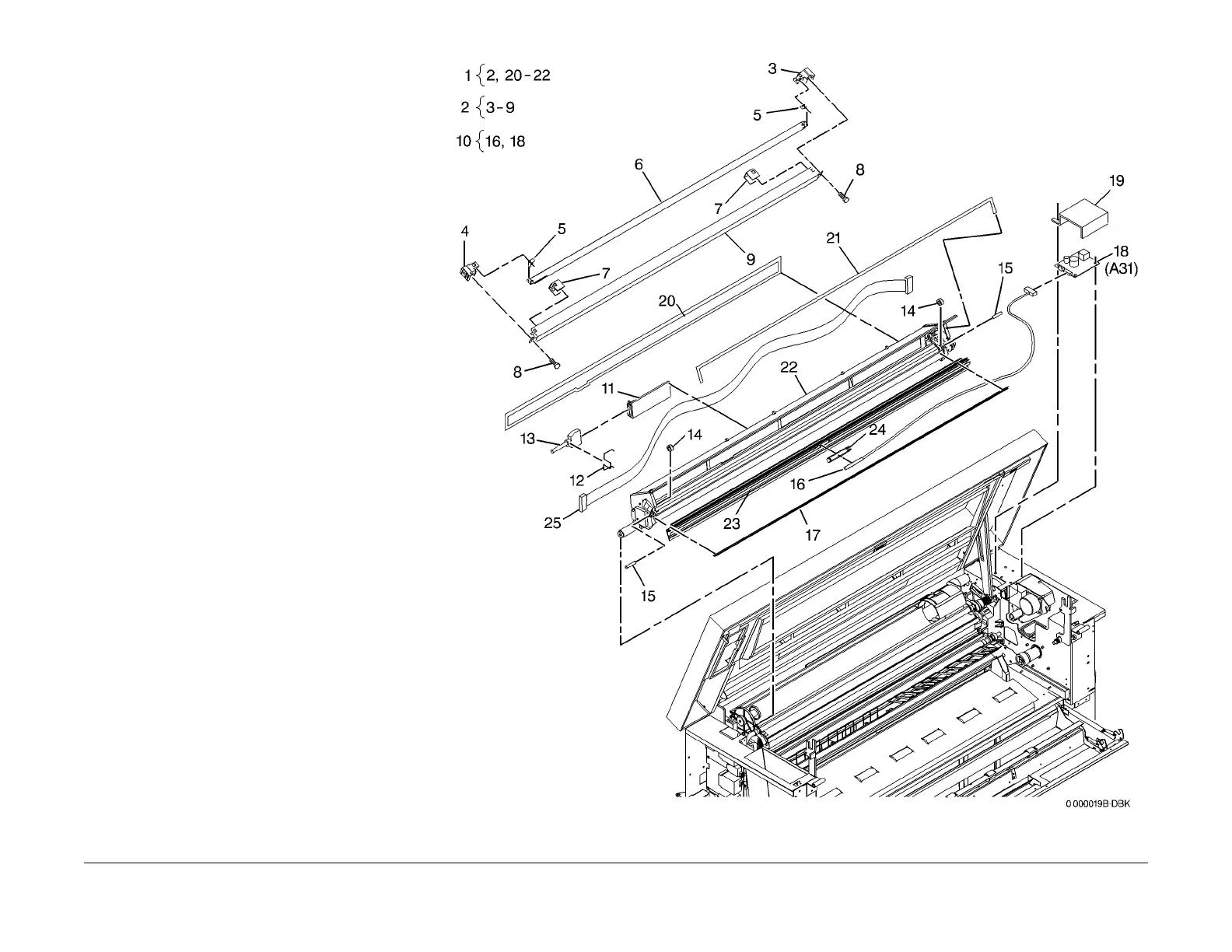

PL 9.9 Image Module Assembly
Item Part Description
1 122K02100 Image Module Assembly (REP
9.20, ADJ 9.2)
2 125K03490 Scorotron Assembly
3 – Right End Block (P/O PL 9.9 Item
2)
4 – Left End Block (P/O PL 9.9 Item 2)
5 009E79510 Spring
6 029E23870 Pin Array (REP 9.8)
7 – Scorotron Shield (P/O PL 9.9 Item
2)
8 026E57690 Screw
9 062E14680 Scorotron Grid (Screen)
10 130K66400 Electrometer Probe (ESV)
11 160K85370 Interface PWB (RS422)
12 809E45780 Cable Clip
13 – Signal Harness (Not Spared)
14 – Roller (Not Spared) (REP 9.19)
15 – Pin (Not Spared)
16 – ESV Sensor and Cable (P/O PL 9.9
Item 10)
17 035K07561 Seal
18 – Electrometer Probe PWB (A31) (P/
O PL 9.9 Item 10)
19 – ESV PWB Cover (Not Spared)
20 035E70260 Top Seal
21 035E66330 Strip Seal
22 – Image Module Housing (P/O PL 9.9
Item 1)
23 113K03041 ESV Extrusion
24 113E42081 Holder
25 962K00360 LED Bar Jumper Power Harness
