03/2003
4-102
8850/ 510DP
REP 9.21
Repairs and Adjustments
REP 9.21 Erase Bar
Parts List on PL 9.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: In the following steps, the terms “Left” and “Right” describe machine locations as
observed from the Roll Media Supply Drawer side of the Printer.
Removal
1. Remove the Printer Drum Assembly. Perform REP 9.2 Drum Assembly.
2. (Figure 1): Remove the Erase Bar, located on the right side of the Xerographic Module.

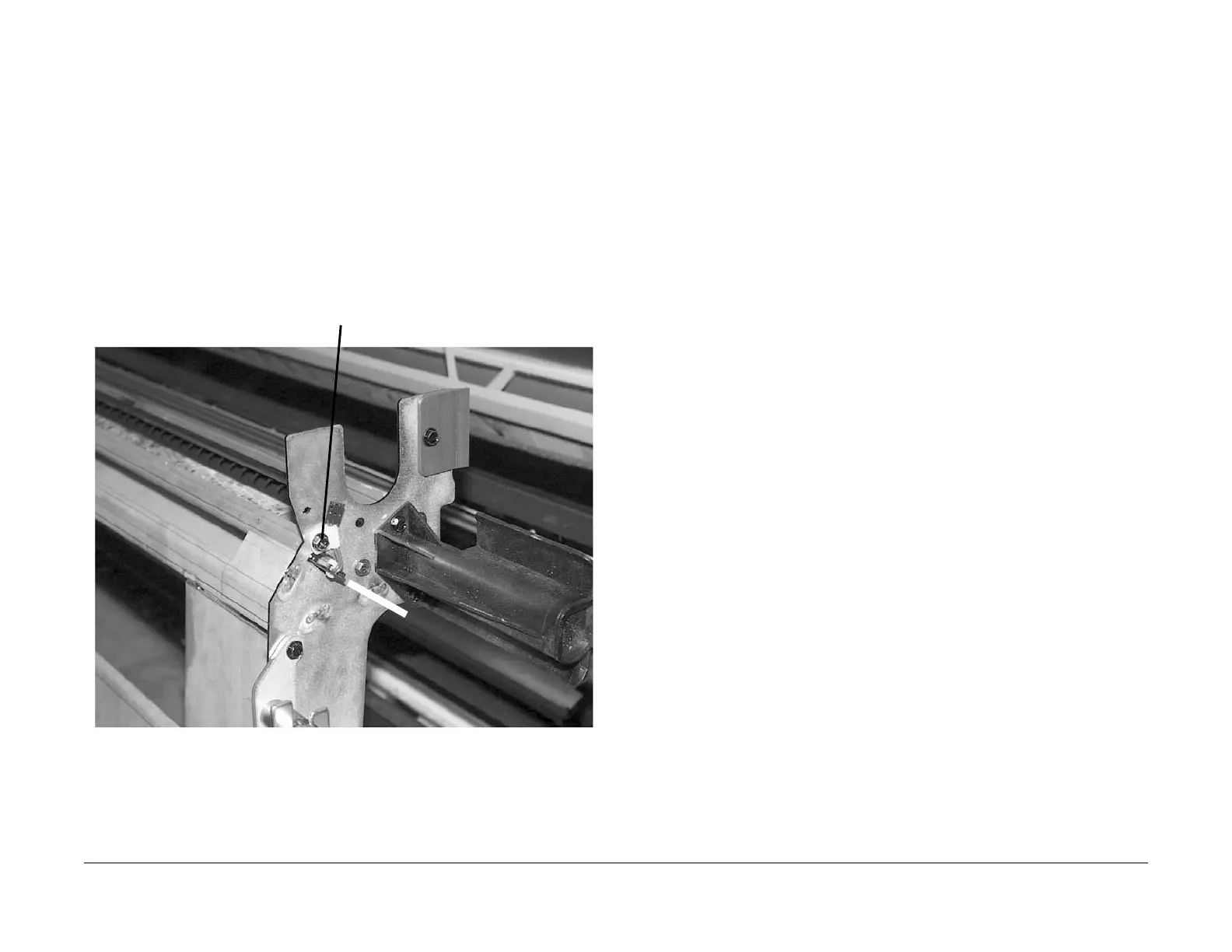

Figure 1 Removing the Erase Bar
1
Remove the screw and slide the Erase
Bar out of the Printer
To Next Page
