2 Installation and Commissioning, IRC5
2.8.1. Definition of I/O units, IRC5
3HAC021313-001 Revision: K100
© Copyright 2004-2008 ABB. All rights reserved.
2.8 I/O system
2.8.1. Definition of I/O units, IRC5
General
The IRC5 controller may be fitted with I/O, Gateway or Encoder units. These are configured
in an identical way.
The IRC5 Single Cabinet Controller is prepared for up to two I/O units, Gateways or Encoder
interfaces units, and the Dual Cabinet Controller (Control Module) is prepared for up to four
I/O units, Gateways or Encoder interface units. This means that the harness inside the IRC5
controller is equipped with necessary connectors.

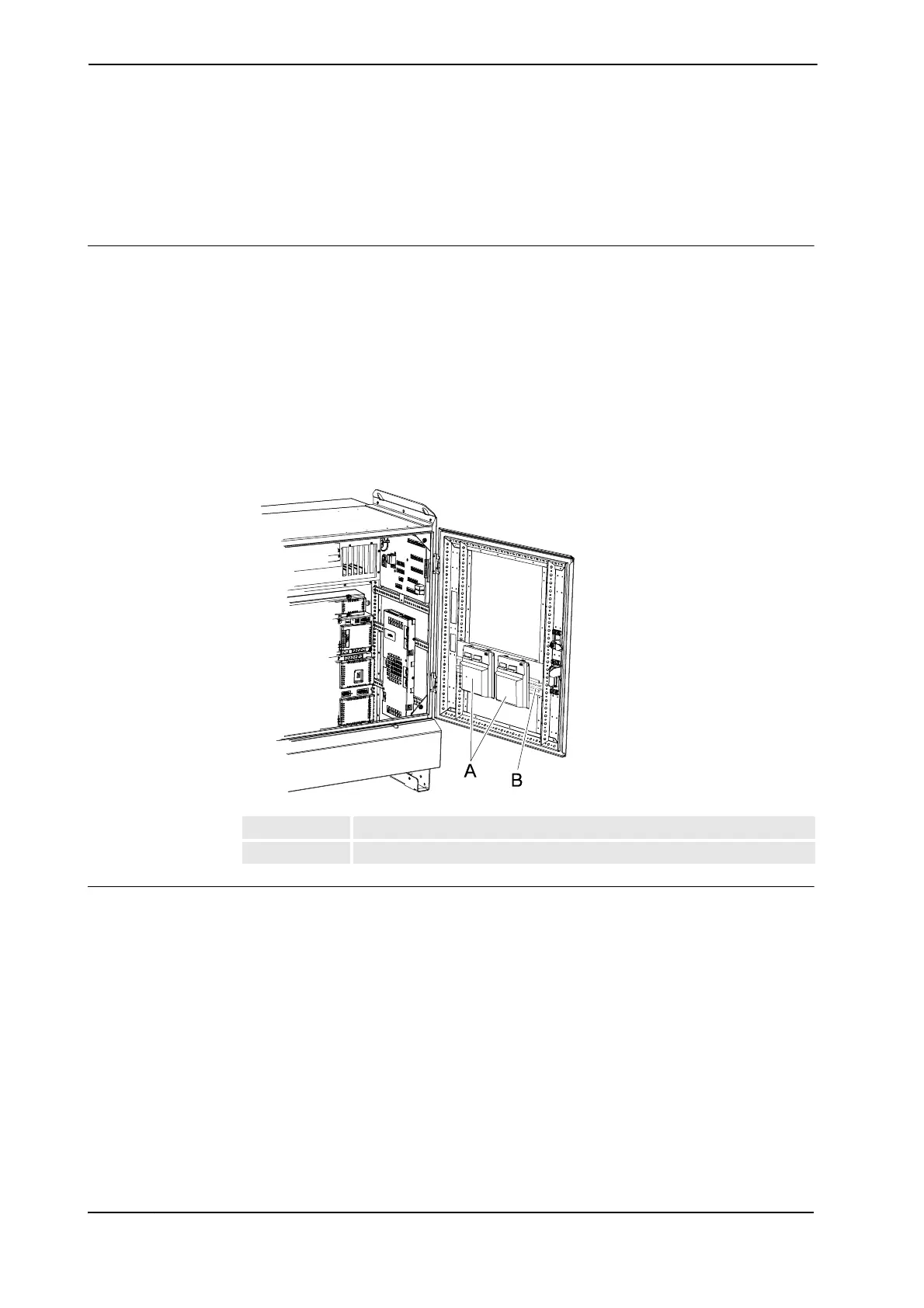

For the Single Cabinet Controller the I/O, Gateway or Encoder units are placed on the inside
of the door as shown in the illustration below. For the Dual Cabinet Controller the units are
mounted in the Control Module.
xx0500001859
Standard configuration
In the standard form, no fieldbus is mounted to the controller. However, the digital inputs and
outputs are available on the customer plate in the control module.
It is possible to connect any type of DeviceNet compliant I/O unit on the DeviceNet
- master bus. All I/O units should comply with the DeviceNet standard and be
conformance tested by ODVA.
A I/O, Gateway or Encoder units
B Mounting rail
Continues on next page
