4 Repair activities, controller IRC5

4.21. Replacement of computer power supply in computer unit DSQC623

2753HAC021313-001 Revision: K

4.21. Replacement of computer power supply in computer unit DSQC623

Location

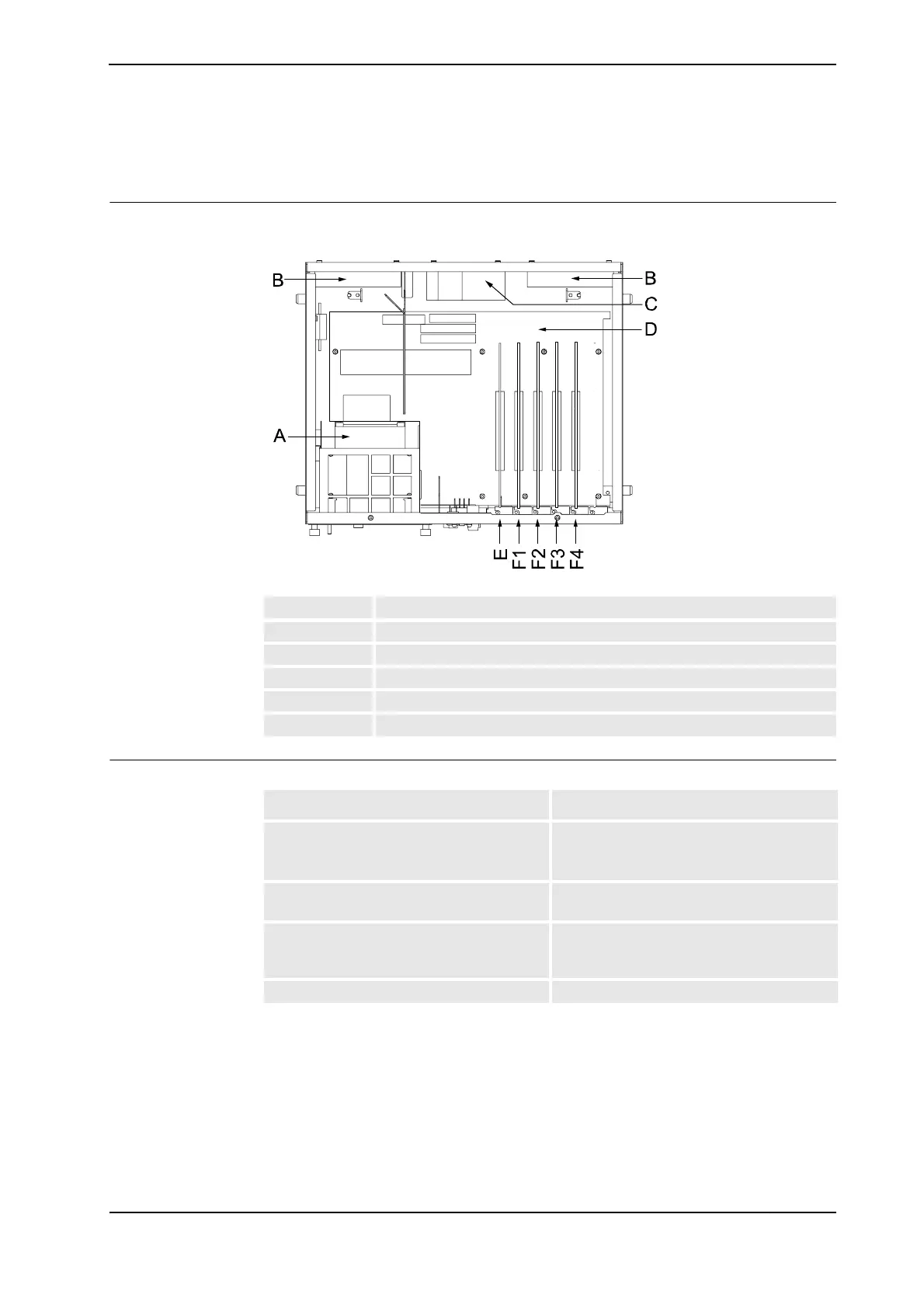

The computer power supply is located in the computer unit as shown below.

xx0400000870

Required equipment

A Solid State drive / hard disk drive

B Computer unit fan

C Power supply

D Main computer motherboard

E Slot for Robot Communication Card (RCC)

F1-F4 Slots for PCI cards

Equipment Note

Computer power supply DSQC 625

See Computer unit DSQC 623 parts on page

324.

Standard toolkit The contents are defined in section Standard

toolkit!

Other tools and procedures may be required.

See references to these procedures in the

step-by-step instructions below.

These procedures include references to the

tools required.

Circuit Diagram See Circuit Diagram on page 341.
