4.3.2. Replacement of power distribution board
General
In the Single Cabinet Controller the control power supply DSQC 604 will be replaced by the
power distribution board DSQC 662. The replacement will start from August 2007.
Location

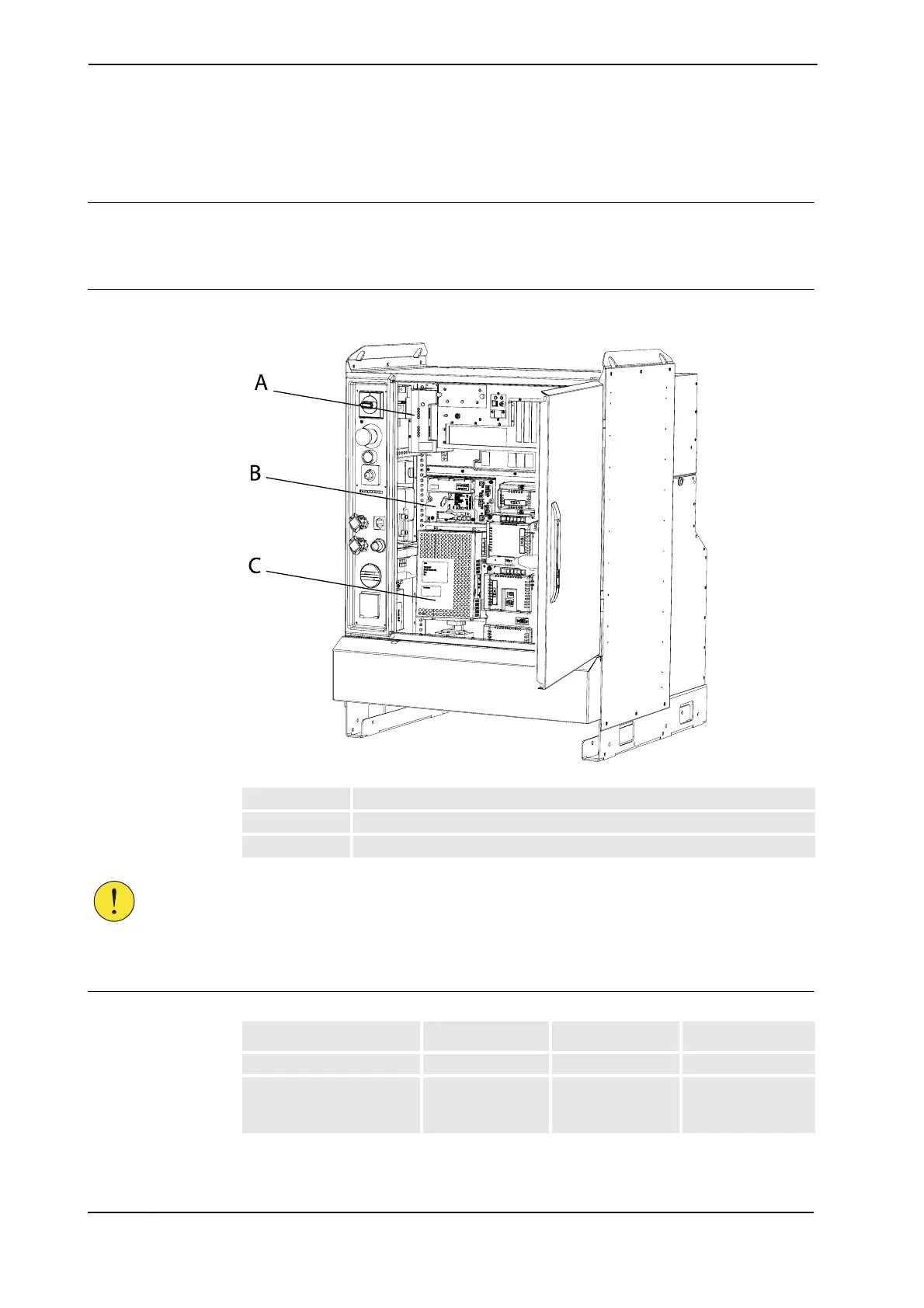

The power distribution board is located on the left side as shown in the illustration below.
xx0700000139
CAUTION!
Hot surface on top of the power distribution board unit.
Risk of burns. Be carefull when removing the unit.
Do not route or place cables on top of the power distribution board.
Required equipment
A Customer I/O power supply
B Power distribution board
C System power supply
Equipment Spare part no. Art. no. Note
Power distribution board 3HAC026254-001 DSQC 662
Standard toolkit The contents are
defined in section
Standard toolkit.
