2 Installation and Commissioning, IRC5

2.9.9. Installation of cooling fan harness axis 1 and 2

3HAC021313-001 Revision: K140

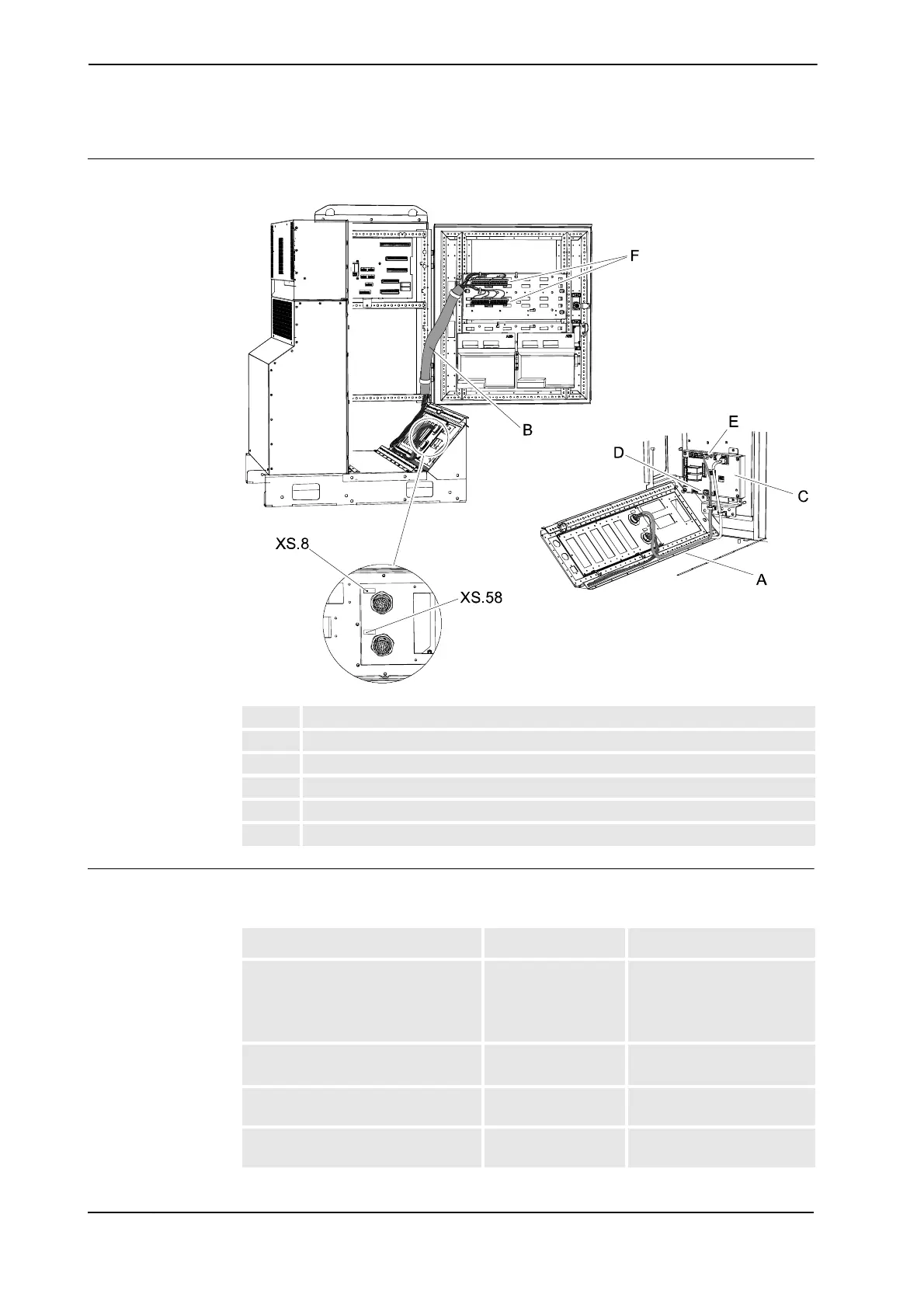

Locations in Single Cabinet Controller

xx0600002686

Required equipment

A Harness, cooling - Axis 1 and 2

B Cable protection

C Contactor interface board

D Connector A43.X10

E Connector A43.X11

F Position switch terminals

Equipment Article no. Note

Dual Cabinet Controller, Harness,

cooling - Axis 1 and 2 kit

3HAC022723-001

3HAC022723-004

3HAC022723-005

3HAC022723-006

15m

22m

30m

Single Cabinet Controller,

Harness, cooling - Axis 1 and 2 kit

3HAC025488-001

Standard toolkit IRC5 See Standard toolkit, IRC5

on page 317.

Circuit diagram See Circuit Diagram on page

341.

Continued

Continues on next page
