ABB IRC5 User Manual

2 Installation and Commissioning, IRC5
2.9.8. Upgrading and installation of 2X Euromap interface (Option 671-4)
1313HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
2.9.8. Upgrading and installation of 2X Euromap interface (Option 671-4)
General
This section describes installation of 2X Euromap interface (Option 671-4) in an IRC5 Single
Cabinet Controller and in an IRC5 Dual Cabinet Controller. The customer option 2X
Euromap interface is not a pre mounted delivery option, it must be complimented with a
safety relay, not included in the option kit from ABB.
NOTE!
The 2X Euromap interface (Option 671-4) is an upgrade option and demands a pre installed
Euromap installation, described in section Installation of Euromap and SPI on page 123.
NOTE!
The harness used when installing 2X Euromap is identical with the pre mounted Euromap 1
harness. Beware of the identical connection markings.

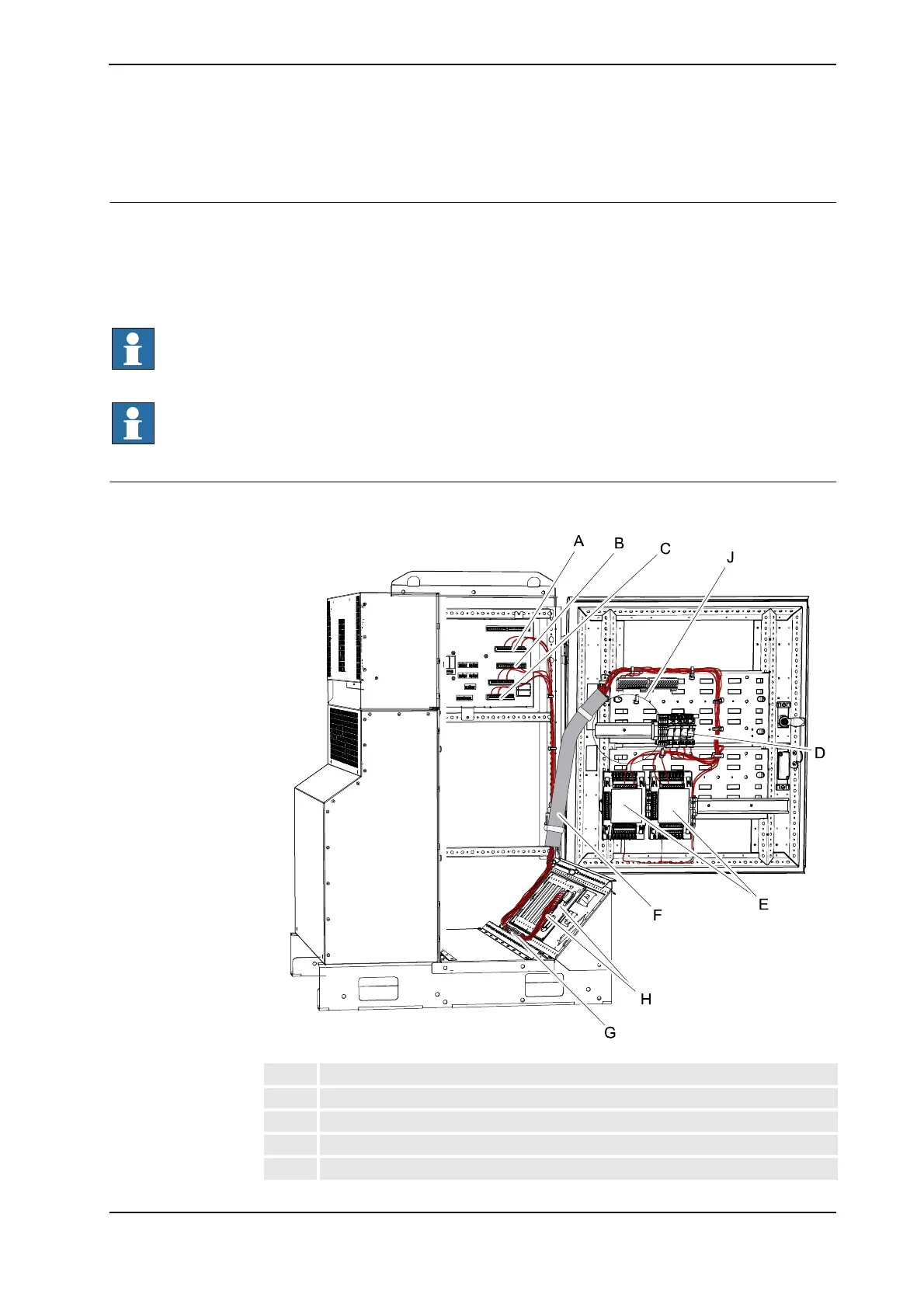

Location of Euromap 2X interfaces in the Single Cabinet Controller
xx0800000214
A Connector A21.X5, on panel board
B Connector A21.X1, on panel board
C Connector A21.X2, on panel board
D Relay 24K1 and relay 24K2
E 2X Euromap 67: Digital 24 VDC I/O
Continues on next page
