2 Installation and Commissioning, IRC5

2.5.4. Connection to serial channel connector

573HAC021313-001 Revision: K

Conversion of the RS232 channel

The RS232 channel can be converted to RS422 full duplex with an optional adapter (Option

714-1).

The RS422 enables a more reliable point to point communication (differential) over longer

distances, from RS232 = 15m to RS422 = 120m.

Action Info/Illistration

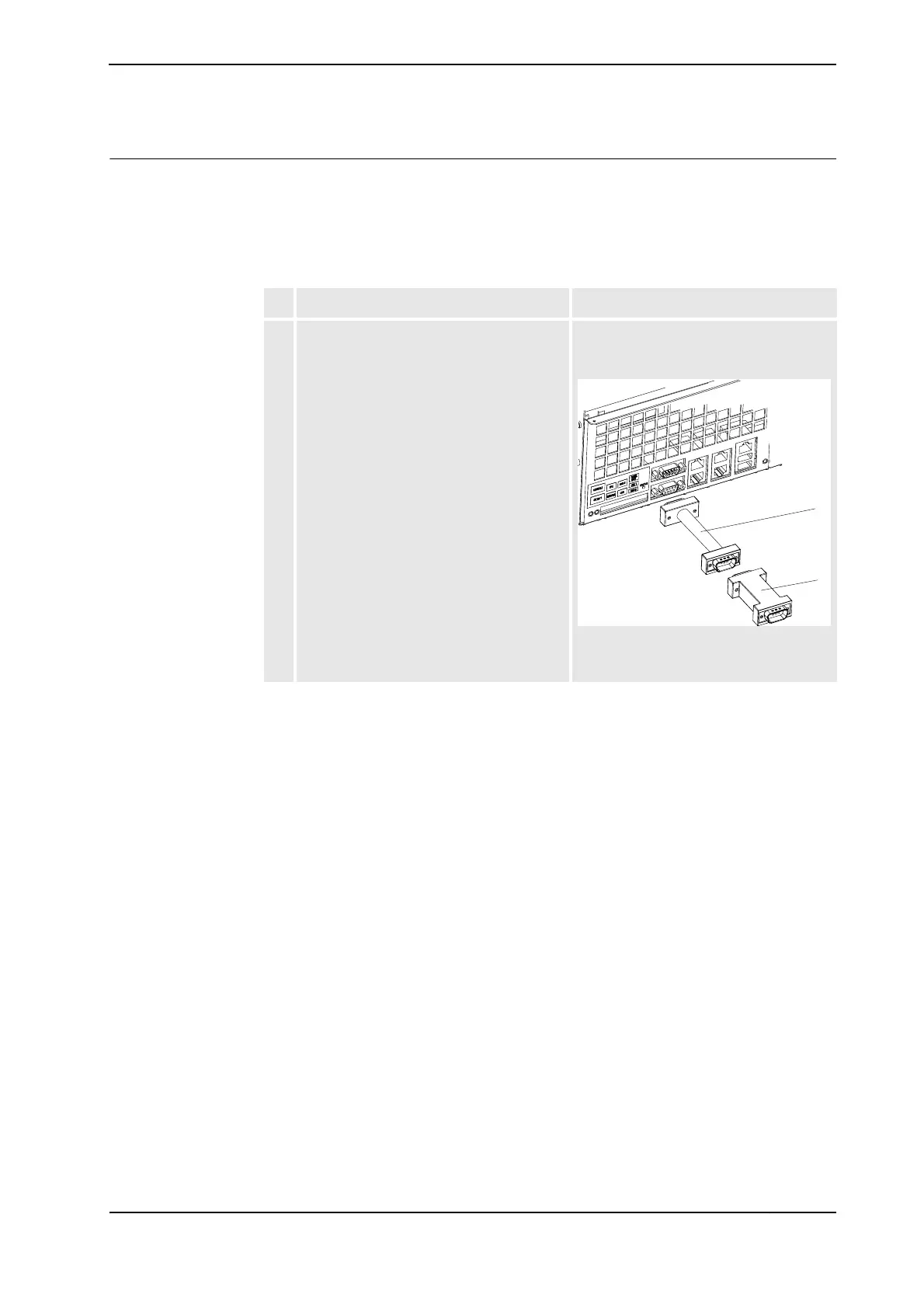

1. Connect the adapter to the serial channel

connector.

For computer unit DSQC639 a cable is

needed between the serial channel

connector and the adapter.

xx0600003075

•A: cable

• B: adapter

Continued
