2 Installation and Commissioning, IRC5
2.9.10. Installation of Hot plug
1453HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.

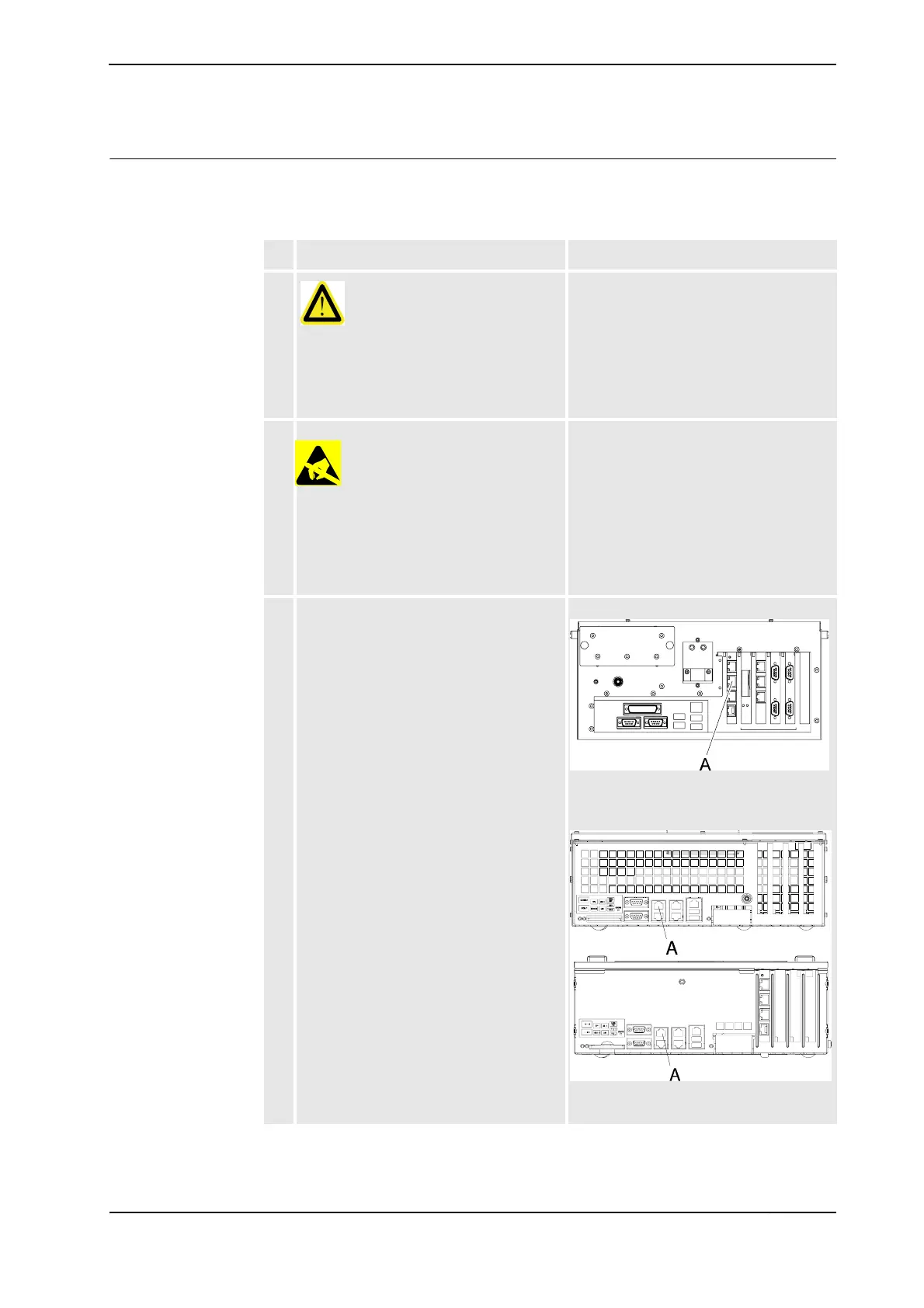

Procedure Single Cabinet Controller
The procedure below details how to install the hot plug button in the Single Cabinet
Controller.
Action Note/Illustration
1.
DANGER!
Before any work inside the cabinet, please
observe the safety information in section
DANGER - Make sure that the main power
has been switched off! on page 28.
2.
esd
WARNING!
The unit is sensitive to ESD, before
handling the unit please observe the safety
information in section WARNING - The unit
is sensitive to ESD! on page 29
3. Disconnect the cable from the ethernet
connector for FlexPendant on the
computer unit.
DSQC623:
xx0400000960
• A: Connector A32.A8
DSQC639:
xx0600002897
• A: FlexPendant port
Slot 1 Slot 2 Slot 3
Slot 4
Slot 5
Continued
Continues on next page
