2.4.4. Mounting the FlexPendant holder
3HAC021313-001 Revision: K44
© Copyright 2004-2008 ABB. All rights reserved.

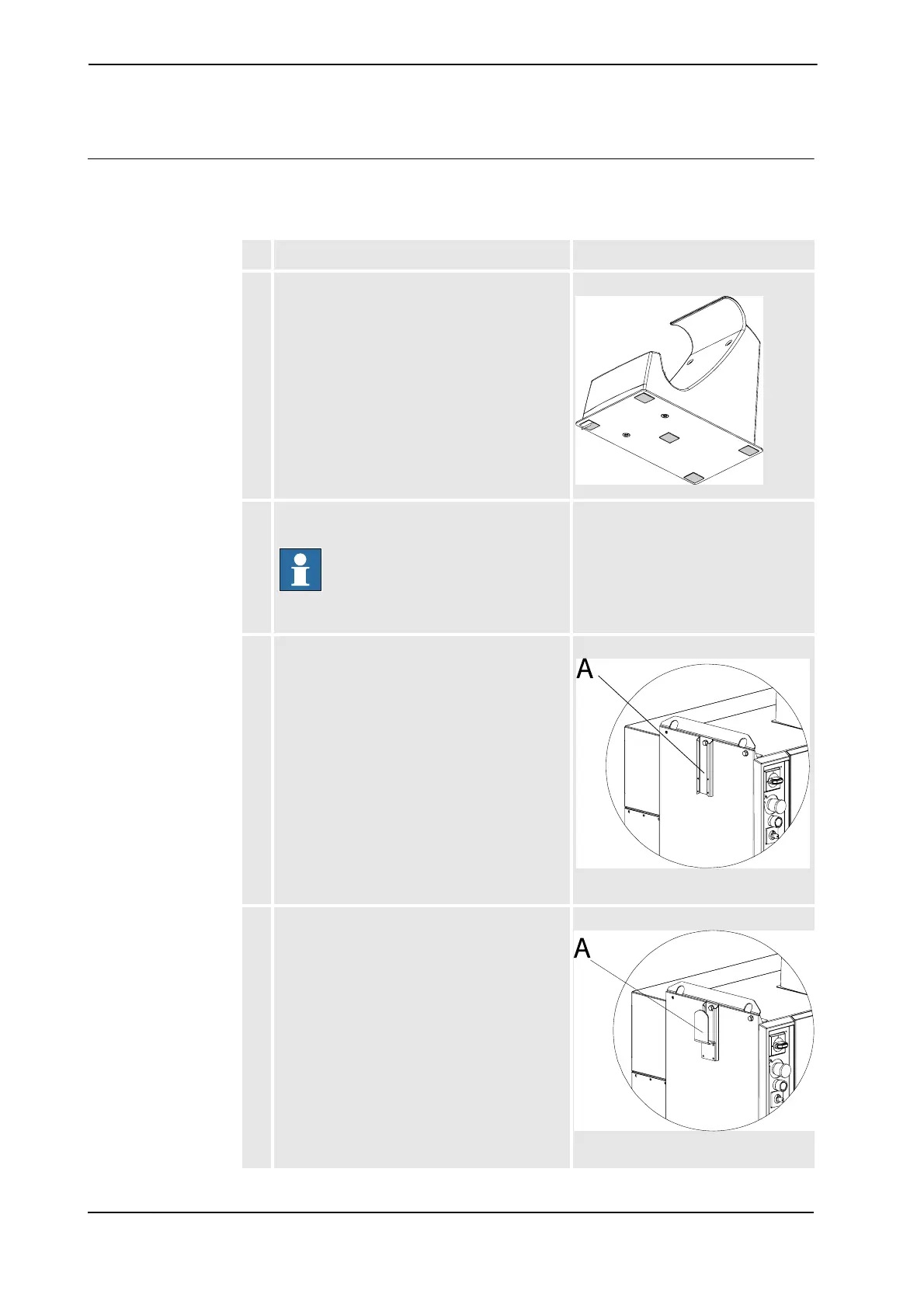

Procedure - On top of the control cabinet
The following procedure details how to mount the FlexPendant holder on top of the control
cabinet.
Action Note/illustration
1. Remove the protective liner from the tape.
xx0500002546
2. Press the mounting plate with FlexPendant
holder against the top of the control cabinet.
NOTE!
The surface must be clean and dry.
3. Mount the cable bracket holder on the side of
the cabinet.
Use one of the excisting M8 screws.
xx0700000240
• A: Cable bracket holder
4. Mount the cable bracket on the cable bracket
holder using enclosed Fastite screws (4 pcs).
xx0700000241
• A: Cable bracket
