4 Repair activities, controller IRC5
4.7. Replacement of control system fan
3HAC021313-001 Revision: K216
© Copyright 2004-2008 ABB. All rights reserved.
Refitting of control system fan
The procedure below details how to refit the control system fan.

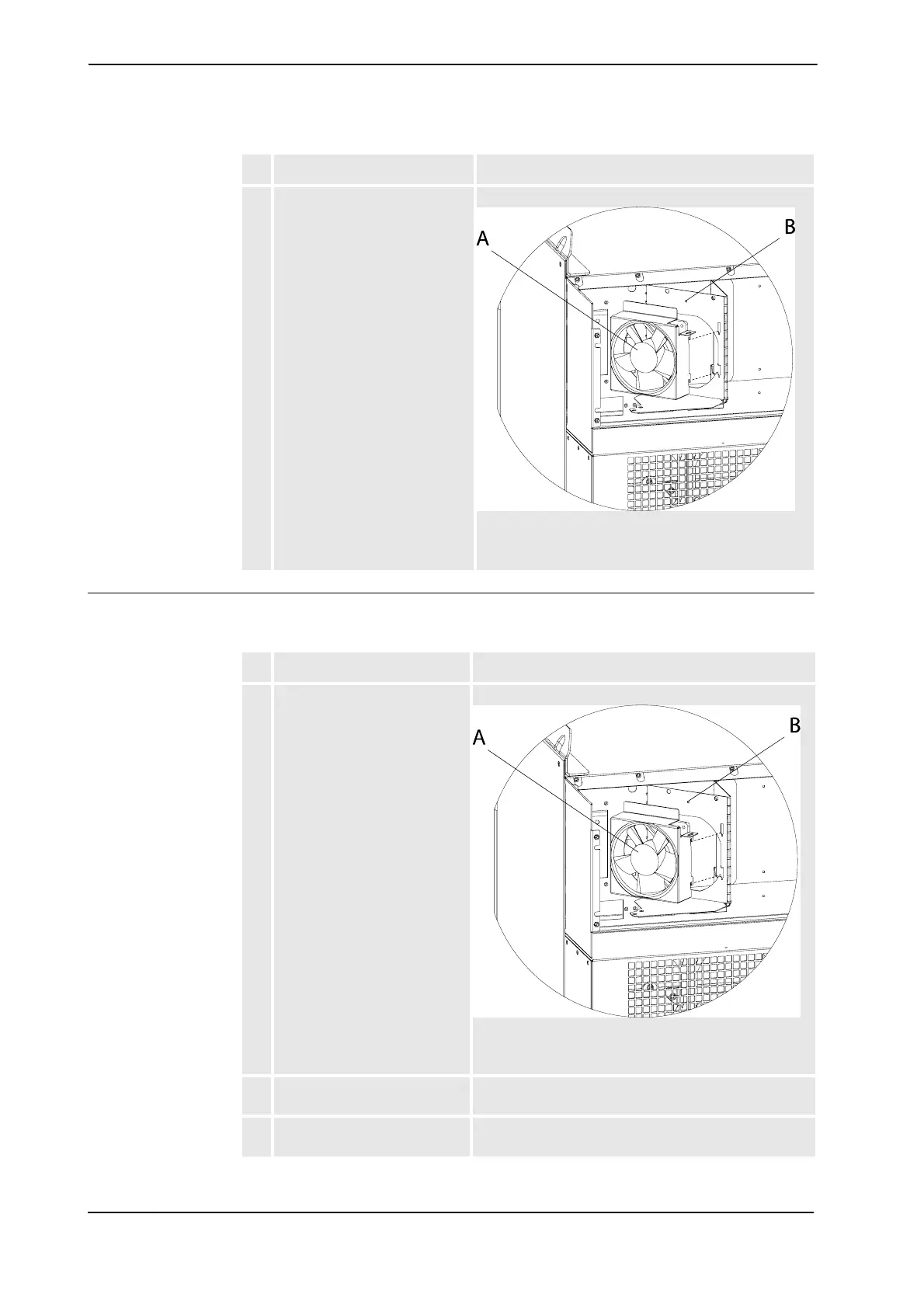

6. Push the fan upwards, and pull
it out.
xx0700000417
•A: fan
• B: screw
Action Note/Illustration
Action Note/Illustration
1. Put the fan in place, and push
it down.
xx0700000417
•A: fan
• B: screw
2. Refit the screw (item B in
image above).
3. Reconnect the connector to
the fan.
Continued
Continues on next page
