ABB IRC5 User Manual

2 Installation and Commissioning, IRC5
2.9.8. Upgrading and installation of 2X Euromap interface (Option 671-4)
1373HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
Adapter Euromap 67

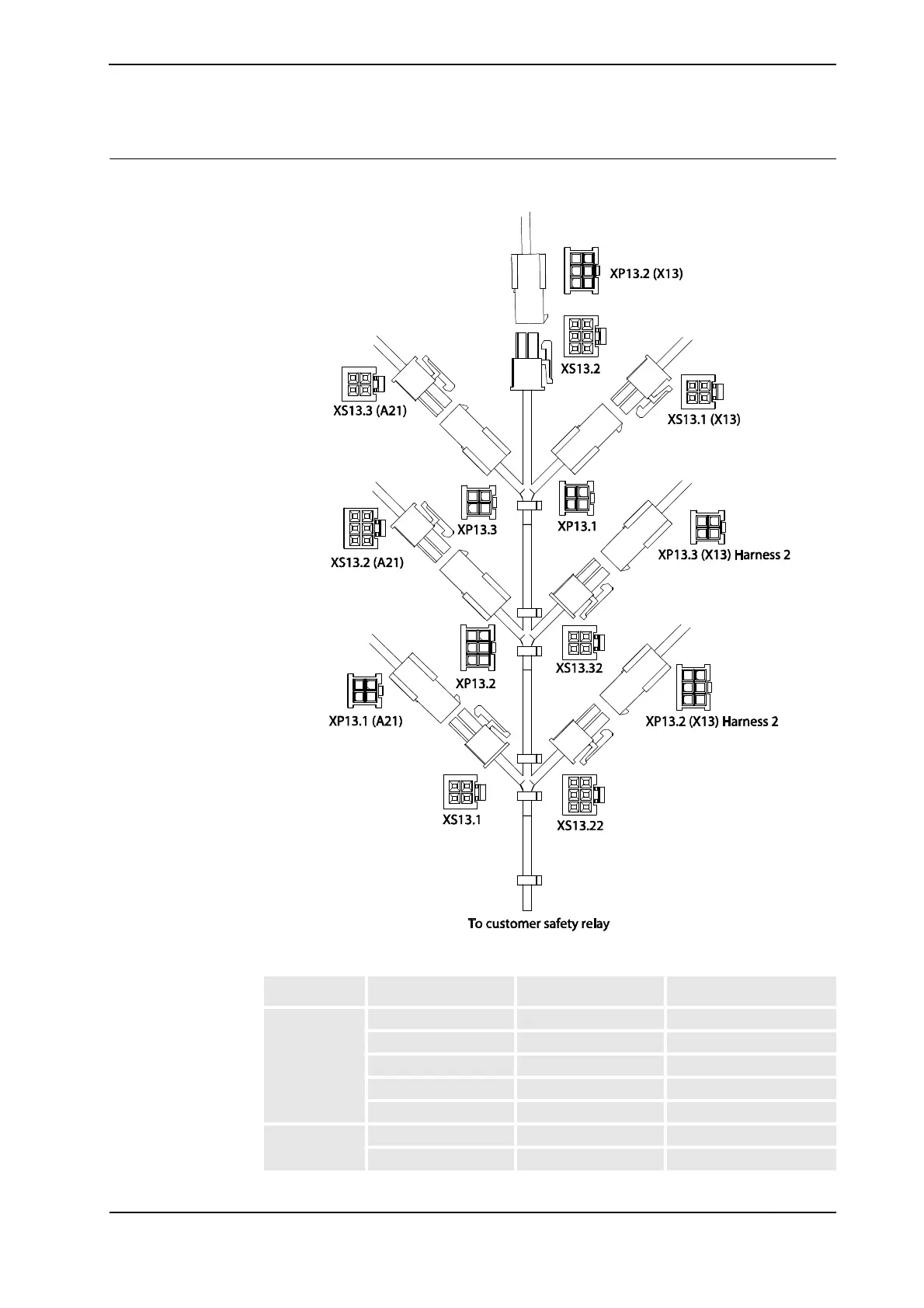

The figure below shoes the connections for the Euromap 67 adapter 3HAC032370-001.
xx0800000216
Wiring adapter
Harness Connection From-To Connection
1 XS13.1 X13-Adapter XP13.1
XP13.2 X13-Adapter XS13.2
XP13.3 X13-Adapter XS13.1 (X13 Harness 2)
XP13.1 A21-Adapter XS13.1
XS13.3 A21-Adapter XP13.3
2 XP13.2 X13-Adapter XS13.22
XP13.3 X13-Adapter XS13.32
Continued
Continues on next page
