6 Spare Parts
6.1.1. Single Cabinet Controller
3HAC021313-001 Revision: K324
© Copyright 2004-2008 ABB. All rights reserved.
Computer unit DSQC 623 parts

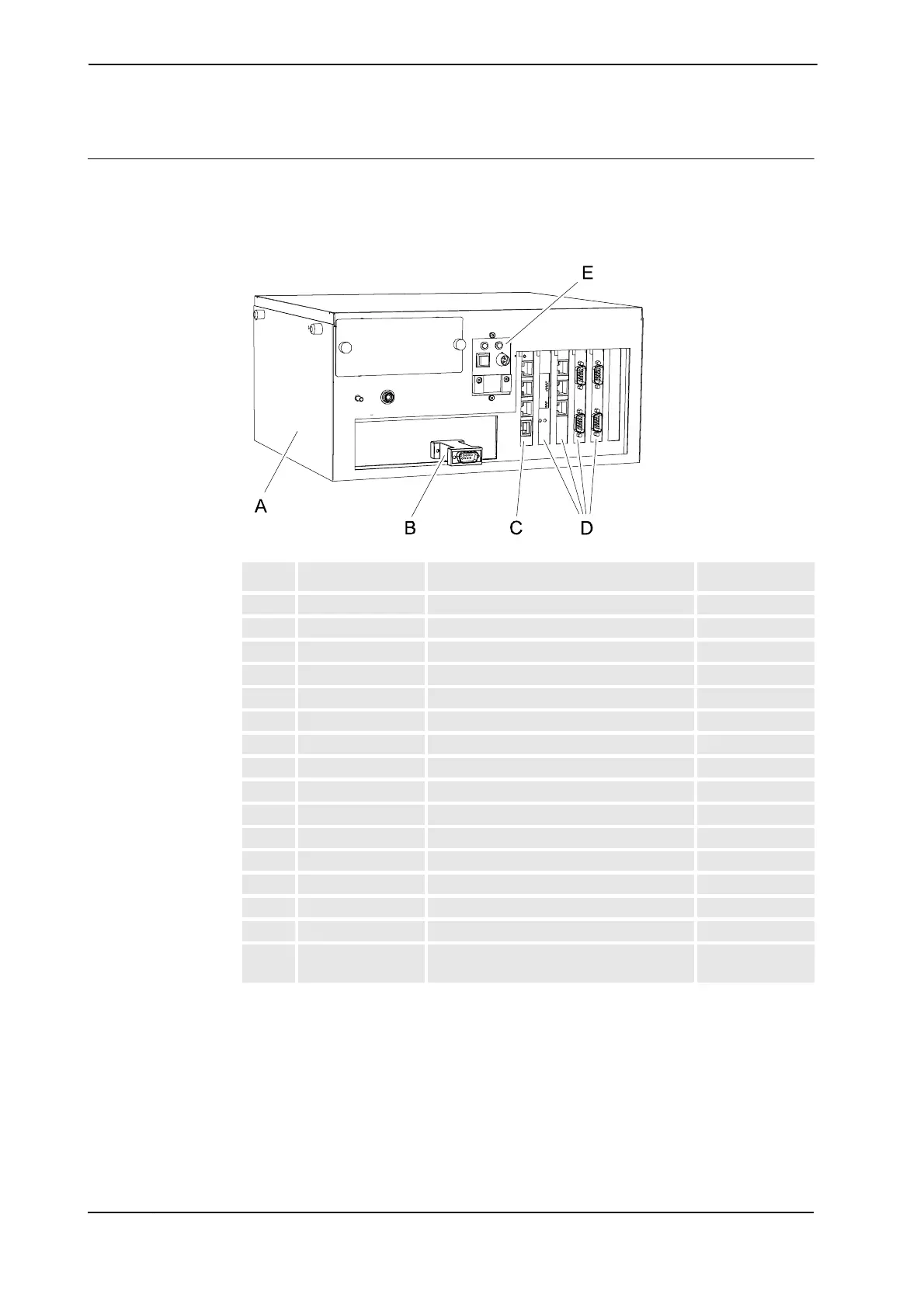

The illustration below shows the placement of the computer unit parts in the recommended
spare part list.
xx0600002682
Spare part no. Description Note
A 3HAC020929-006 Computer AC plus
A 3HAC020929-007 Computer BD plus
3HNE00025-1 Circuit board RIO
B 3HAC14944-1 RS-232/422 converter
C 3HAC12816-1 Robot com. card DSQC 602
D 3HAC15639-1 Ethernet card DSQC 612
D 3HAC023047-001 Profibus-DP adapter DSQC 637
D 3HNE00009-1 Profibus DP Slave unit
D 3HAC11819-1 Interbus slave with Cu DSQC 529
D 3HNE00006-1 Interbus-S Unit
D 3HAC5579-1 InterBus-S adap. DSQC 512
D 3HAC12817-1 DeviceNet M/S DSQC 603
E 3HAC021629-001 LED board with cover DSQC 631
3HAC020988-006 Fan right inside computer
3HAC020988-007 Fan left inside computer
3HAC020464-001 Computer power supply DSQC 625,
inside computer
