2 Installation and Commissioning, IRC5
2.9.8. Upgrading and installation of 2X Euromap interface (Option 671-4)
3HAC021313-001 Revision: K138
© Copyright 2004-2008 ABB. All rights reserved.
Wiring relay

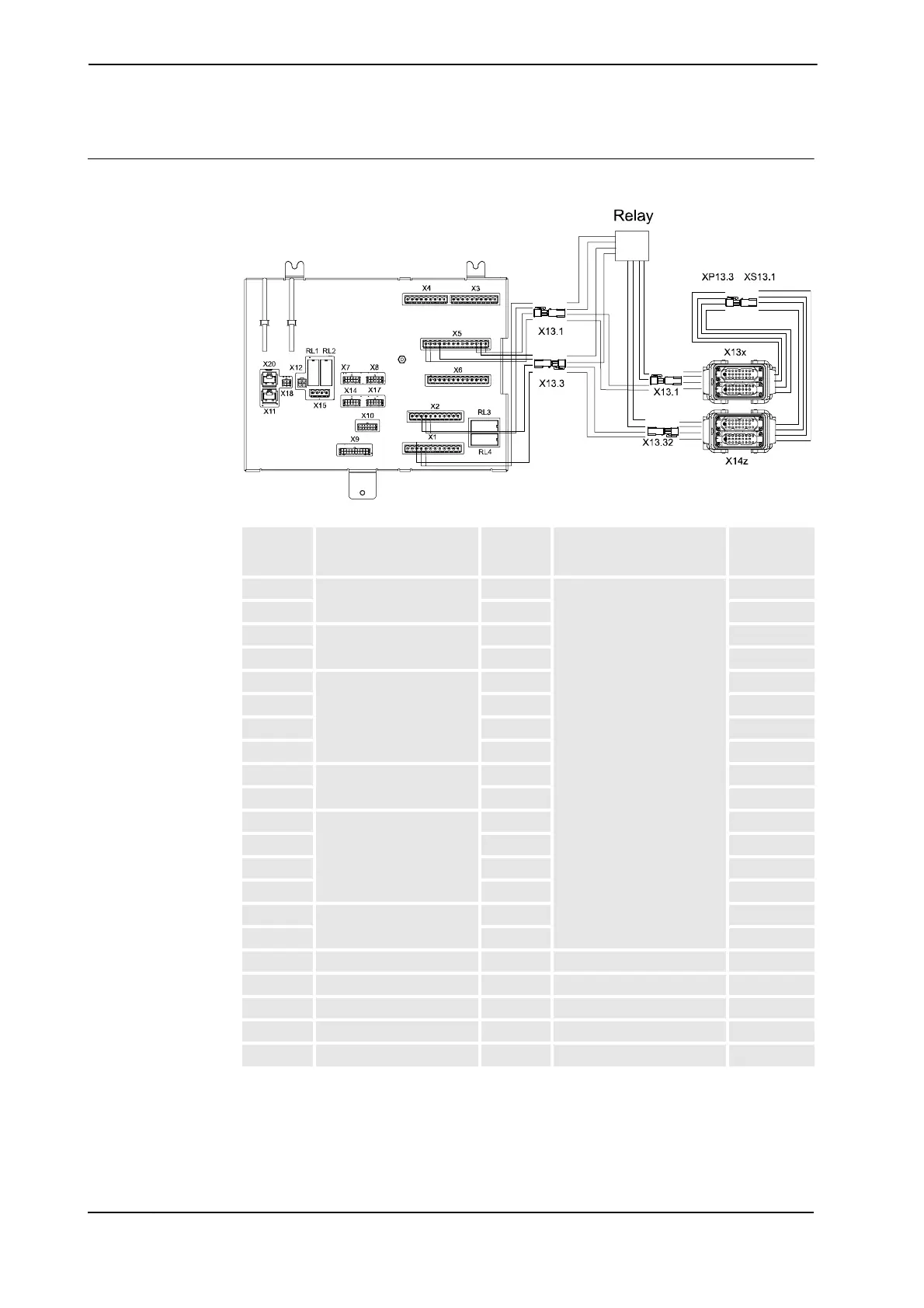

The figure below shoes the connections for the Euromap safety loop.
xx0800000219
Wire No.
Connection point A
Designation
Term
Connection point B
Designation
Term
1200 XS13.1 1 Safety relay 11
1201 2 21
1204 XP13.2 1 B1
1205 2 A1
1208 XS13.2 1 41
1209 2 31
1210 3 32
1211 4 42
1212 XP13.3 1 12
1213 2 22
1216 XS13.22 1 61
1217 2 51
1218 3 52
1219 4 62
1220 XS13.32 1 A2
1221 2 B2
1002 XT8:1 Socket
1019 XT8:3 Socket
1032 XT31 1 or 2
1046 XT31 5 or 6
1055 XT31 5 or 6
