2 Installation and Commissioning, IRC5

2.4.4. Mounting the FlexPendant holder

453HAC021313-001 Revision: K

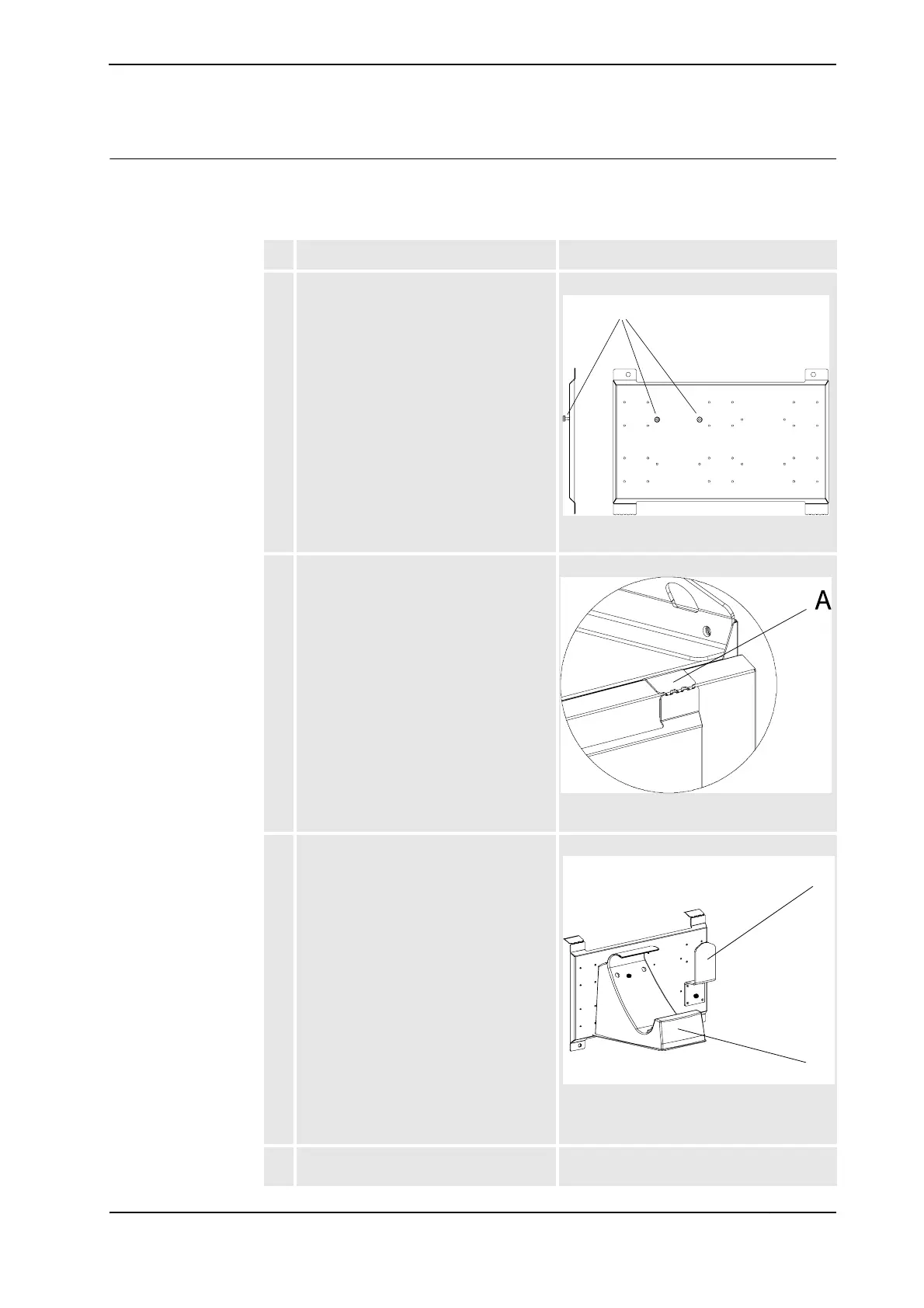

Procedure - On the control cabinet door

The following procedure details how to mount the FlexPendant holder on the control cabinet

door.

Action Note/Illustration

1. At assembly of FlexPendant holder on the

mounting plate start with fasten the

Fastite screws (2 pcs) to the mounting

plate.

xx0800000048

• A: Fastite screw (2 pcs)

2. Bend the two flanges on the mounting

plate to match the upper shape of the

door.

xx0700000242

• A: Flange

3. Mount the FlexPendant holder and cable

bracket to the mounting plate with the

enclosed Fastite screws (6 pcs).

xx0700000244

• A: Cable bracket

• B: FlexPendant holder

4. Remove the protective liner from the tape

on the mounting plate.

Continued

Continues on next page
