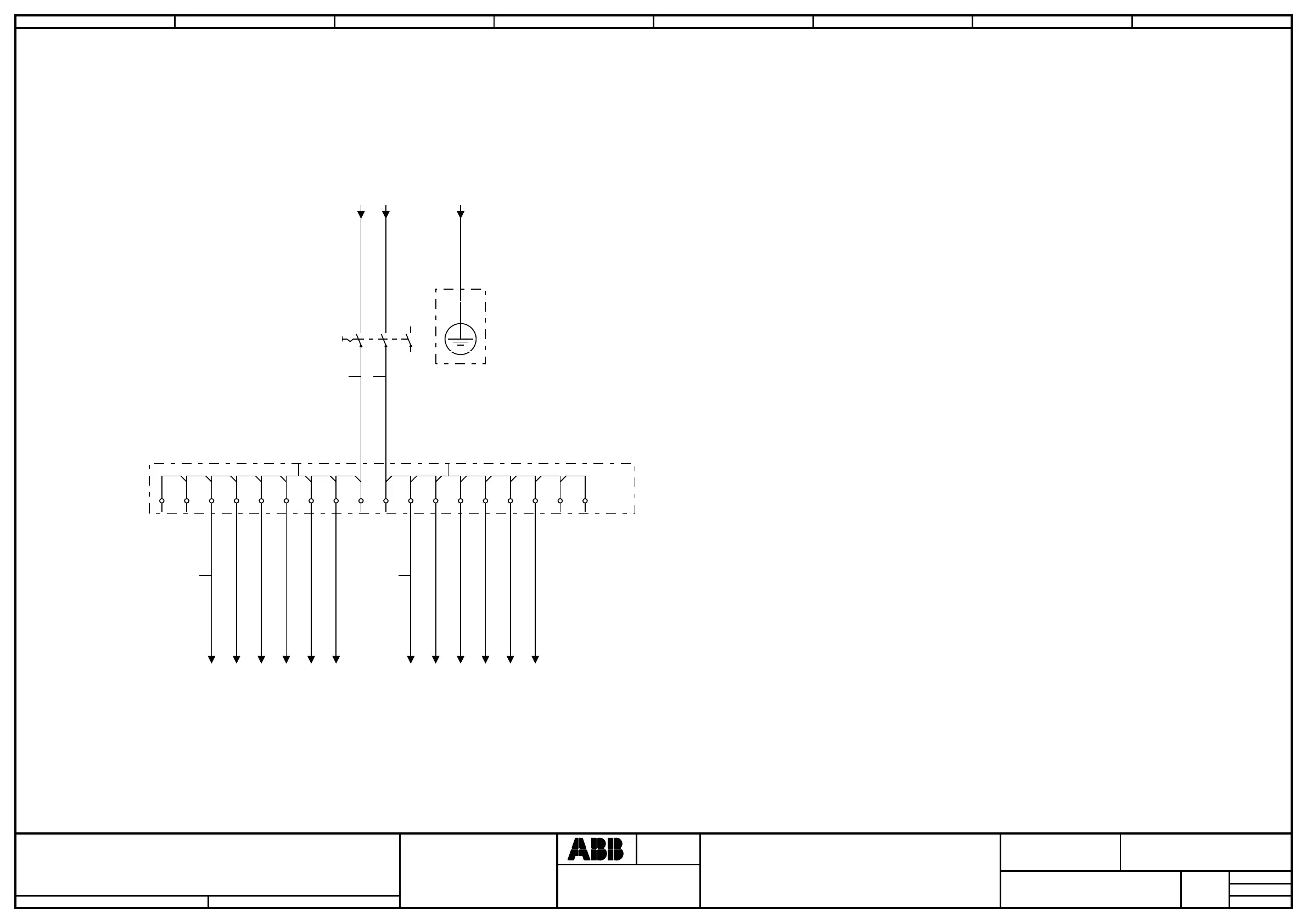

MAINS CONNECTION DUAL CABINET
Location:
Plant:
=
+
+
Sublocation:
CAB.DC
CM
Document no.
Next
Rev. Ind
03
Lab/Office:
Status:
CONTROL SYS. IRC5 M2004 DESIGN 06
Approved
2008-07-17
1 2 3 4 5 6 7 8
MAIN SWITCH
-Q2
L1
T1
L2
T2
L3
T3
-173 AWG16 BK -174 AWG16 BK
-153 AWG16 BK
JUMPER JUMPER
-152 AWG16 BK
/33.4 / 230V AC1;1
/35.3 /34.7 / 230V AC1;4
/33.4 / 230V AC2;1
/35.3 /34.7 / 230V AC2;4
L1L1L1L1 L2L2 L2L2L1L1L1L1L1L1
CROSS CONNECTION 230V
-XT16
L1L1 L2L2 L2L2 L2L2 L2L2
/35.1 /34.5 / 230V AC1;3 /35.1 /34.5 / 230V AC2;3
230V AC1_DM / /85.7 230V AC2_DM / /85.7 GND_DM / /85.7
/35.7 /34.2 / 230V AC1;2 /35.7 /34.2 / 230V AC2;2
/35.4 / 230V AC1;5 /35.4 / 230V AC2;5 /35.6 / 230V AC1;6 /35.6 / 230V AC2;6
L1L1L1L1L1L1 L2L2 L2L2 L2L2
